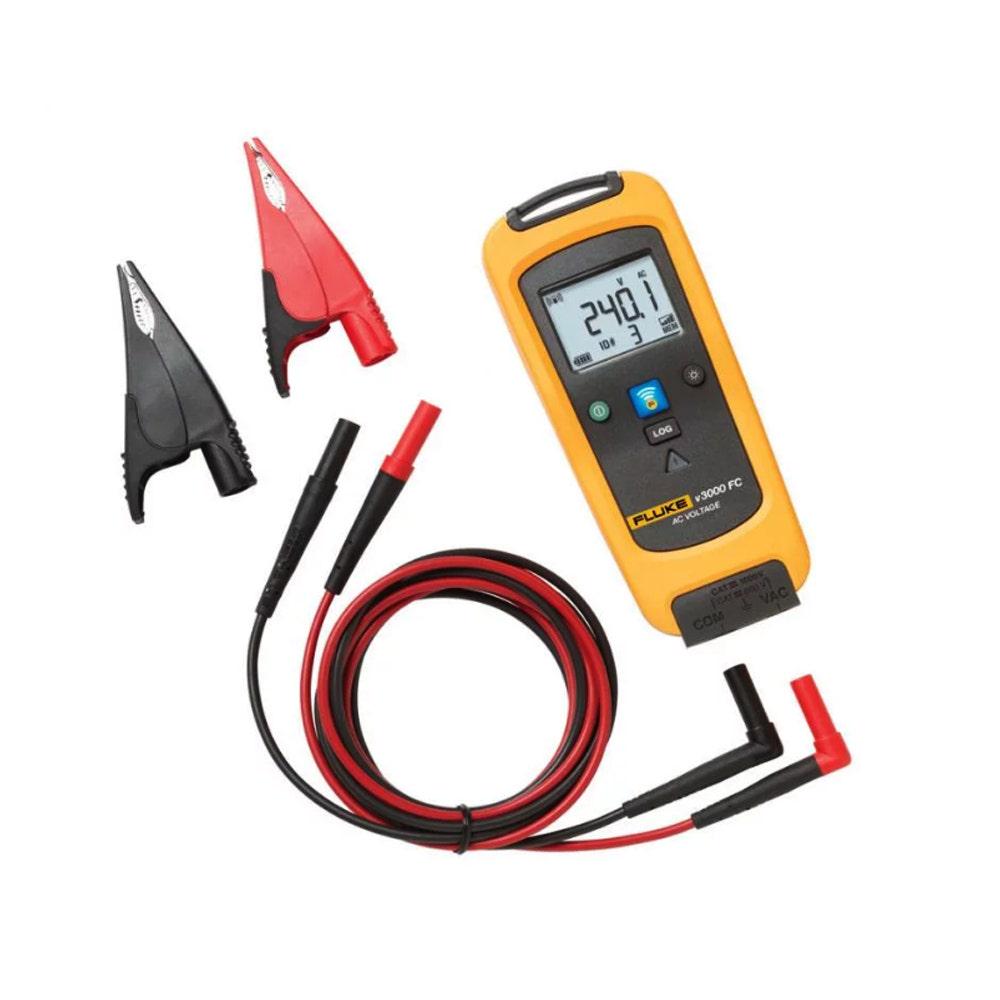

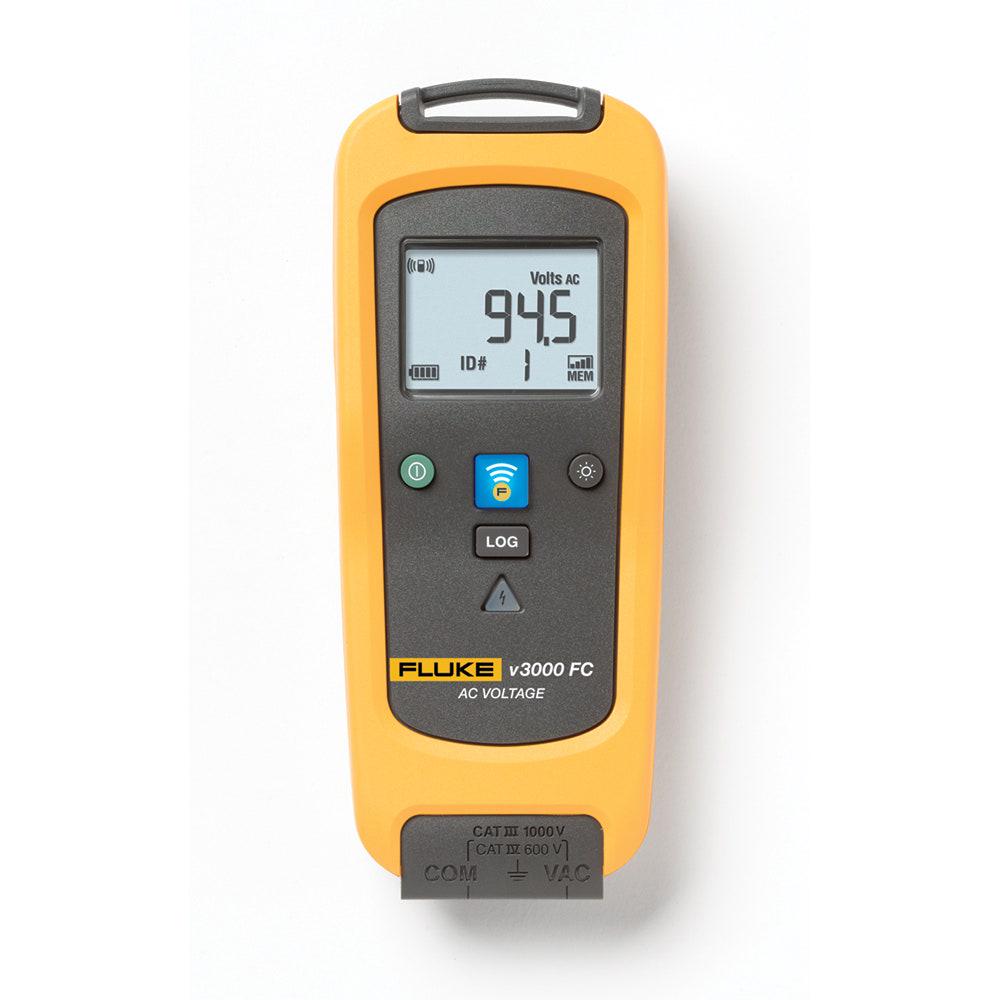

FLUKE v3000 FC Wireless AC Voltage Kit FLUFLKV3000FC

Features

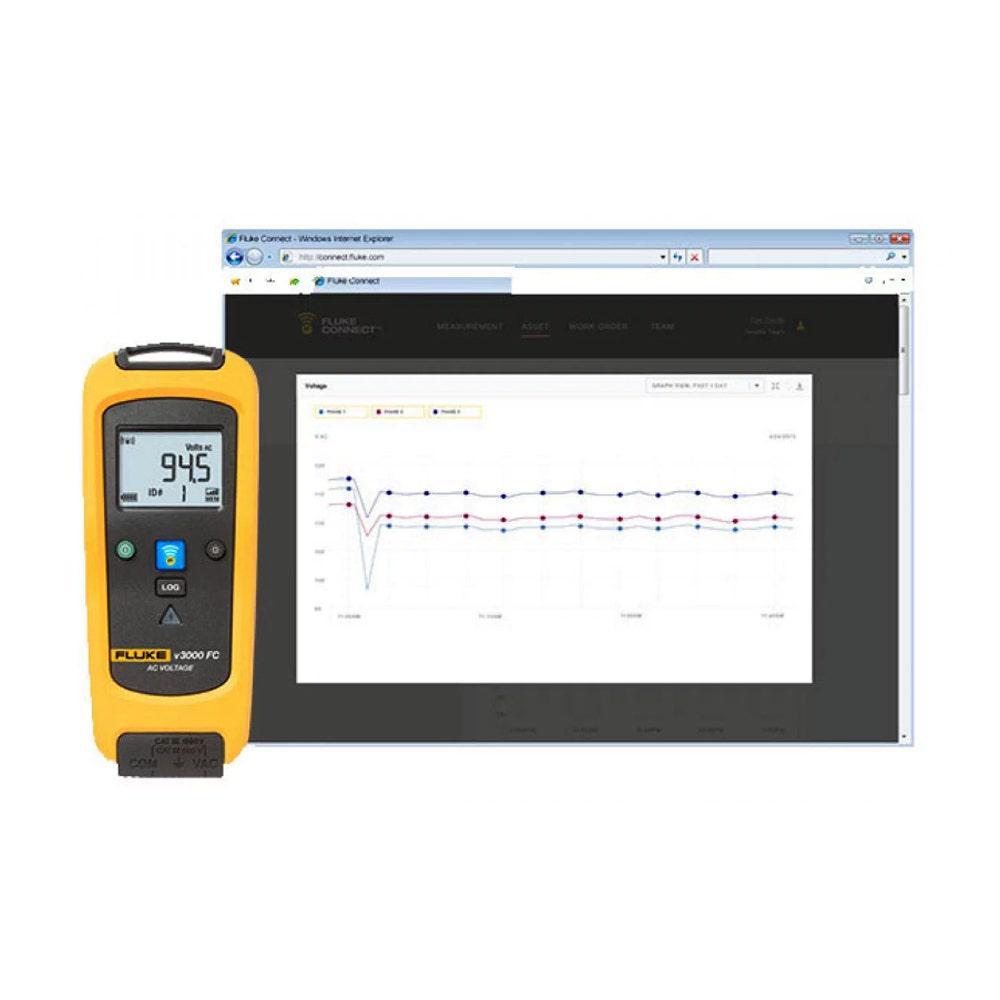

• Part of the Fluke Connect wireless test tools
• View results up to 20 meters away on the 3000 FC Wireless Digital Multimeter
• Supports measurements in three-phase systems
• Use multiple modules for various measurements

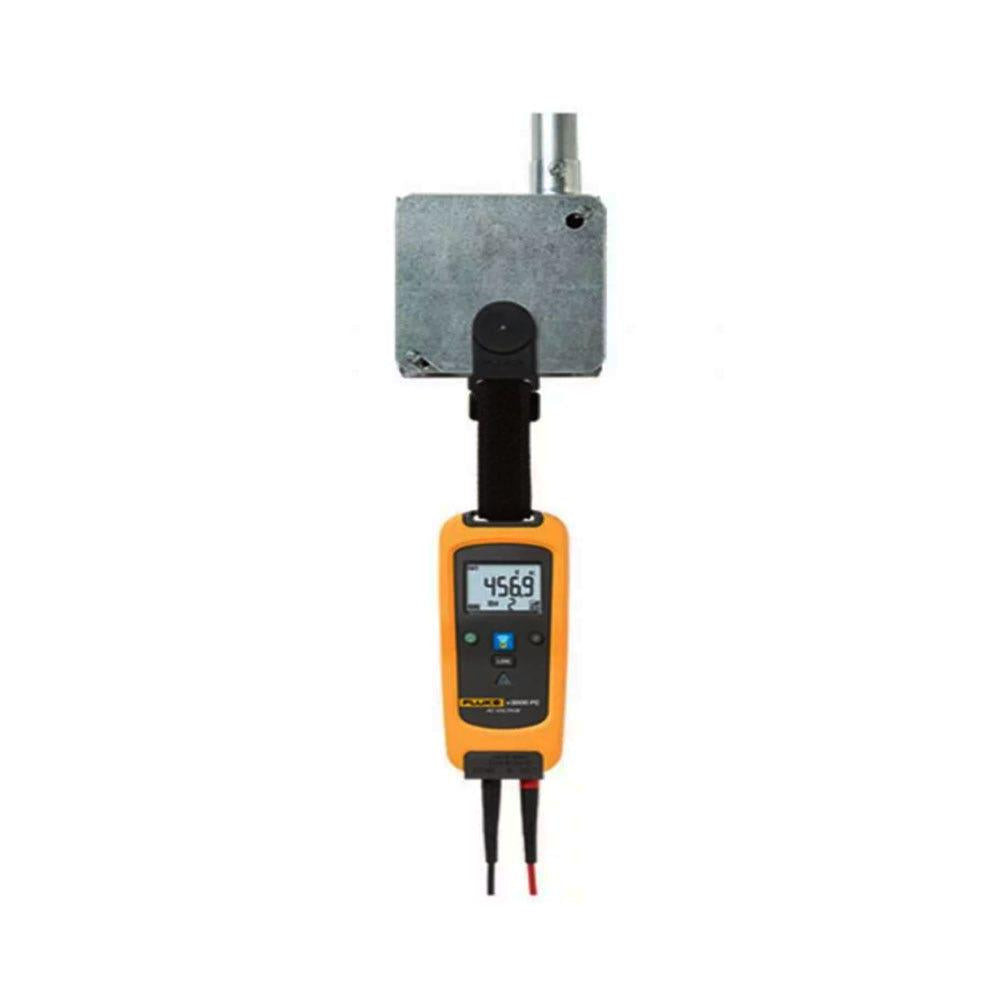

• View readings through closed electrical panels from short distances
• Records up to 65,000 time-stamped min/max/avg readings
• Increased safety by viewing readings away from test points
• Measurements possible on moving machinery
• Measures AC and DC voltage up to 1000 V
• AC and DC current with 0.01 mA resolution
• Continuity, resistance, diode test, capacitance, and frequency measurements
• MIN/MAX recording capability
• CAT III 1000 V, CAT IV 600 V; IP54 rated
• Logging function saves measurements for analysis

Specifications

• AC Voltage Range: 600.0 mV to 1000 V, Accuracy: 1.0% + 3 (45 Hz to 500 Hz)
• DC Voltage Range: 600.0 mV to 1000 V, Accuracy: 0.09% + 2
• Continuity Resistance Range: 600.0 m? to 50.00 M?, Accuracy: 0.5% + 2
• AC Current Range: 60.00 mA to 400.0 mA, Accuracy: 1.5% + 3
• DC Current Range: 60.00 mA, Accuracy: 0.5% + 3
• Frequency Range: 99.99 Hz to 99.99 kHz, Accuracy: 0.1% + 1
• Display: LCD with 6000 counts, update rate 4/sec
• Battery: Three AA Alkaline, life 250 hours minimum
• RF communications: 2.4 GHz ISM Band, range up to 20 m unobstructed
• Operating temperature: -10°C to 50°C
• Altitude: Operating 2000 m, Storage 12000 m
• Ingress Protection (IP) rating: IP54
• Safety compliance: ANSI/ISA 61010-1, UL 61010-1
• Certifications: CSA, FCC, CE
