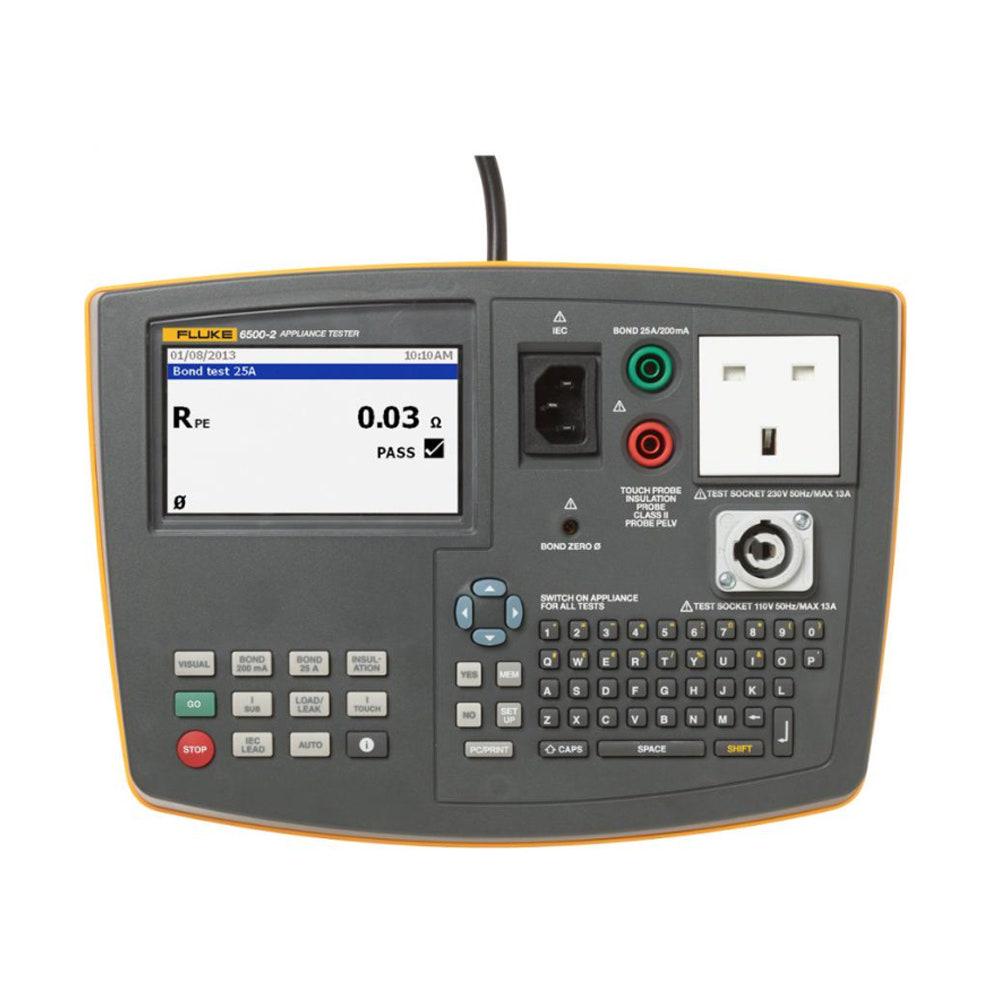

FLUKE V 6500-2 Portable Appliance Tester w. RCD Test Capability FLU6500-2

Features

• Designed for high-volume testing of portable appliances
• One-touch operation for pre-set test routines
• User-definable test routines available

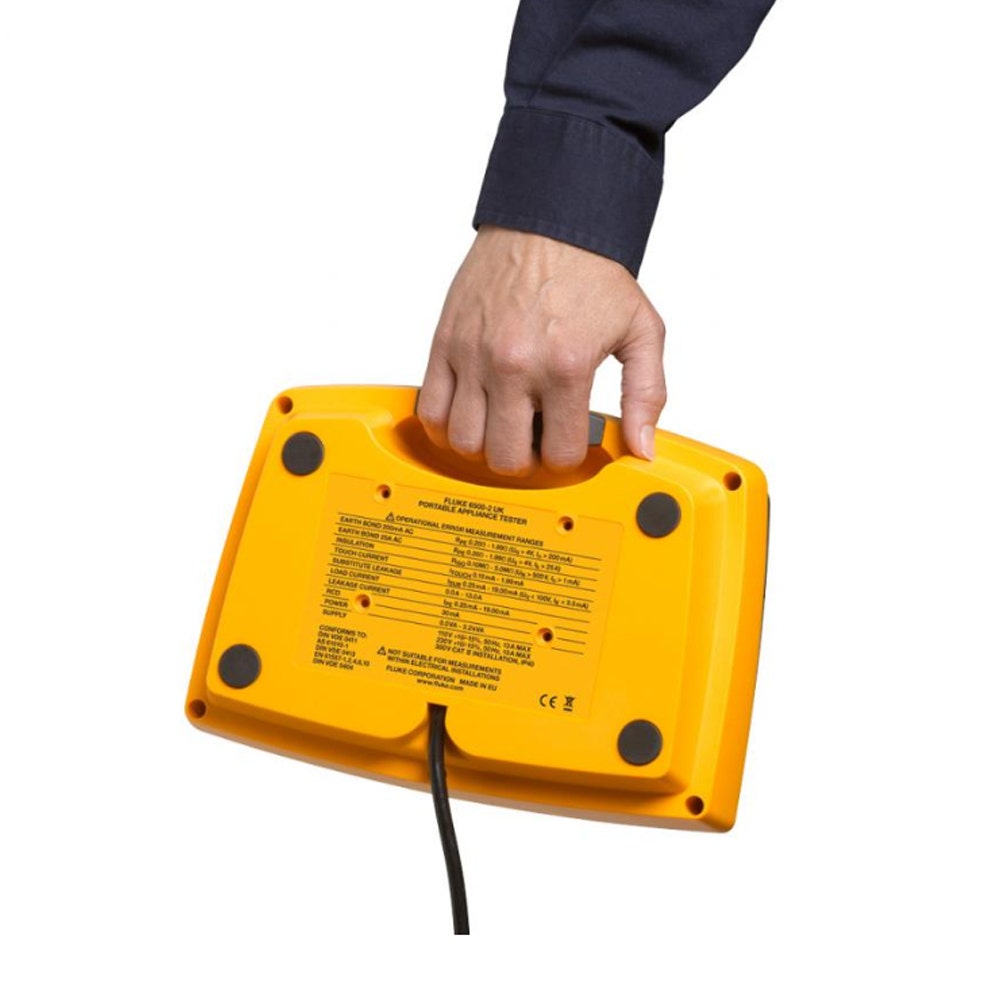

• Lightweight at approximately 3 kg for easy portability

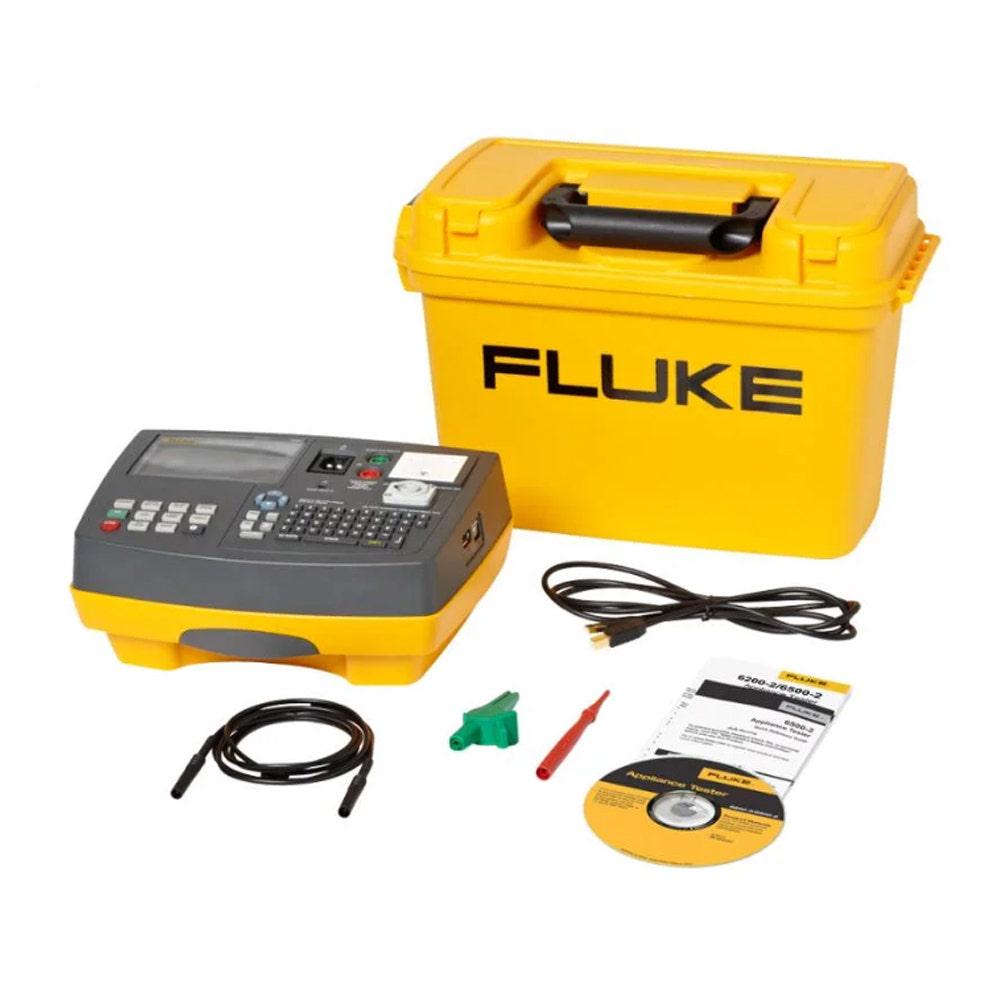

• Includes a hard rugged carrying case for protection and storage
• Compact design with Fluke's renowned durability
• QWERTY keyboard for quick data entry

Specifications

• Power-on test: Displays reversed L-N, missing PE; measures mains voltage and frequency
• Display range: 90 V to 264 V; Accuracy at 50 Hz: ±(2% + 3 counts)
• Input impedance: > 1 M // 2.2 nF; Maximum input mains voltage: 264 V
• Earth bond test (Rpe): Display range: 0 to 19.99; Accuracy: ±(5% + 4 counts)
• Test current: 200 mA AC -0% +40%; 10 A AC ±20% into 25 m at 230 V
• Open circuit voltage: > 4 V AC
• Insulation test (Riso): Display range: 0 to 299 M; Accuracy: ±(5% + 2 counts)
• Test voltage: 500 V DC -0% + 25% at 500 k load
• Touch current test: Display range: 0 to 1.99 mA AC; Accuracy: ±(4% + 2 counts)
• Substitute leakage current test: Display range: 0 to 19.99 mA AC; Accuracy: ±(2.5% + 3 counts)
• Load/leakage test: Load current display range: 0 A to 13 A; Accuracy: ±(4% + 2 counts)
• RCD test: Trip current operational error: ±10%; Nominal: 30 mA; Accuracy: ±5%
• Operating temperature: 0 to 40 °C; Relative humidity: Non-condensing up to 95%
• Safety rating: Complies with EN61010-1 3rd edition, CAT II, 300 V
• Size (L x W x H): 200 x 275 x 114 mm
• Weight: 3.13 kg
• Power supply: 230 V +10% -15%, 50 Hz ±2 Hz
• Storage temperature: -10 to 60 °C
• Operating altitude: 0 up to 2000 m
• Sealing: IP-40 (enclosure), IP-20 (connectors)
• EMC: Complies with EN61326-1
