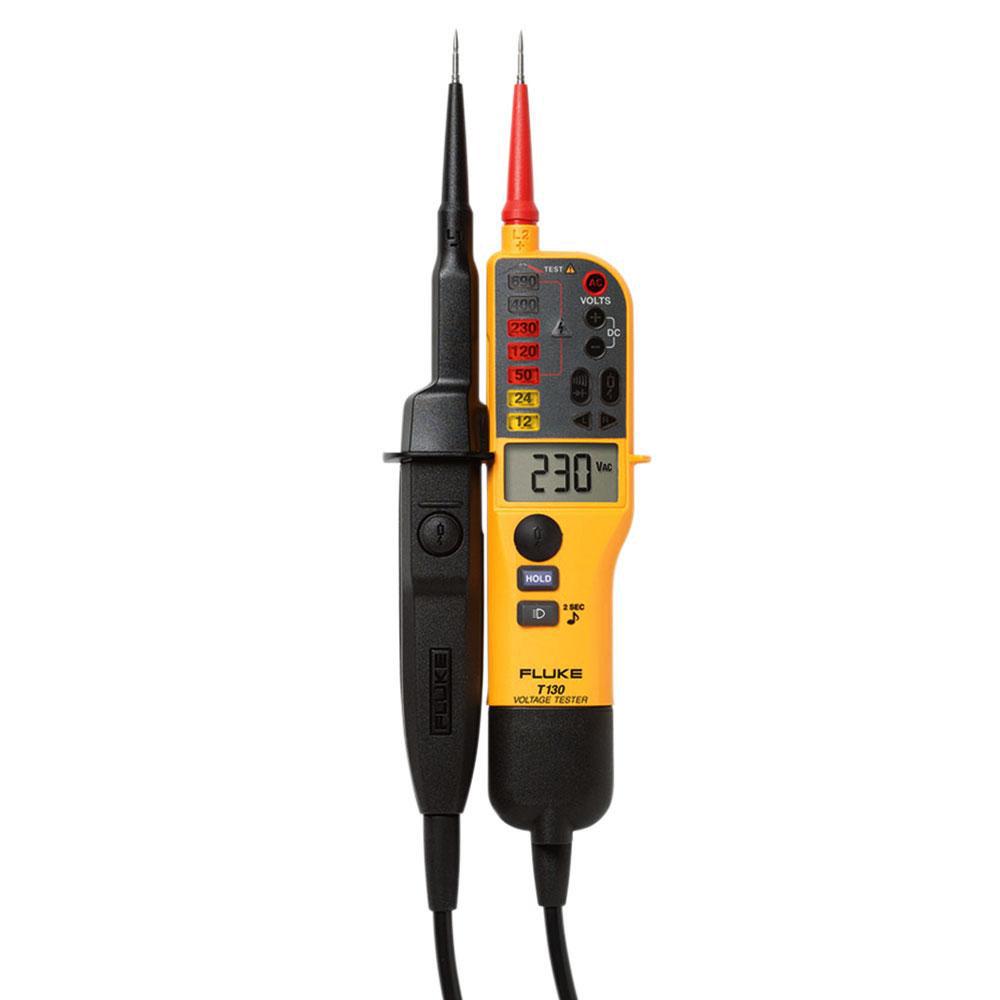

FLUKE Two-Pole Voltage and Continuity Testers FLUT130

Features

• Large, user-friendly buttons
• Bright backlit LED indicator and LCD display
• Display hold function for easy viewing
• Clear audible and vibrating voltage indicators
• Dual insulated cable tested to 3x required bend angle for durability
• Switchable load to avoid ghost voltage display
• Backlit graduated scale and indicators
• Built-in electric torch for dark areas
• Audio on/off feature for quiet testing
• Improved probe docking for secure storage
• Phase rotation indicator for 3-phase systems
• Single-pole phase test for quick live conductor identification
• Push-on probe tips and tip protector included
• Tip protector assists with UK electrical safety outlets
• Low battery indicator

Specifications

• Voltage AC/DC: 6V - 690V
• Continuity: 0 - 400 k
• Frequency: 0 / 40 - 400 Hz
• Phase rotation: 100 V - 690 V
• Resistance measurement: Up to 1999
• Response Time (LED indicator): Not specified
• 200 k input impedance: Current draw 3.5 mA @ 690 V
• Current draw 1.15 mA @ 230 V
• 7k input impedance (with load buttons pressed): Current draw 30 mA @ 230 V
• Safety rating: CAT II 690V, CAT III 600V
• IP rating: IP64
• Power requirement: 2 x AAA batteries
• Part No: FLUT130
• Barcode: 95969599696
• Brand: Fluke
• Warranty: 3 Year
• Net Weight: 0.28 kg
• Product Length: 260 mm
• Product Width: 70 mm
• Product Height: 38 mm
