FLUKE Technician's Combo Kit FLU116 62MAX-PLUS

Features

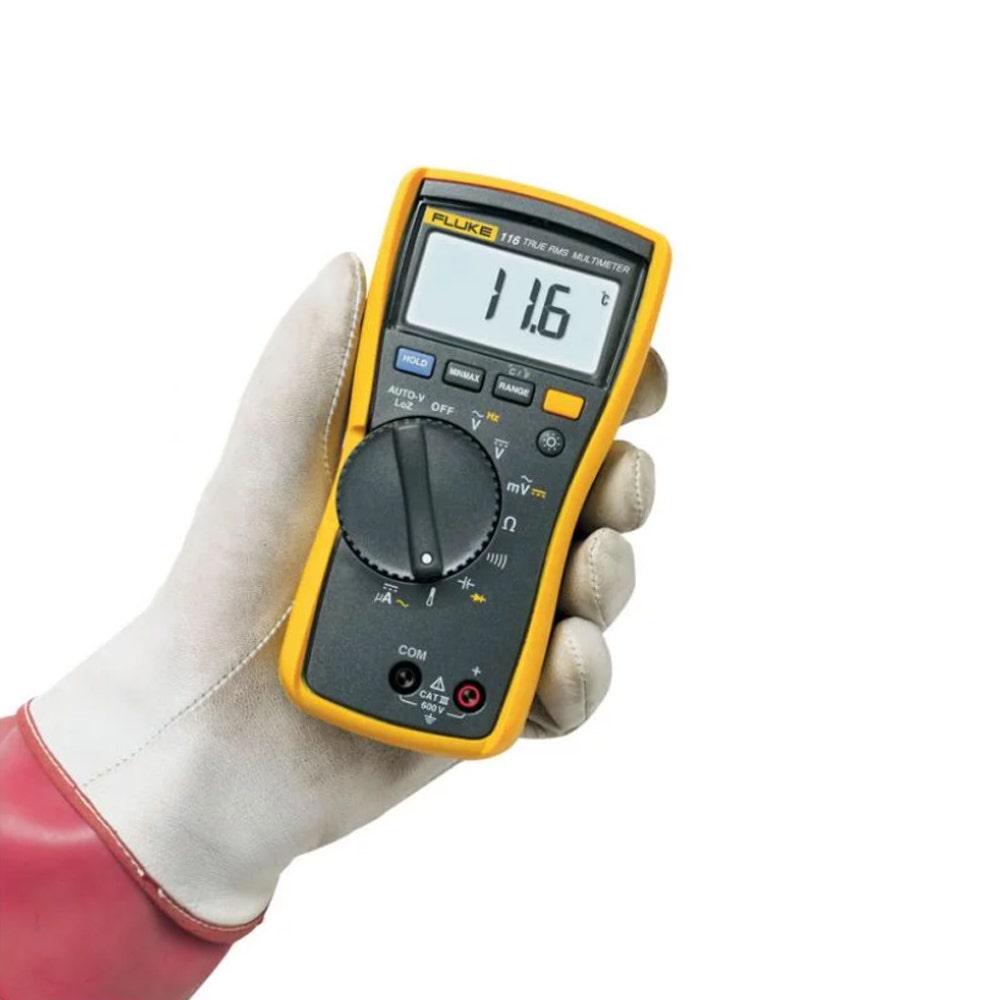

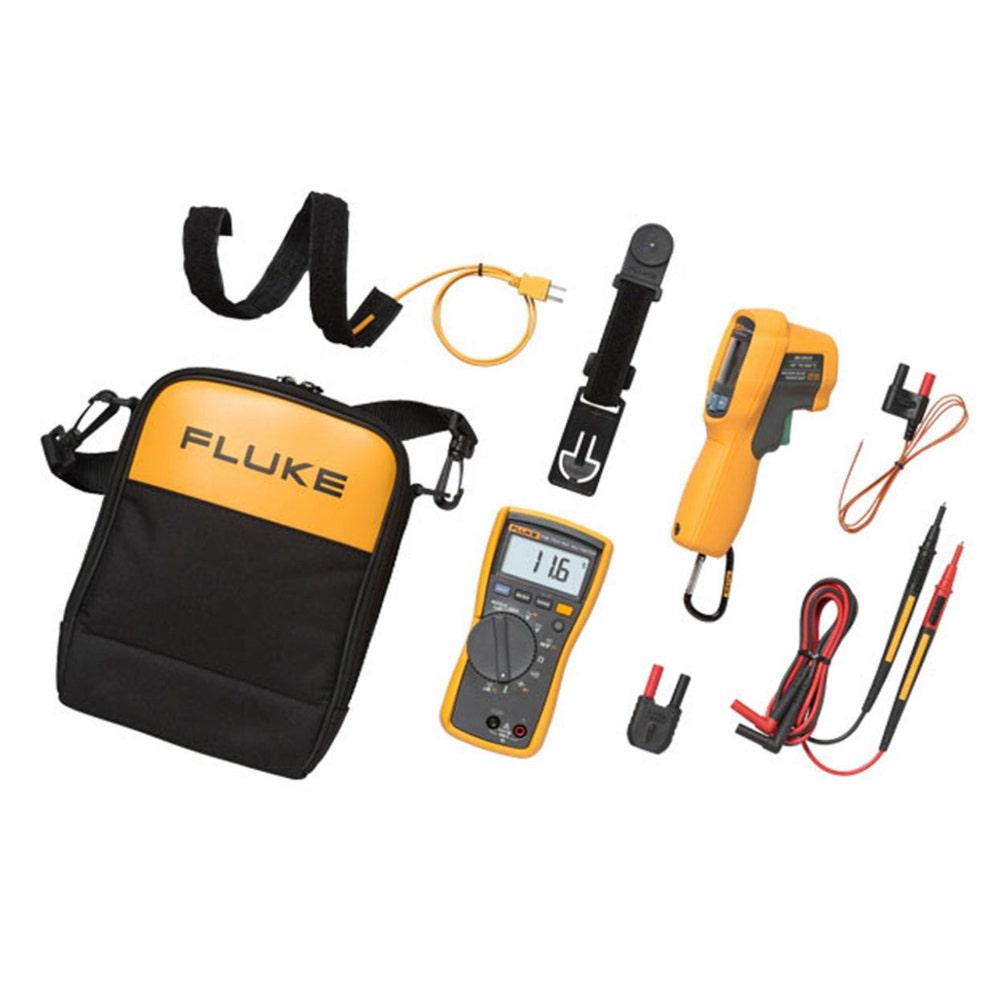

• Includes Fluke 116 HVAC Multimeter and 62 MAX+ Infrared Thermometer
• Integrated DMM temperature probe for HVAC applications
• Microamp function for measuring flame sensors down to 0.1 microamps
• AutoV/LoZ function to avoid false readings from ghost voltage
• Large white LED backlight for visibility in dark areas
• True-rms voltage and current measurements for accurate results on non-linear loads
• Direct measurement of 10 A (20 A overload for 30 seconds) without a clamp
• Measures resistance, continuity, frequency, and capacitance
• Records signal fluctuations with Min/Max/Average and elapsed time features
• Ease of use with one-hand operation
• Hands-free operation possible with optional ToolPak magnetic hanger
• Rated for CAT III 600 V safety

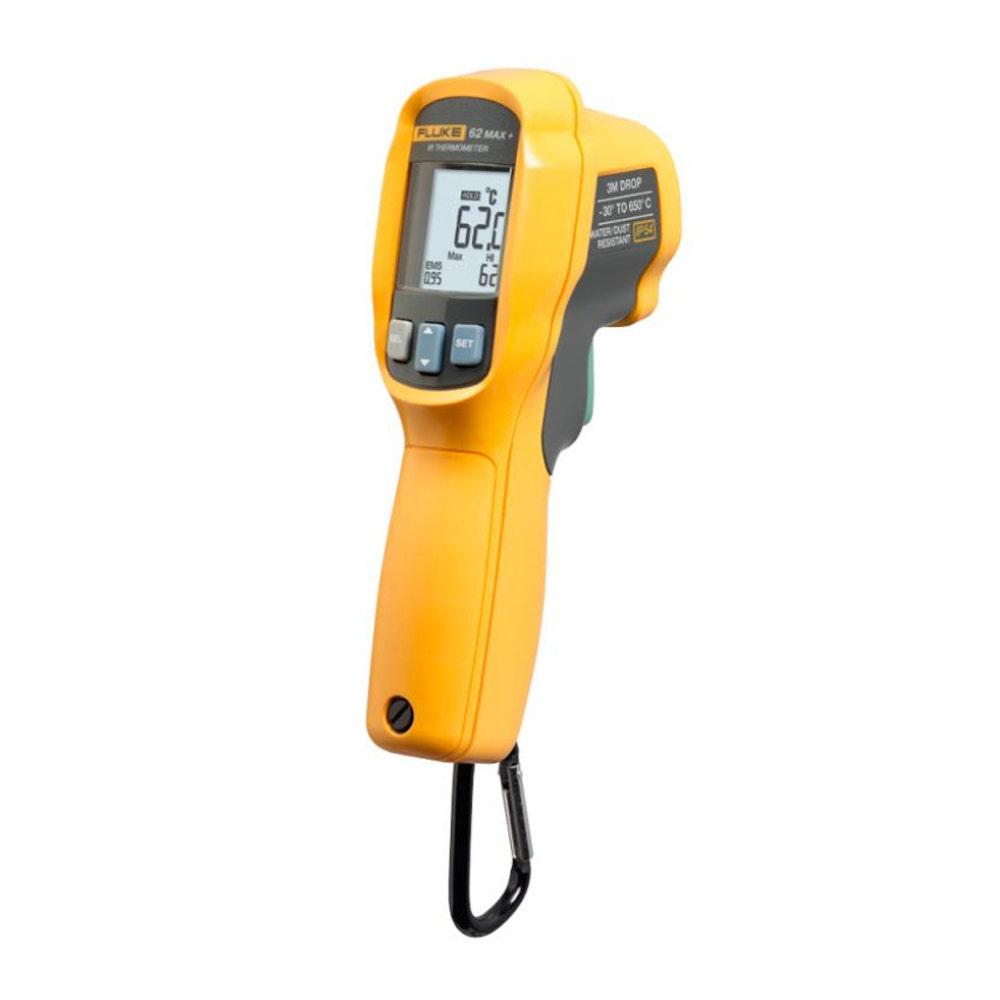

• Infrared thermometer measures from -30°C to 650°C (-22°F to 1202°F)
• IP54 rated for water and dust resistance
• Durable design withstands drops from up to 3 meters
• Dual lasers for precise measurement area identification

Specifications

• Maximum voltage: 600 V between any terminal and earth ground
• Surge protection: 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
• Display: 6,000 counts, updates 4 times per second
• Bar graph: 33 segments, updates 32 times per second
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -40°C to +60°C
• Battery type: 9 volt Alkaline, NEDA 1604A / IEC 6LR61
• Battery Life: 400 hours typical without backlight
• Size: 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
• Weight: 550 g
• Fluke 62 MAX+ infrared thermometer accuracy: ±1.0°C or ±1.0% of reading
• Optical resolution: 12:1 at 90% energy
• Power: AA battery with 8 hours battery life with laser and backlight on
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Storage temperature: -20°C to 60°C (-4°F to 140°F, without battery)
• IP rating: IP 54 per IEC 60529
• Drop test: withstands drops from 3 meters
