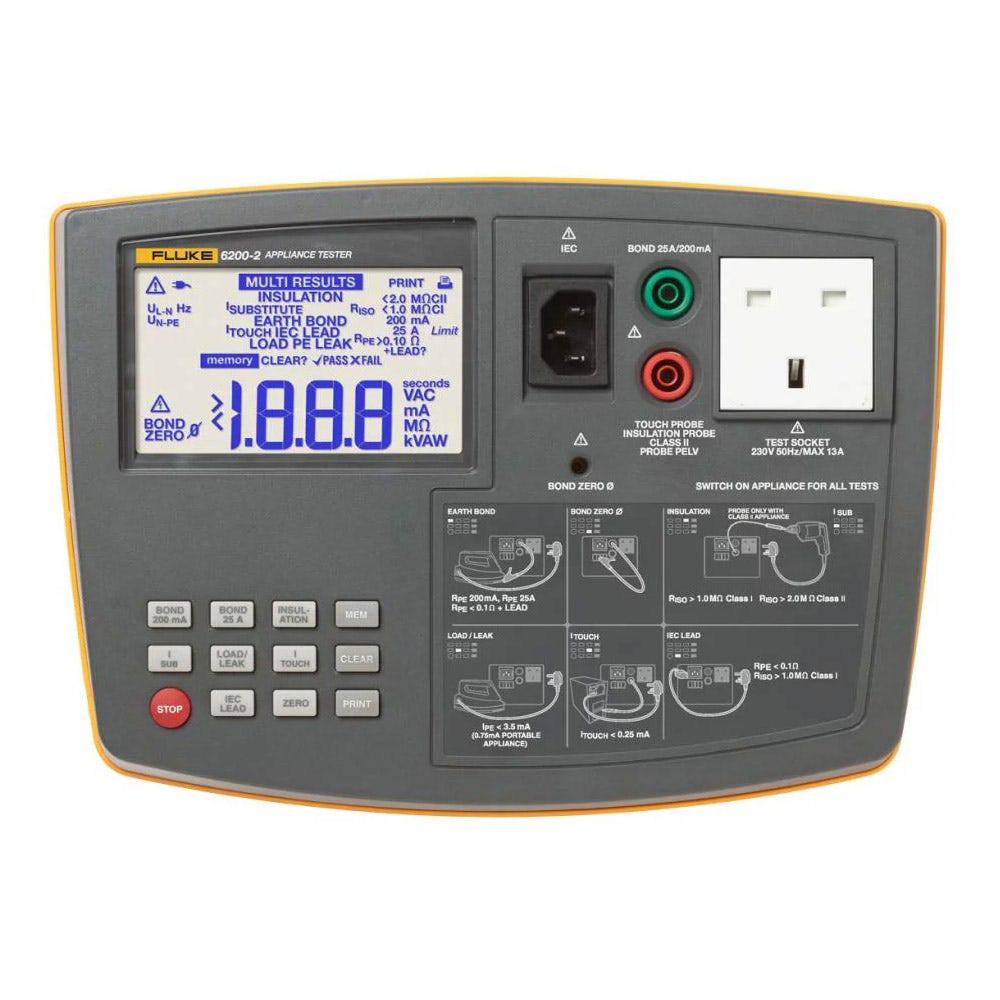

FLUKE Portable Appliance Testers FLU6200-2

Features

• One-Touch solution with pre-set test routines
• Lightweight design, approximately 3 kg for easy transport
• Compact size with Fluke's ruggedness for field use
• Dedicated key for each test for streamlined operation
• Pre-set pass/fail levels to enhance testing efficiency
• Large backlit display for improved visibility
• Single mains socket for appliance connection
• Separate IEC socket for convenient mains/extension lead testing
• Detachable test leads for quick field replacements

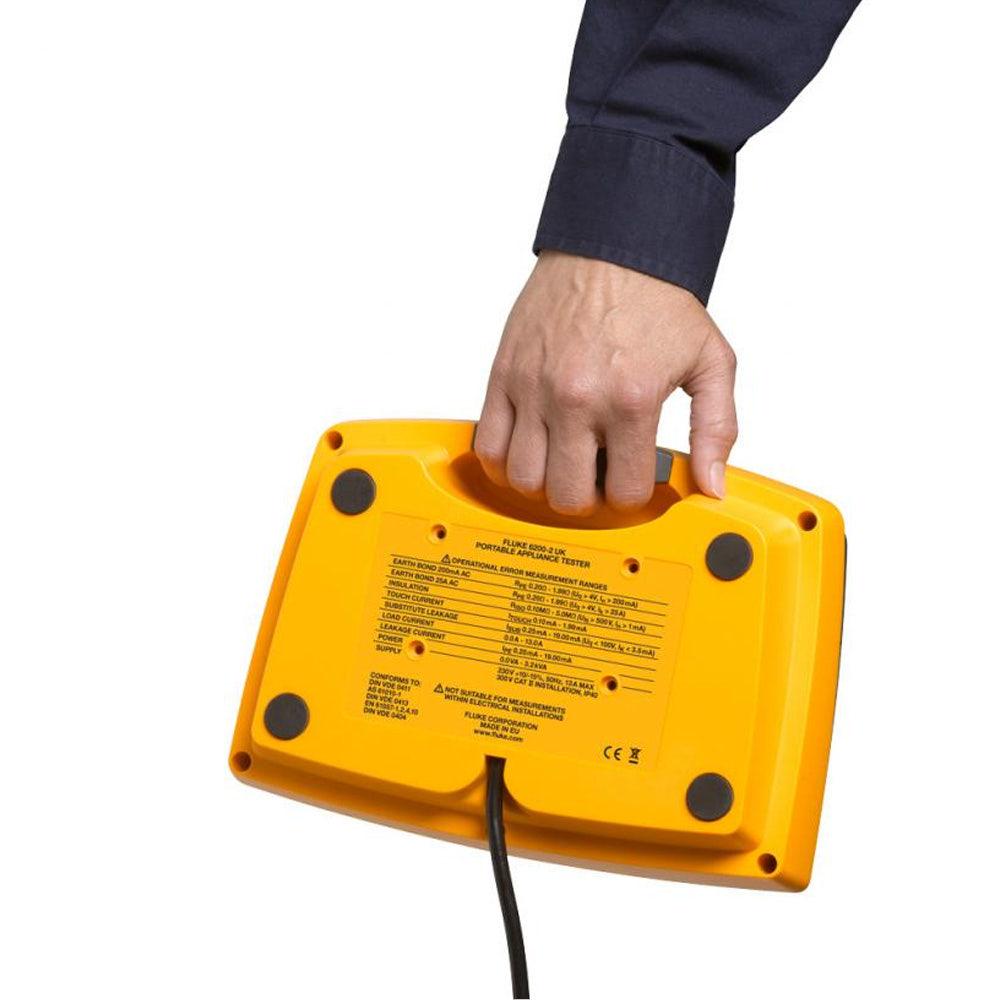

• Integral carrying handle for ease of use
• USB port available for data transfer

Specifications

• Test specifications: Accuracy defined as ±(%reading + digit counts) at 23 °C ±5 °C, 75% RH
• Power-on test: Indicates reversed L-N, missing PE; measures mains voltage and frequency
• Earth bond test (R pe): Display range of 0 to 19.99, accuracy ±(2.5% + 4 counts)
• Insulation test (R iso): Display range of 0 to 299 M, accuracy ±(5% + 2 counts)
• Touch current test: Display range of 0 to 1.99 mA AC, accuracy ±(4% + 2 counts)
• Substitute leakage current test: Display range of 0 to 19.99 mA AC, accuracy ±(2.5% + 3 counts)
• Load/leakage test: Load current display range of 0 A to 13 A, accuracy ±(4% + 2 counts)
• Operating temperature: 0 to 40 °C
• Relative humidity: Non-condensing
• Safety rating: Complies with EN61010-1 3rd edition, CAT II, 300 V
• Power supply: 230 V +10% -15%, 50 Hz ±2
• Power consumption: 13 W typical, 60 W max during 25A Bond test
• Storage temperature: -10 to 60 °C
• Operating altitude: Up to 2000 m
• Sealing: IP-40 (enclosure), IP-20 (connectors)
• EMC: Complies with EN61326-1, portable
• Included: Tester, user's manual CD, quick reference guide, carrying case, test lead, probe, crocodile clip, mains cord
