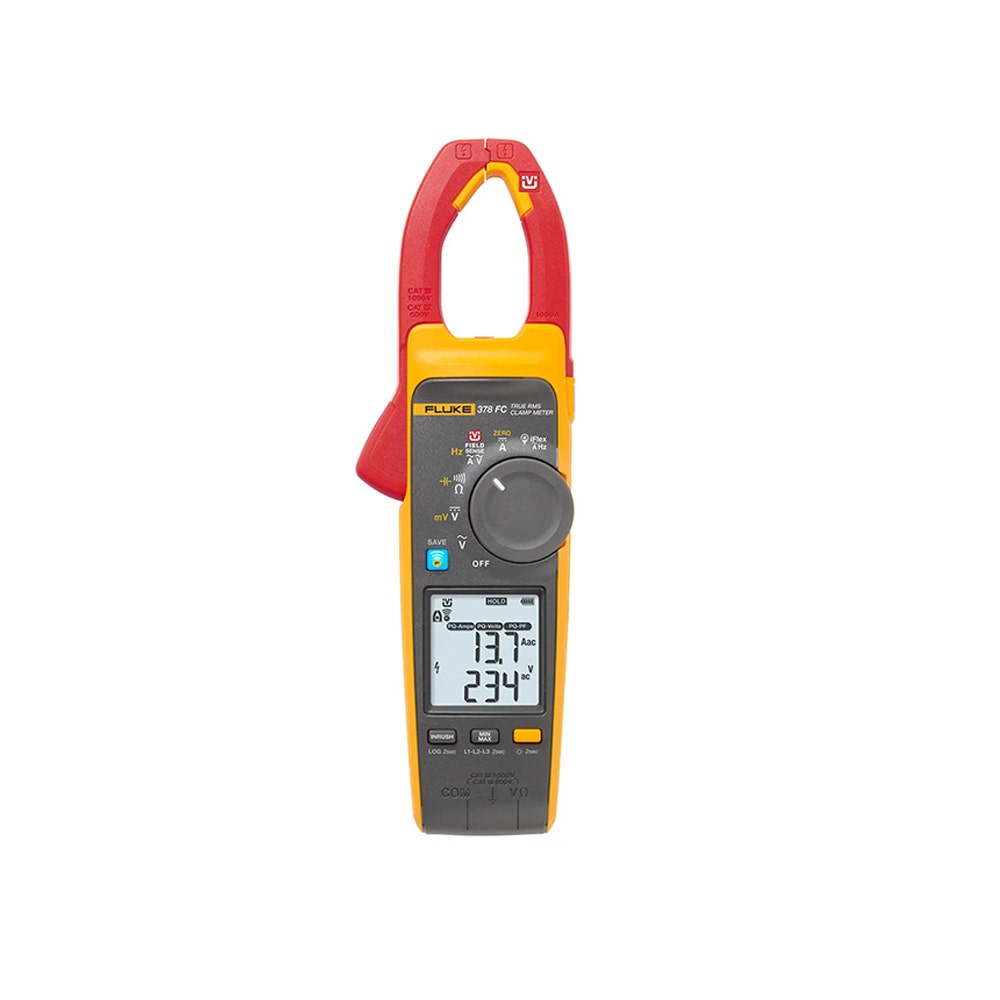

FLUKE Non-Contact Voltage True-RMS AC DC Clamp Meter w PQI and iFlex FLU378FC

Features

• Utilizes FieldSense technology for contactless voltage measurement
• Provides accurate voltage and current readings via clamp jaw
• Displays values on smartphone and saves data to the cloud through Fluke Connect
• Conducts complete 3-phase voltage and current tests in 3 easy steps
• Includes power quality indicator to identify faulty equipment or power lines
• Calculates and shows full set of phase-to-ground and phase-to-phase values on meter
• Ensures faster and safer testing without contacting live conductors

Specifications

• AC Current: Jaw - Range: 999.9A, Accuracy: 2 % ± 5 digits (10 Hz to 100 Hz), 2.5 % ± 5 digits (100 Hz to 500 Hz)
• AC Current: Flexible Current Probe - Range: 2500A, Accuracy: 3 % ± 5 digits (5 Hz to 500 Hz)
• DC Current - Range: 999.9A, Accuracy: 2 % ± 5 digits
• AC Voltage: Field Sense - Range: 1000A, Accuracy: 4/0 AWG 3 % ±5 digits (45 Hz to 66 Hz), 4/0 AWG 5 % ±5 digits (45 Hz to 66 Hz)
• AC Voltage: Test Leads - Range: 600.0V - 1000A, Accuracy: 1 % ±5 digits (20 Hz to 500 Hz)
• DC Voltage - Range: 600.0A - 1000V, Accuracy: 1 % ±5 digits
• Capacitance - Range: 1000 F (0.1 F to 1 F), Accuracy: 1 % ±4 digits
• Display: Dual Readout
• Jaw Opening: 34mm
• Flexible Current Probe Diameter: 7.5mm
• Flexible Current Probe Cable Length: 1.8m
• Operating Temperature: -10ºC ~ 50ºC
• Storage Temperature: -40ºC ~ 60ºC
