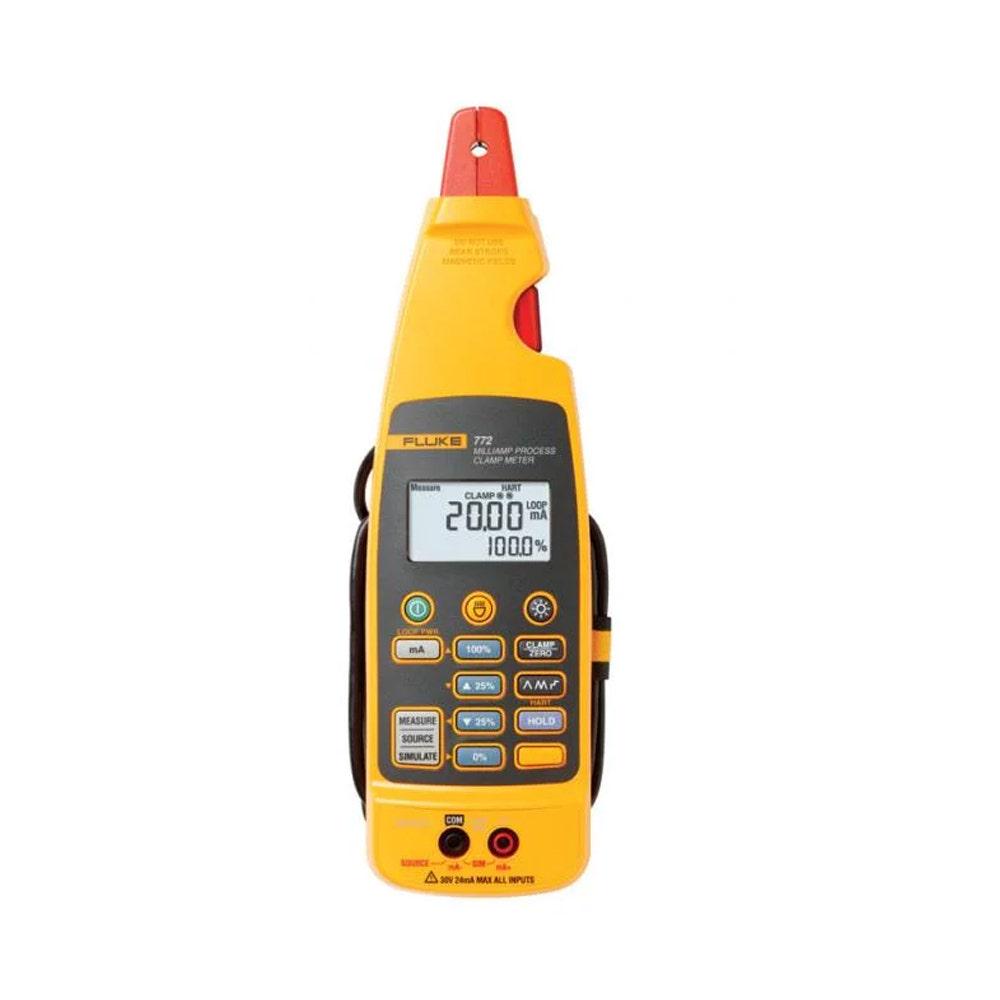

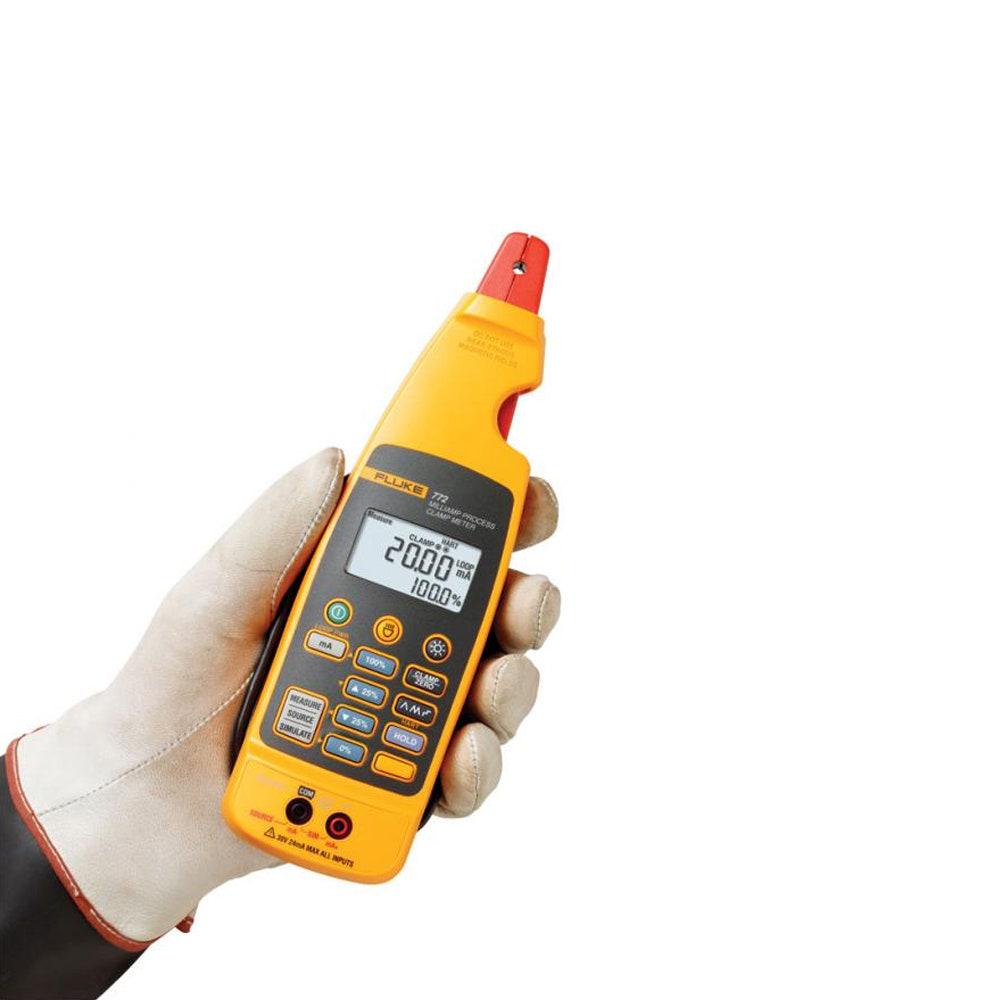

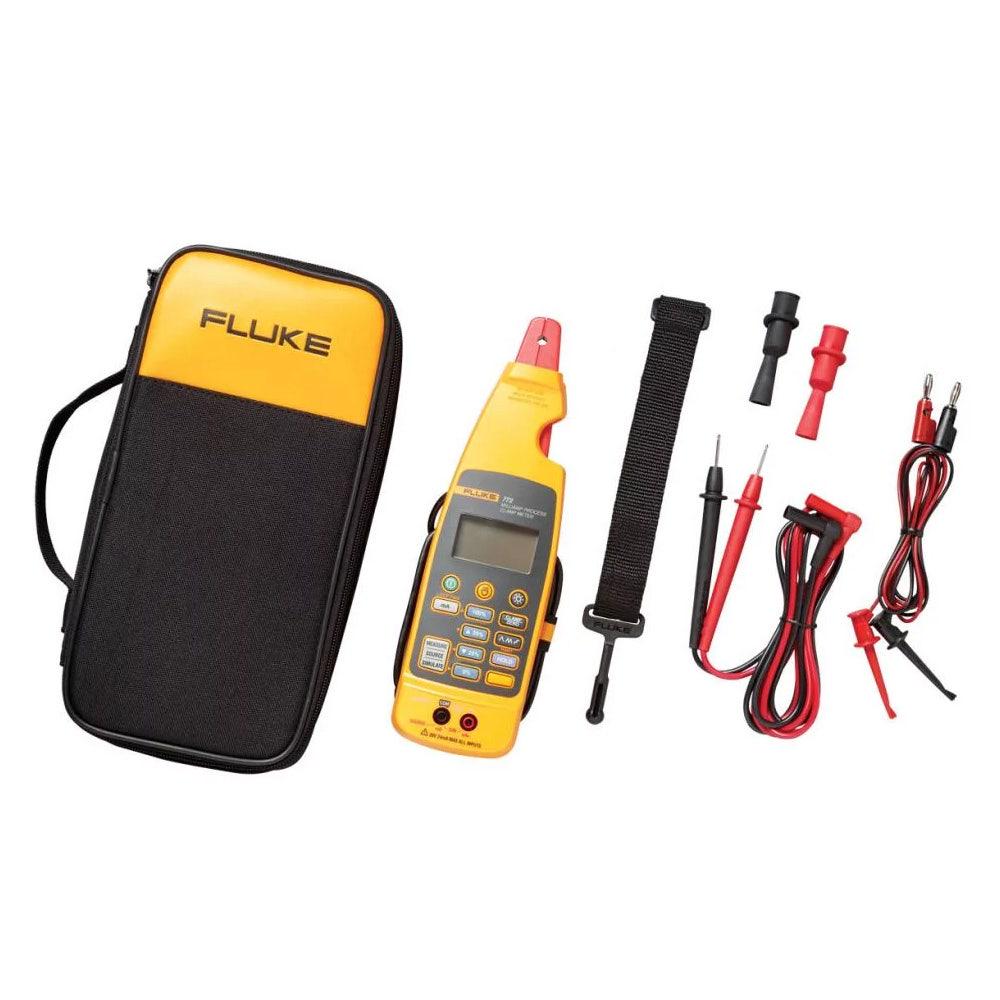

FLUKE Milliamp Process Clamp Meter FLU772

Features

• Simulates 4-20 mA signals for testing control system I/O
• Sources 4 to 20 mA signals for I/O or I/P testing
• Measures 4 to 20 mA signals with in-circuit measurement
• Includes simultaneous mA in-circuit measurement with 24V loop power
• Features detachable clamp with extension cable for tight spaces
• Captures and displays changing measurements with Hold function
• Offers mA output linear ramp or 25% step output
• Extends battery life with auto-off and backlight timeout
• Dual backlit display showing both mA measurement and percent of 4-20 mA span
• Measurement Spotlight for illuminating hard-to-see wires
• Measures 10 to 50 mA signals in older control systems
• Automatically changes the 4 to 20 mA output for remote testing
• Loop calibrator measures 4 to 20 mA signals without breaking the loop
• Delivers best-in-class 0.2% accuracy
• Simultaneously measures mA signal with clamp and sources a mA signal
• Provides 0.01 mA resolution and sensitivity
• Measures mA signals for PLC and control system analog I/O
• Tests 4-20 mA signals five times faster than traditional DMMs

Specifications

• Diameter of measurable conductor: 0.177 or 4.5 mm max
• Operating temperature: -10 to 50ºC
• Storage temperature: -25 to 60ºC
• Operating altitude: 0 to 2000 m
• IP rating: IP 40
• Vibration: Random 2 g, 5 to 500 Hz
• Shock: 1 meter drop test (except the jaw)
• Temperature coefficient: 0.01% ºC (28ºC)
• Power, battery life: (4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms
• mA measurement (clamp): Resolution/range: 0 to 20.99 mA | Accuracy: 0.2% + 5 counts
• mA measurement (in series with test jacks): Resolution/range: 0 to 24.00 mA | Accuracy: 0.2% + 2 counts
• mA source (maximum mA drive: 24 mA into 1,000 ohms): Resolution/range: 0 to 24.00 mA | Accuracy: 0.2% + 2 counts
• mA simulate (maximum voltage 50 V dc): Resolution/range: 0 to 24.00 mA | Accuracy: 0.2% + 2 counts
