FLUKE MicroScanner Network Copper and Fiber Tester Kit FLUMS2-FTK

Features

• Graphical wiremap, cable ID, distance to fault, and length display
• Integrated RJ11, RJ45, and coax test ports for low-voltage cable testing

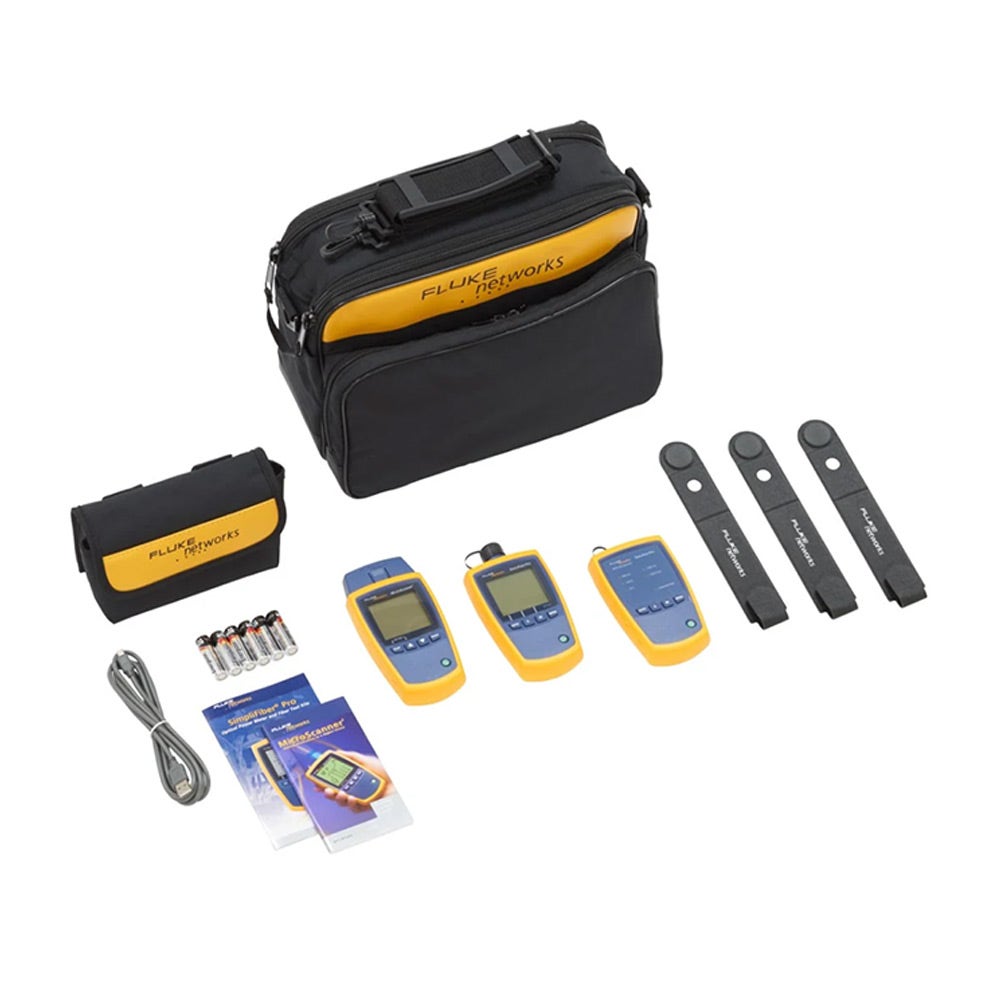

• MicroScanner² cable tester, punch down tool, tone generator, and probe included
• Tone generator produces 500 kHz digital, 400 kHz, and 1 kHz analog tones
• SimpliFiber Pro multimode light source for power and loss measurement
• Verifies 10/100/1000 Ethernet, POTS, and PoE media services
• Monochrome LCD with backlight for easy viewing
• Detects single-wire faults, shorts, miswires, and split pairs with wiremap test
• Measures cable length with a range of 460 m (1500 ft) and resolution of 0.3 m (1 ft)
• Detects advertised speed of Ethernet ports from 10 Mbps to 10 Gbps
• Solicits and detects 802.3af compatible PoE devices

Specifications

• Operating temperature: 32°F to 113°F (0°C to 45°C)
• Storage temperature: -4°F to +140°F (-20°C to +60°C)
• Operating relative humidity: 90% (50°F to 95°F), 75% (95°F to 113°F)
• Shock and vibration: Random, 2 g, 5 Hz-500 Hz
• Test connectors: Accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs
• Power: 2 AA alkaline batteries, 20 hours of typical use
• Dimensions: 3 in x 6.4 in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm)
• Weight: 10.6 oz (300 g)
• Calibration: User-settable NVP for twisted pair and coax
• Warranty: 2 Year
