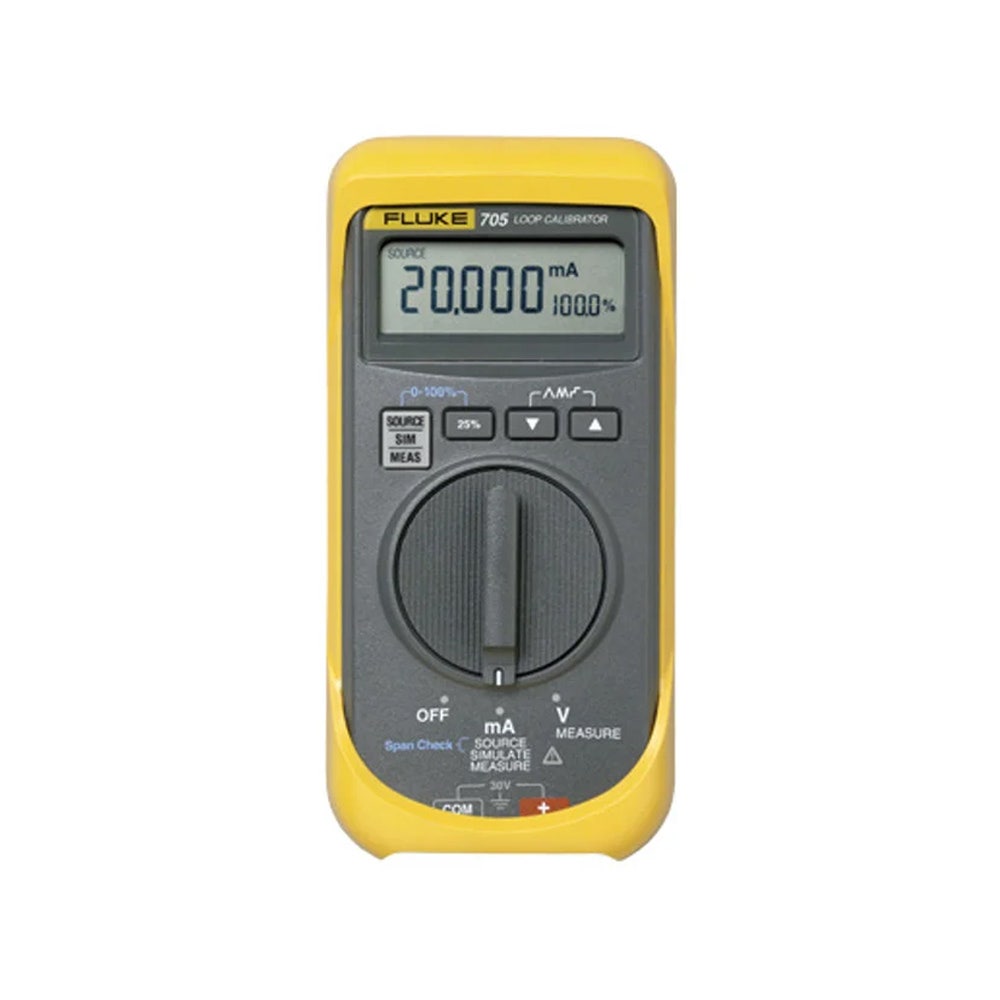

FLUKE Loop Calibrator FLU705

Features

• Cost-effective integrated solution for milliamp loop calibration, repair, and maintenance
• Large display with simple pushbutton interface for ease of use
• mA sourcing, simulation, and measurement capabilities
• 0.02% accuracy and 0.001 mA resolution
• Simultaneous mA and % of span display
• Selectable step or ramp outputs
• 24 V loop supply with mA measurement
• 0-28 VDC measurement for checking loop voltage
• Easy battery exchange without opening the case
• Includes "span check" for quick confirmation of zero and span
• Provides selectable slow ramp, fast ramp, and step for smooth outputs
• 24 volt internal loop supply for powering and reading a transmitter simultaneously
• Operates on a single 9 V battery, easily changed without breaking calibration seal
• Offers 0 - 20 mA or 4 - 20 mA default startup modes
• Comes with protective yellow holster with test lead storage and three-year warranty

Specifications

• Current measurement range: 0 to 24 mA
• Resolution: 0.001 mA
• Accuracy: 0.02% Rdg + 2 LSD
• Current sourcing range: 0 to 20 mA or 4 to 20 mA
• Current sourcing accuracy: 0.025% Rdg + 2 LSD
• Drive capability: 1000 @ 24 mA
• Current simulation range: 0 to 20 mA or 4 to 20 mA
• Current simulation accuracy: 0.025% Rdg + 2 LSD
• External loop voltage requirement: 12-30 V
• Loop power: 24 V while measuring mA
• Voltage measurement range: 0 to 28 V DC
• Voltage resolution: 1 mV
• Voltage accuracy: 0.025% Rdg + 2 LSD
• Operating temperature: -10°C to 55°C
• Storage temperature: -40°C to 60°C
• Humidity (without condensation): 0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C)
• Temperature coefficient: ±0.005% of range per °C
• Safety compliant with CSA C22.2 No. 1010.1:1992
• EMC compliant with EN50082-1:1992 and EN55022:1994 Class B
• Maximum voltage: 30 V
• Batteries: One 9 V battery
• Warranty: Three years
• Shock and vibration per MIL-T-28800 for Class 2 Instrument
• Display shows current and % of span
• Features auto step and auto ramp
• Includes span check
