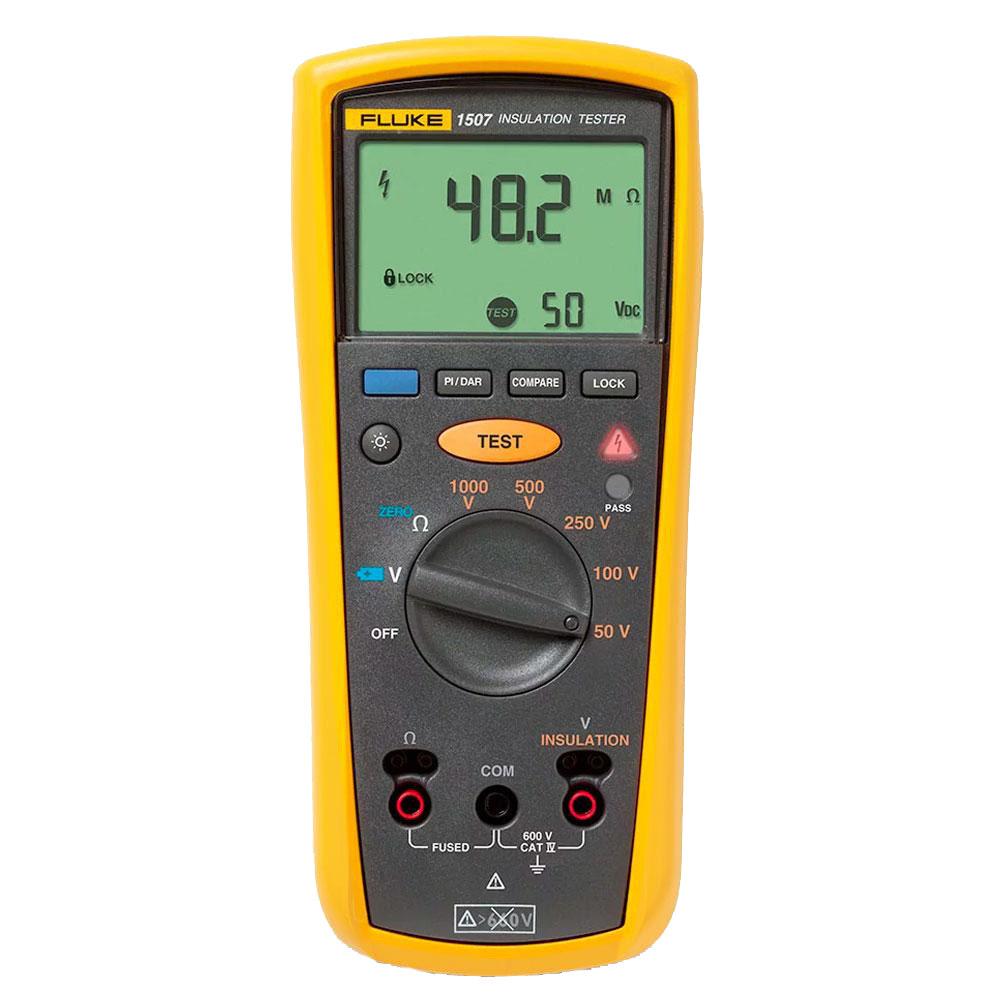

FLUKE Insulation Resistance Tester FLU1507

Features

• Compact and rugged handheld insulation tester for industrial and electrical use
• Automatically calculates Polarization Index and Dielectric Absorption Ratio
• Compare (Pass/Fail) function simplifies repetitive tests
• Multiple insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
• Insulation tests range from 0.01 M to 2.0 G
• Live circuit detection prevents testing if voltage >30 V is present
• Auto-discharge of capacitive voltage enhances user safety
• Measures AC/DC voltage from 0.1 V to 600 V and resistance from 0.01 to 20.00 k
• Lo-ohms earth-bond continuity measurement (200 mA)
• Remote test probe for hard-to-reach testing
• Auto power off to conserve battery life
• Results displayed on a large, backlit screen
• CAT IV 600 V overvoltage category rating
• Includes remote probe, test leads, probes, alligator clips, and one-year warranty
• Optional Fluke TPAK magnetic hanging system available
• Operates on four AA alkaline batteries, allowing for at least 1000 tests

Specifications

• Part No: FLU1507
• Barcode: 95969288675
• Brand: Fluke
• Warranty: 1 Year
• Net Weight: 0.55 kg
• Product Length: 203 mm
• Product Width: 100 mm
• Product Height: 50 mm
• Input impedance: 3 M (nominal)
• Common mode rejection ratio: > 60 dB at DC, 50 or 60 Hz
• Overload protection: 600 V rms or DC
• Earth Bond Resistance Measurement: 20.00: 0.01, 200.0: 0.1, 2000: 1.0, 20.00 k: 0.01 k
• Accuracy: ±(1.5% + 3)
• Open circuit test voltage: > 4.0 V
• Short circuit current: > 200.0 mA
• Measurement range: 0.01 M to 10 G
• Storage temperature: -40°C to 60°C
• Operating temperature: -20°C to 55°C
• Relative humidity: 0% to 95% @ 10°C to 30°C
• Vibration: Random, 2 g, 5-500 Hz
• Shock: 1 meter drop compliant with IEC 61010-1
• IP rating: IP40
• Operating altitude: 2000 m CAT IV 600 V
• Accessories included: TL224 Test Leads, TP74 Test Probes, clips, holster, remote probe
