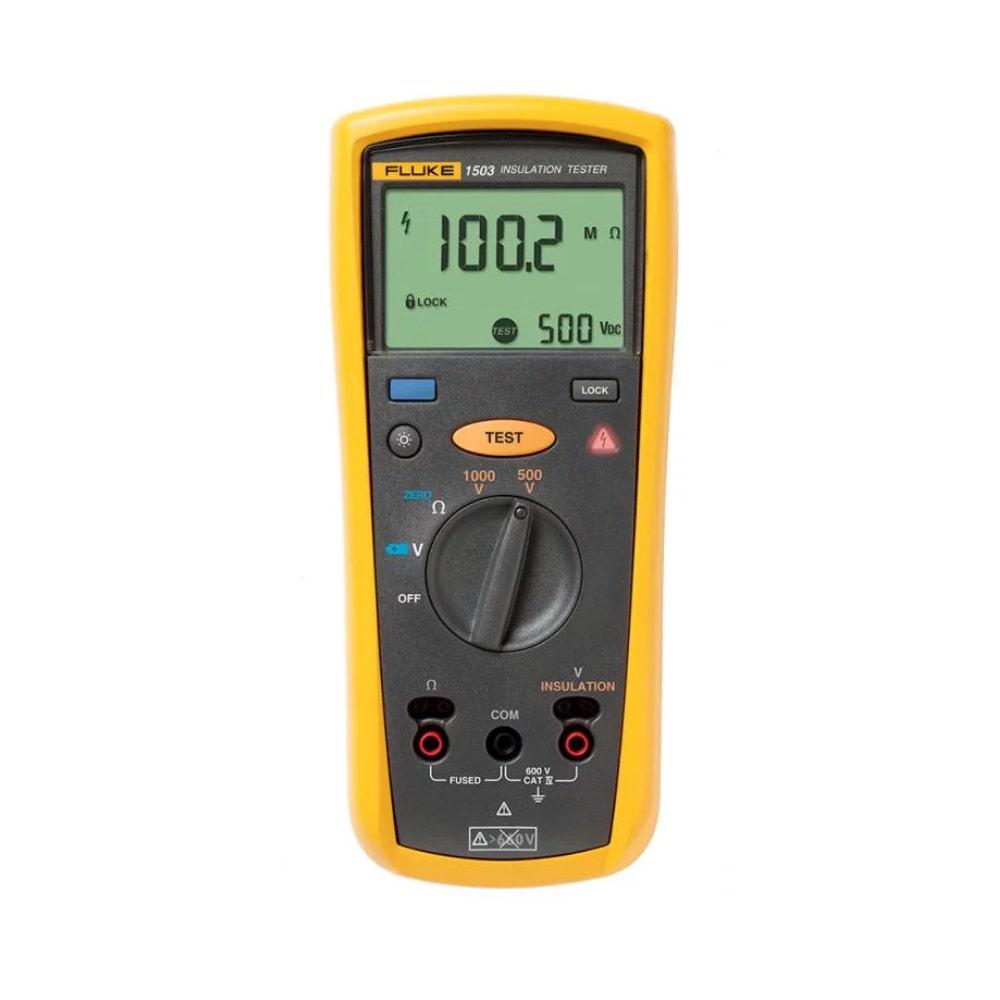

FLUKE Insulation Resistance Meter FLU1503

Features

• Compact, rugged insulation resistance tester for residential and commercial use
• Insulation testing range from 0.01 M to 2000 M
• Two test voltages: 500 V and 1000 V
• Live circuit detection to avoid testing if voltage > 30 V is present
• Resistance measurement range: 0.01 to 20.00 k
• AC/DC voltage measurement from 0.1 V to 600 V
• Auto-discharge function for user safety
• Lo-ohms earth-bond continuity testing (200 mA)
• Remote test probe for easy repetitive testing
• Auto power off feature to conserve battery
• Large, backlit display for easy reading
• Rated for CAT IV 600 V overvoltage category
• Includes remote probe, test leads, probes, alligator clips, and 1-year warranty
• Compatible with optional Fluke TPAK magnetic hanging system
• Operates on four AA alkaline batteries for at least 1000 insulation tests

Specifications

• Accuracy Range: 600.0 V
• Resolution: 0.1 V, 50 Hz to 400 Hz ±(% of Rdg + Digits) ±(2% + 3)
• Input impedance: 3 M (nominal)
• Common mode rejection ratio: > 60 dB at DC, 50 or 60 Hz
• Overload protection: 600 V rms or DC
• Measurement range: 0.01 M to 2000 M
• Test voltage accuracy: + 20%, - 0%
• Maximum capacitive load: Operable with up to 1 µF load
• Storage temperature: -40°C to 60°C (-40°F to 140°F)
• Operating temperature: -20°C to 55°C (-4°F to 131°F)
• Relative humidity: 0% to 95% @ 10°C to 30°C
• Vibration: Random, 2 g, 5-500 Hz per MIL-PRF-28800F
• Shock: 1 meter drop per IEC 61010-1
• Safety certifications: Complies with ANSI/ISA, CAN/CSA, IEC/EN standards
• IP rating: IP40
• Operating altitude: 2000 m CAT IV 600 V, 3000 m CAT III 600 V
• Part No: FLU1503
• Brand: Fluke
• Warranty: 1 Year
• Net Weight: 0.55 kg
• Product Dimensions: 203 mm (L) x 100 mm (W) x 50 mm (H)
