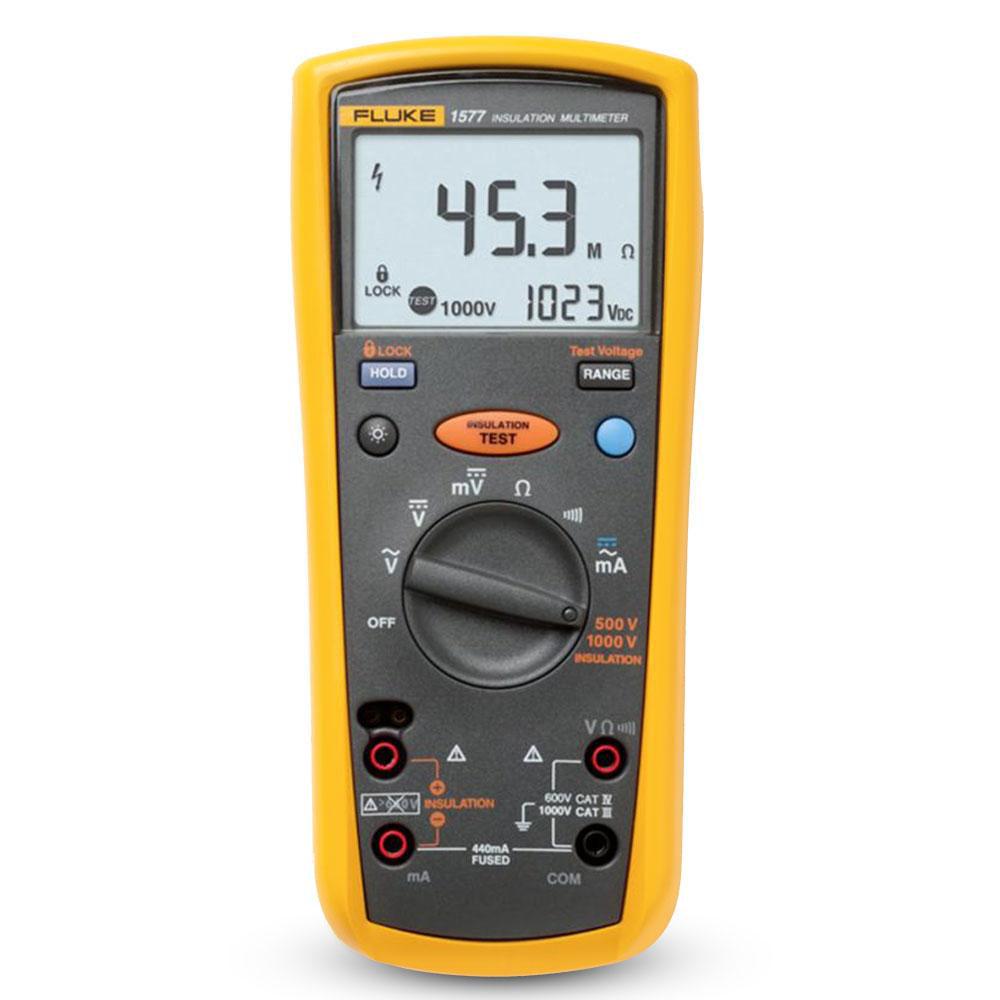

FLUKE Insulation Multimeter FLU1577

Features

• Combines a digital insulation tester with a true RMS digital multimeter
• Insulation testing voltages: 500 V and 1000 V
• Insulation test range: 0.1 M to 600 M
• Auto discharge feature for capacitive voltage
• Measures AC/DC voltage
• Measures DC millivolts
• Measures AC/DC milliamps
• Resistance measurement from 0.1 to 50 M
• Continuity testing capability
• Three-year warranty included
• Includes remote probe, test leads, and alligator clips
• Rugged hard case for utility
• Auto power off to conserve battery
• Large backlit display for easy reading
• True RMS measurement functionality
• Live circuit detection for user protection (prevents insulation test if > 30 V detected)
• Measurement categories: CAT III 1000V, CAT IV 600V
• Compatible with optional Fluke TPAK™ magnetic hanging system

Specifications

• Maximum DC voltage: 1000 V
• DC accuracy: ±(0.2% + 2)
• Maximum DC resolution: 0.001 V
• Maximum AC voltage: 1000 V
• AC accuracy: ±(2% + 3)
• Maximum AC resolution: 0.1 mV
• Maximum DC current: 400 mA
• DC current accuracy: ±(1.0% + 2)
• Maximum DC current resolution: 0.01 mA
• Maximum AC current: 400 mA
• AC current accuracy: ±(2.0% + 2)
• Maximum AC current resolution: 0.01 mA
• Maximum resistance: 50 M
• Resistance accuracy: ±(1.2% + 2)
• Maximum resistance resolution: 0.1
• Minimum test current @ 1k/V: 1 mA
• Operating temperature range: 20°C to +55°C
• Storage temperature range: -40°C to +60°C
• Operating altitude: 2000 m
• Battery life (alkaline): 1000 hours
• IP rating: IP40
• Measurement category compliance: CAT III 1000 V, CAT IV 600 V
