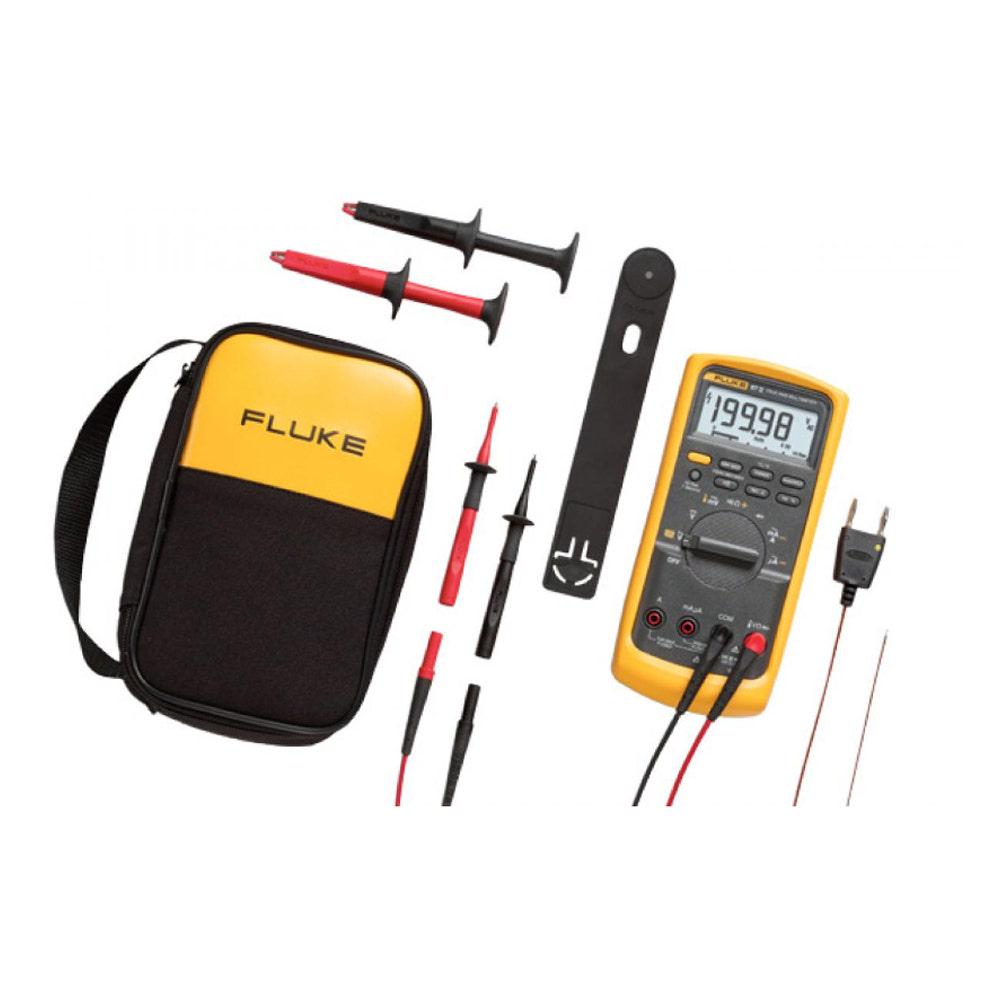

FLUKE Industrial Electrician Combo Kit FLU87V E2
Store rating:Regular price: Was $3,176.00
-
Nationwide Shipping
-
Australian Owned
-
Secure checkout
Other options
Product information
Product Description
This combo kit is built around the Fluke 87V, the most widely used industrial digital multimeter in the world, and includes special accessories to make you even more productive on the job. This kit will save over 15% compared with the individual price of all the accessories. Plus you'll be working with the most trusted tools in the world.
Key Features
- Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
- Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
- Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
- Large digit display with bright, two-level backlight makes the 87V significantly easier to read than older models
- True-rms ac voltage and current for accurate measurements on non linear signals
- Selectable filter for accurate voltage and frequency measurements on motor drives
- 0.05% DC accuracy
- 6000 counts, 3-3/4 digits
- 4-1/2 digit mode for precise measurements (20,000 counts)
- Measure up to 1000 V AC and DC
- Measure up to 10 A, 20 A for up to 30 seconds
- Built in thermometer lets you carry one less tool (TC probe included)
- Frequency to 200 kHz and % duty cycle
- Resistance, continuity and diode test
- 10,000 µF capacitance range for components and motor caps
- Min/Max-Average recording with Min/Max Alert to capture variations automatically
- Peak capture to record transients as fast as 250 µs
- Relative mode to remove test lead interference from low ohms measurements
- Auto and manual ranging for maximum flexibility
- Touch Hold to capture stable readings avoiding noisy signals
- Large display digits and two-level bright white backlight for increased visibility
- Analog bargraph for fast changing or unstable signals
- Input Alert provides audible warning against wrong use of input jacks
- Improved selectable sleep mode for long battery life
- Access door for fast battery changes without breaking the calibration seal
- "Classic" design with new removable holster with built in test lead and probe storage
- Lifetime warranty
Electrical safety
All inputs are protected to the 2nd edition of ANSI/ISA S82.01 and EN61010-1 CAT IV 600 V and CAT III, 1000 V. They can withstand impulses in excess of 8.000 V and reduce risks related to surges and spikes.
Correctly measure pulse-width modulated motor drive signals
Until now, there hasn't been a multimeter able to accurately measure adjustable speed drives. But the Fluke 87V is designed specifically to handle these complex signals. Think of the potential productivity you'll gain by taking the guesswork out of drive system troubleshooting. Measurements are correct each and every time.
Key Features
- Unique function for accurate measurements of noisy pulse-width modulated AC voltage. Measures correctly at the ASD and at the motor terminals
- Accurately measure the frequency (motor speed). Frequency measurement not affected by the ASDs carrier frequency
- Measure AC current with an optional current clamp accessory
- Compare reading from the 87V with the display on the ASD
- Special shielding blocks high frequency, high-energy noise generated by large drive systems
Specifications
| Specification | Details |
|---|---|
| Voltage DC: | |
| Maximum Voltage | 1000 V |
| Accuracy | ±(0.05% + 1) |
| Maximum Resolution | 10 µV |
| Voltage AC: | |
| Maximum Voltage | 1000 V |
| Accuracy | ±(0.7% + 2) True RMS |
| AC Bandwidth | 20 kHz with low pass filter; 3 db @ 1 kHz |
| Maximum Resolution | 0.1 mV |
| Current DC: | |
| Maximum Amps | 10 A (20 A for 30 seconds maximum) |
| Amps Accuracy | ±(0.2% + 2) |
| Maximum Resolution | 0.01 µA |
| Current AC: | |
| Maximum Amps | 10 A (20 A for 30 seconds maximum) |
| Amps Accuracy | ±(1.0% + 2) True RMS |
| Maximum Resolution | 0.1 µA |
| Resistance: | |
| Maximum Resistance | 50 M |
| Accuracy | ±(0.2% + 1) |
| Maximum Resolution | 0.1 |
| Capacitance: | |
| Maximum Capacitance | 9,999 µF |
| Accuracy | ±(1% + 2) |
| Maximum Resolution | 0.01 nF |
| Frequency: | |
| Maximum Frequency | 200 kHz |
| Accuracy | ±(0.005% + 1) |
| Maximum Resolution | 0.01 Hz |
| Duty Cycle: | |
| Maximum Duty Cycle | 99.9% |
| Accuracy | ±(0.2% per khz +0.1%) |
| Maximum Resolution | 0.1% |
| Temperature Measurement: | |
| -200.0°C - 1090°C | |
| -328.0°F - 1994.0°F | |
| excluding probe | |
| 80 BK Temperature Probe: | |
| -40.0°C - 260°C | |
| -40.0°F - 500°F, 2.2°C or 2% whichever is greater | |
| Conductance: | |
| Maximum Conductance | 60.00 nS |
| Accuracy | ±(1.0% + 10) |
| Maximum Resolution | 0.01 nS |
| Diode: | |
| Range | 3 V |
| Resolution | 1 mV |
| Accuracy | ±(2% + 1) |
| Duty Cycle Range | Accuracy - Within ±(02% per kHz +0.1%) |
| Environmental Specifications: | |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +60°C |
| Humidity (Without Condensation): | |
| 0% - 90% (0°C - 35°C) | |
| 0% - 70% (35°C - 55°C) | |
| Operating Altitude | 2000 m |
| Safety Specifications: | |
| Overvoltage category | EN 61010-1 to 1000 V CAT III, 600V CAT IV |
| Agency Approvals | UL, CSA, TÜV, VDE listed |
| Mechanical and General Specifications: | |
| Weight: | |
| 355 g | |
| 624 g - with holster | |
| Display: | |
| Digital: | |
| 6000 counts updates 4/sec. | |
| 19,999 counts in high-resolution mode | |
| Analog | 32 segments, updates 40/sec. |
| Frequency | 19,999 counts, updates 3/sec at > 10 Hz |
| Battery Life | Alkaline ~400 hours typical, without backlight |
| Shock | 1 Meter drop per IEC 61010-1:2001 |
| Vibration | Per MIL-PRF-28800 for a Class 2 instrument |
| Part No | FLU87V/E2 |
| Barcode | 95969353212 |
| Brand | Fluke |
| Warranty | Lifetime |
| Net Weight (kg) | 0.36 |
| Product Length (mm) | 201 |
| Product Width (mm) | 98 |
| Product Height (mm) | 52 |
