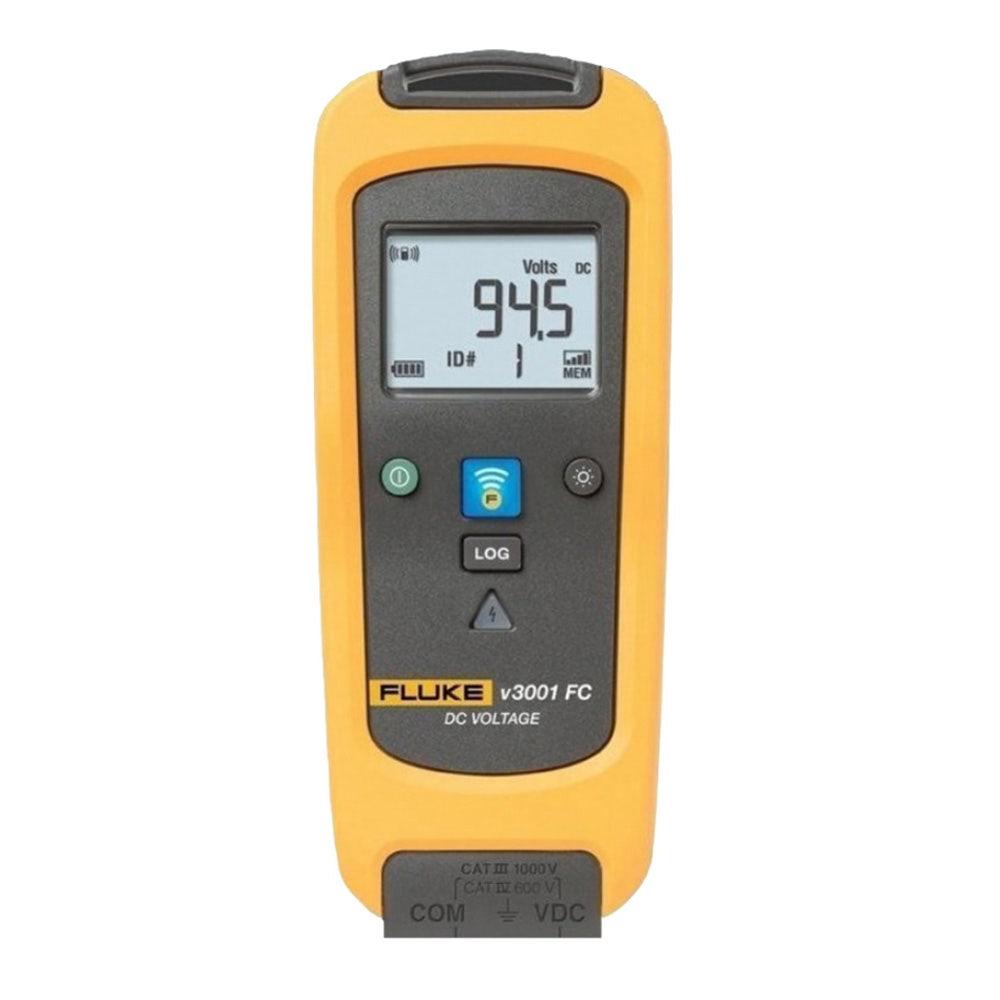

FLUKE FC Wireless DC Voltage Module FLUFLKV3001FC

Features

• Measures up to 1000 VDC
• Standalone operation or part of the Fluke Connect system
• Logs and saves up to 65,000 readings
• Wireless data sharing with Fluke Connect app

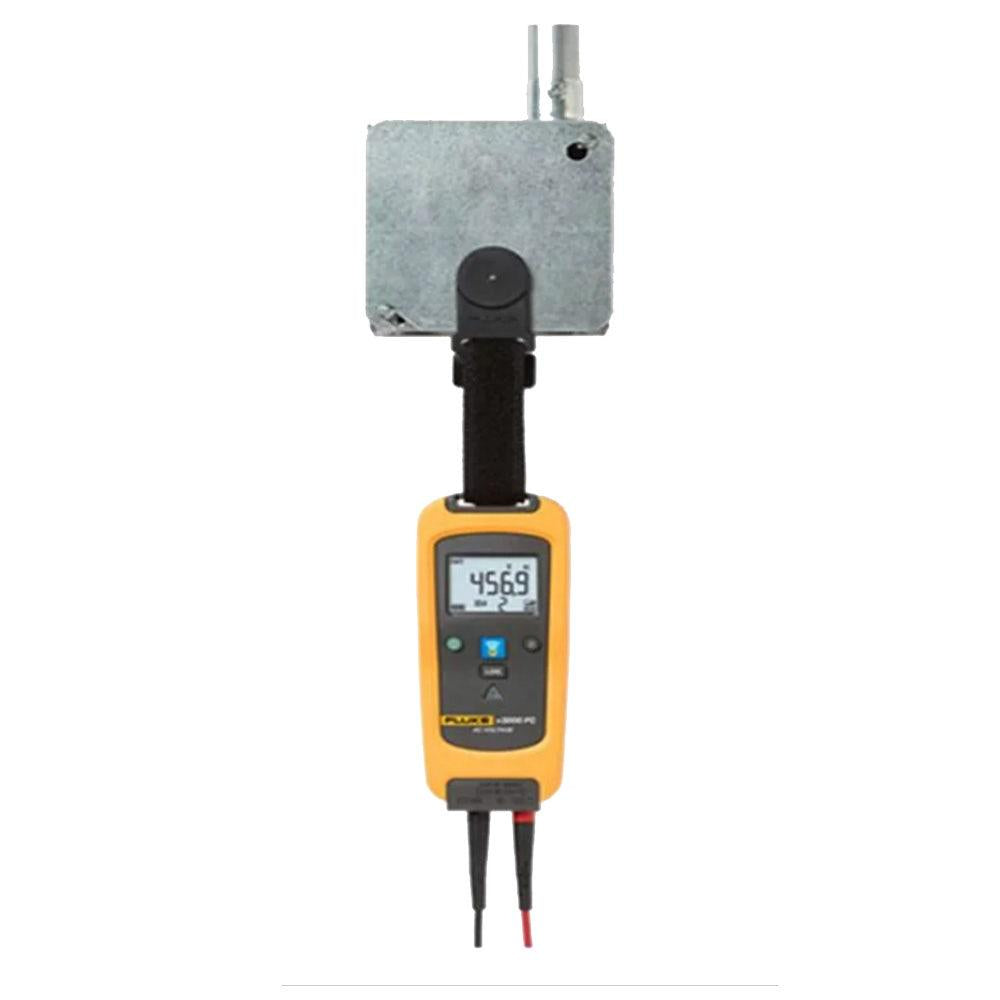

• Live readings without exposure to electrical panels
• Connects with Fluke 3000 FC DMM, Fluke Ti200/300/400 cameras, PC via optional adapter, and mobile app
• RF communication range: Up to 20 m unobstructed
• Battery life: Minimum 400 hours
• Easy data download for analysis
• Work safely with reduced PPE requirements

Specifications

• Voltage Measurement:
  • mV DC Range: 600.0 mV / 0.1 mV, Accuracy: 0.09% + 3
  • VDC Range:
    • 6.000 V / 0.001 V, Accuracy: 0.09% + 3
    • 60.00 V / 0.01 V, Accuracy: 0.09% + 3
    • 600.0 V / 0.1 V, Accuracy: 0.09% + 3
    • 1000 V / 1 V, Accuracy: 0.15% + 2
• LCD: 3 ½ digits, 6000 counts, 4/sec update rate
• Battery type: 2 AA Alkaline batteries
• Log rate: Adjustable from 1 sec to 1 hr
• Operating temperature: -10°C to +50°C
• Storage temperature: -40°C to +60°C
• Relative humidity: 0% to 90% (0°C to 35°C)
• Safety compliance: IEC 61010 1, 600 V CAT IV / 1000 V CAT III
• Ingress Protection (IP) rating: IP42
• Size: 160 x 66 x 38 mm
• Weight: 0.255 kg
• Warranty: Three years
