FLUKE Digital Multimeter FLU77-4

Expanded product image

FLUKE Digital Multimeter FLU77-4

Fluke

FLUKE Digital Multimeter FLU77-4

Store rating:
Sale price: $909.50Save $488.50

Regular price: Was $1,398.00

  • Nationwide Shipping

  • Australian Owned

  • Secure checkout

Product information

Product Description

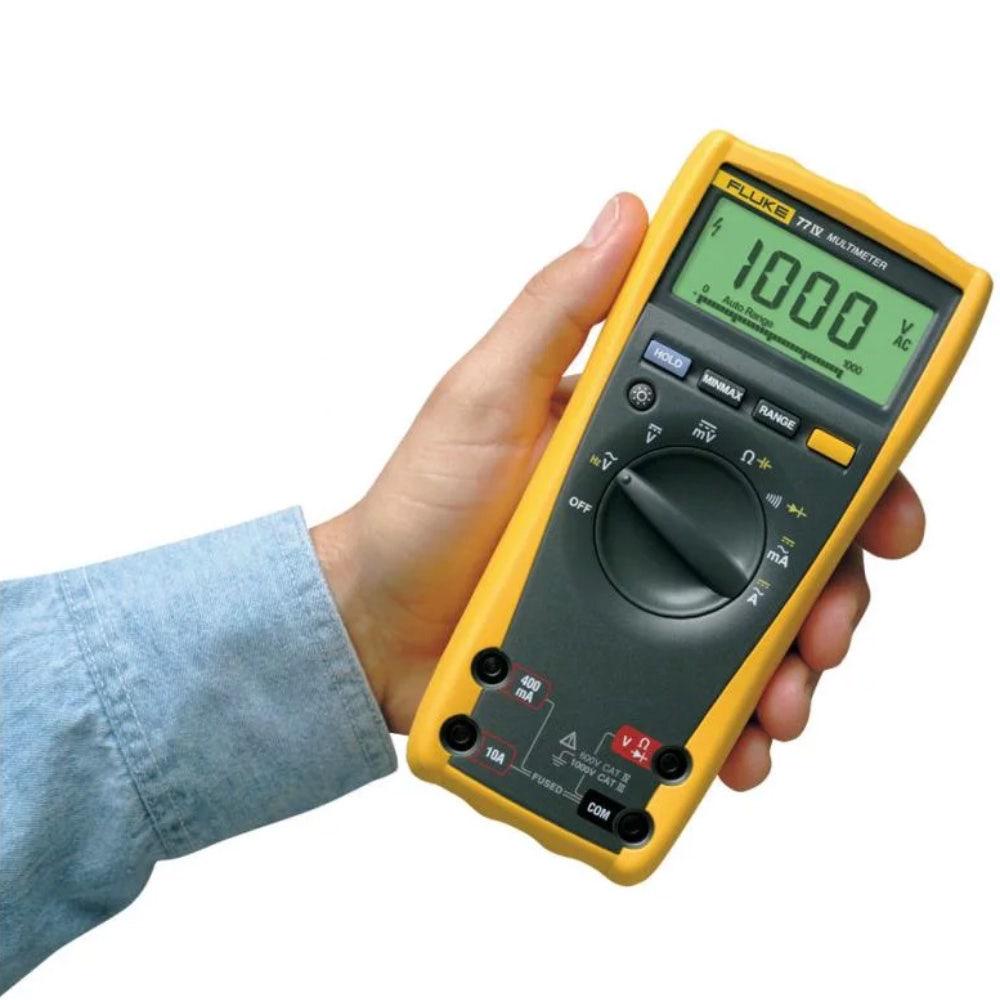

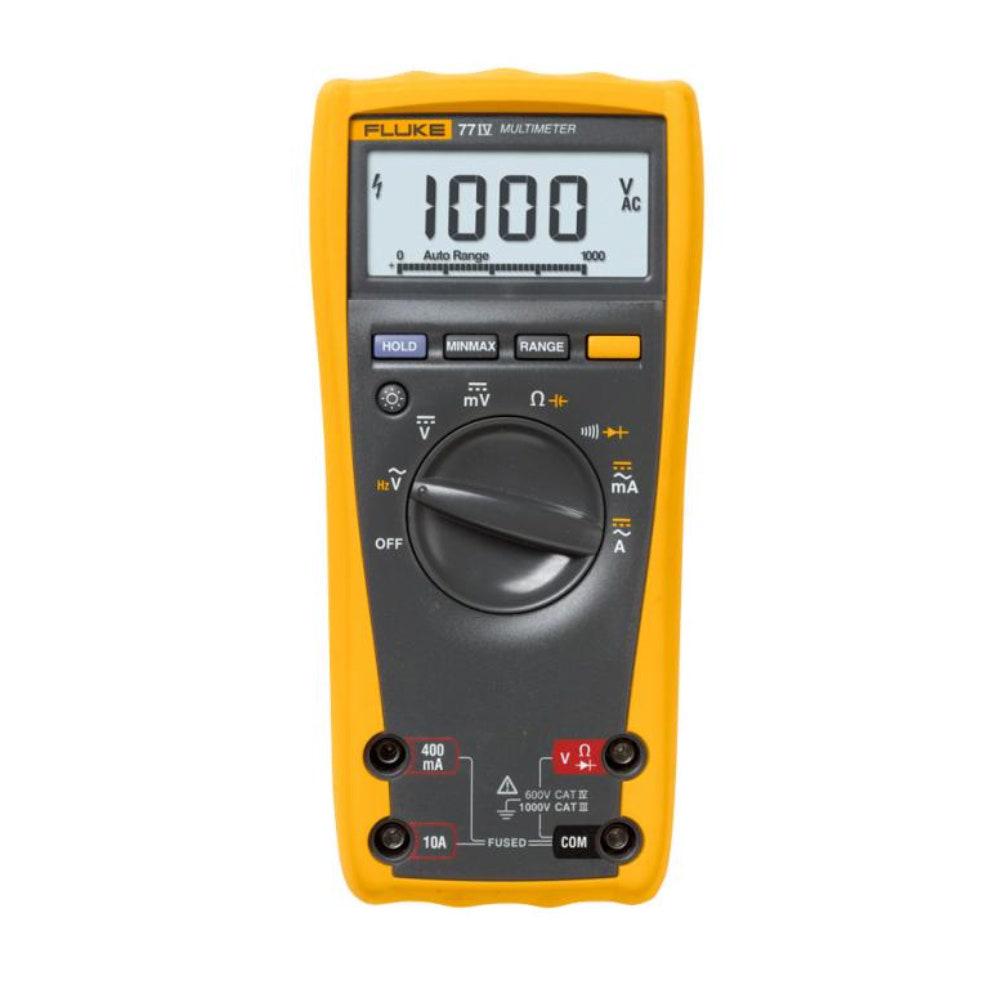

The Fluke 77 IV digital multimeter has the features needed to repair most electrical and electronic problems. This meter is simple to use and has significant improvements over Fluke's original 70 Series with more measurement functions, conformance to the latest safety standards, and a much larger display that's easier to view.

Key Features

  • Wide 1000 V measurement range
  • Average responding AC measurements
  • 0.3% accuracy
  • 10 Amps continuous (20 A for 30 seconds)
  • Frequency and capacitance
  • Resistance and continuity
  • Large display
  • Backlight for work in dim areas
  • Min / Max to record signal fluctuations
  • Ergonomic overmolded housing with integrated probe holders
  • Free your hands with the optional TPAK magnetic hanger
  • Auto and Manual ranging
  • Meets Measurement Category 1000 V CAT III and Category IV 600 V safety standards

The 77 IV replaces the 77. Move up to superior utility and safety today.

Specifications

Specification Details
Voltage DC Range 6.000 V 1000 V | Best accuracy ±(0.3% + 1) | Best resolution 0.1 mV
Voltage AC Range 600.0 mV 1000V | Best accuracy ±(2.0% + 2) | Best resolution 1.0 mV
Amps AC Range 60.00 mA 10 A | Best accuracy 2.5% + 2 | Best resolution 0.01 mA
Amps DC Range 60.00 mA 10A | Best accuracy 1.5% + 2 | Best resolution 0.01 mA
Resistance Range 600.0 50 M | Best accuracy ±(0.5% + 1) | Best resolution 0.1
Capacitance Range 1nF 9,999 F | Best accuracy ±(1.2% + 2) | Best resolution 1 nF
Frequency Range 99.99Hz 99.99kHz | Best accuracy ±(0.1% + 1) | Best resolution 0.01 Hz
Safety ANSI / ISA S82.02.01, CSA C22.2 1010.1, IEC 61010 to 1000 V Measurement Category III, 600 V Measurement Category IV
Certifications CSA, TÜV (EN61010), , (N10140)
Maximum voltage between any terminal and earth ground 1000 V
Surge protection 8 kV peak per IEC 61010
Fuse for mA inputs 440 mA, 1000 V FAST Fuse
Fuse for A inputs 11 A, 1000 V FAST Fuse
Display Digital: 6000 counts, updates 4/sec | Bar graph: 33 segments, updates 32/sec | Frequency: 10,000 counts | Capacitance: 1,000 counts
Altitude Operating: 2,000 meters | Storage: 12,000 meters
Temperature Operating: -10°C to + 50°C | Storage: -40°C to + 60°C
Temperature coefficient 0.1 x (specified accuracy / °C ( 28°C)
Electromagnetic compatibility (EN 61326 1 1997): In an RF field of 3 V/M, accuracy = specified accuracy except in temperature: specified accuracy ±5°C (9°F)
Relative humidity (maximum non-condensing) 90% to 35°C | 75% to 40°C | 45% to 50°C
Battery life 400 hours typical (alkaline)
Part No FLU77-4
Barcode 95969365239
Brand Fluke
Net Weight (kg) 0.42
Product Length (mm) 430
Product Width (mm) 90
Product Height (mm) 185
