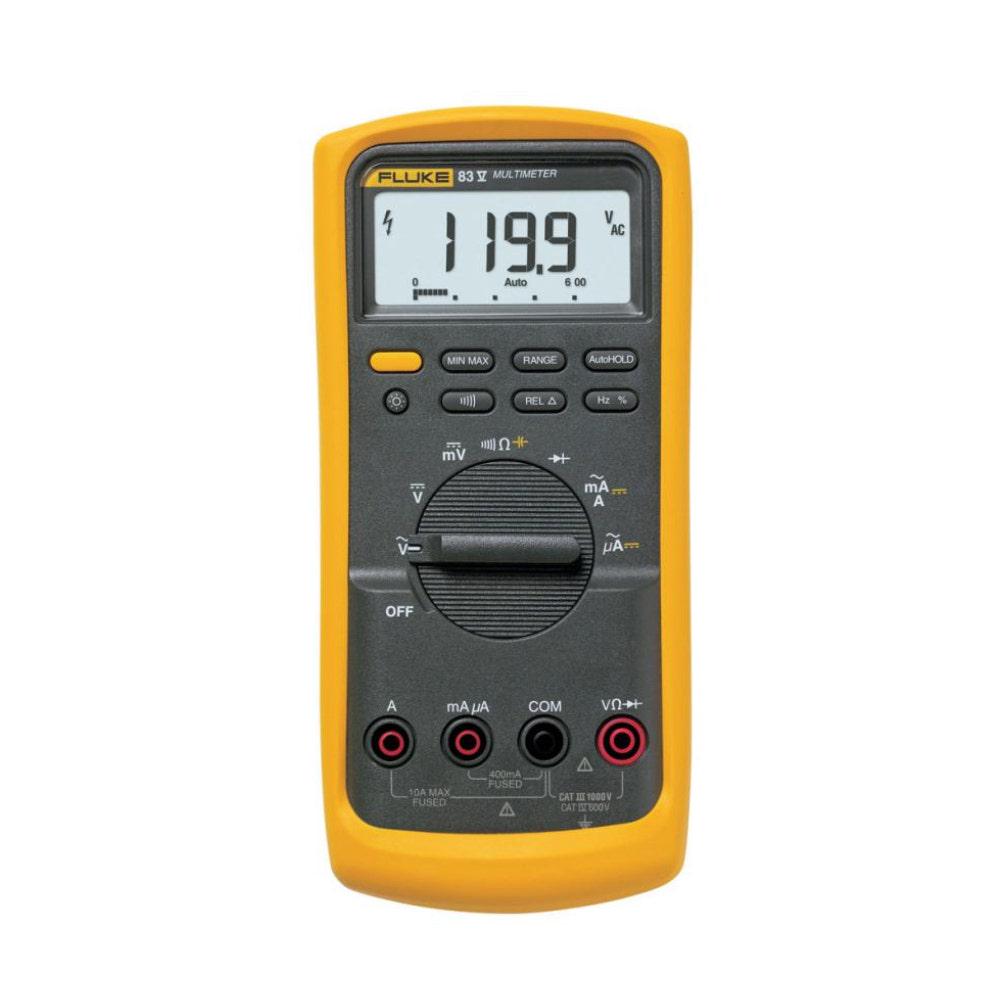

FLUKE CAT III 1000V, CAT IV 600V 83V Multimeter FLU83V

Features

• Trusted by industrial electricians globally
• High accuracy and advanced troubleshooting capabilities
• 6000 count display resolution for precise readings
• CAT III 1000 V, CAT IV 600 V safety rated
• Min/Max-Average recording with Min/Max Alert
• Lifetime warranty
• Optional magnetic hanger for hands-free operation
• Large digit display with bright, two-level backlight
• Measures up to 1000 V AC and DC
• Measures up to 10 A, with 20 A for 30 seconds
• Frequency measurement up to 200 kHz and % duty cycle
• Resistance, continuity, and diode testing capabilities
• Capacitance range up to 10,000 µF
• Relative mode for low ohm measurements
• Touch Hold function for stable readings
• Improved selectable sleep mode for battery longevity
• Access door for easy battery changes
• Classic design with detachable holster for storage
• Analog bargraph for quick signal changes
• Input Alert for incorrect jack usage
• Designed and built in the U.S.A.

Specifications

• Maximum voltage DC: 1000 V
• DC accuracy: ±(0.1% + 1)
• Maximum resolution DC: 100 µV
• Maximum voltage AC: 1000 V
• AC accuracy: ±(0.5% + 2)
• Maximum resolution AC: 0.1 mV
• Maximum current DC: 10 A (20 A for 30 seconds)
• DC current accuracy: ±(0.4% + 2)
• Maximum resolution DC current: 0.01 mA
• Maximum resistance: 50 M
• Resistance accuracy: ±(0.4% + 1)
• Maximum capacitance: 9,999 µF
• Capacitance accuracy: ±(1% + 2)
• Maximum frequency: 200 kHz
• Frequency accuracy: ±(0.005% + 1)
• Maximum duty cycle: 99.9%
• Duty cycle accuracy: ±(0.2% per kHz + 0.1%)
• Operating temperature: 20°C to +55°C
• Storage temperature: -40°C to +60°C
• Operating altitude: 2000 m
• Display: Digital 6000 counts, Analog 32 segments
• Size: 201 x 98 x 52 mm (with holster)
• Weight: 355 g
• Battery life: ~400 hours typical without backlight
• Shock rating: 1 Meter drop per IEC 61010
• Vibration: Per MIL PRF 28800 for Class 2 instruments
