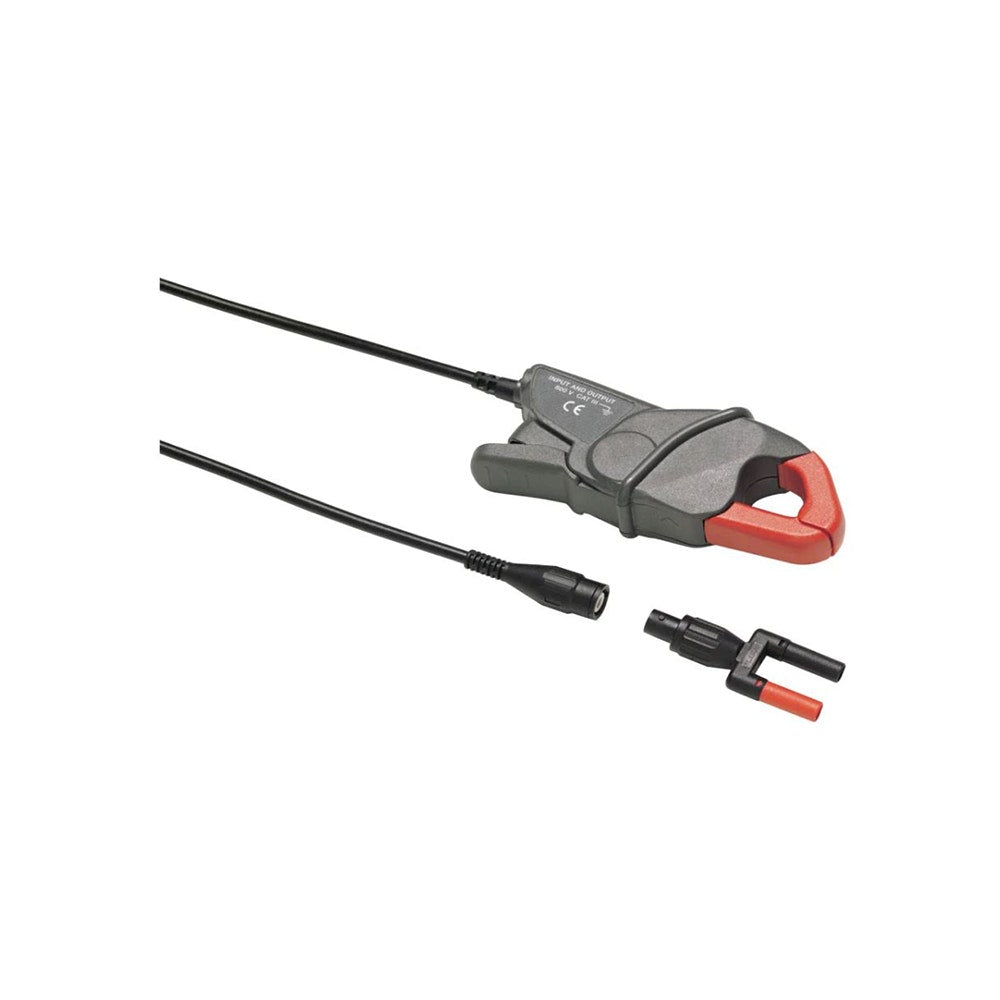

FLUKE AC Current Clamp FLUI200

Features

• Single range 200 A clamp-on AC Current Clamp
• Compatible with most Fluke multimeters and devices accepting shrouded banana plugs
• Dual range 20 A and 200 A clamp-on AC Current Clamp (i200s)
• Voltage output via safety insulated BNC connector (i200s)
• 1 mA per Amp output for easy meter reading
• Accurate current readings without circuit interruption
• Max conductor diameter: 20 mm
• CAT III 600 V safety rating
• Comes with dual banana to BNC adapter for multimeter connection

Specifications

• Nominal current range: 200 A
• Continuous current range: 0.5 A - 200 A
• Maximum non-destructive: 240 A
• Lowest measurable current: 0.5 A
• Basic accuracy: 1% + 0.5 A (48-65 Hz)
• Usable frequency: 40 Hz - 10 kHz
• Output level(s): 1 mA/A
• Maximum voltage: 600 V AC
• Maximum conductor size (busbar): 20 x 5 mm
• Output cable length: 1.5 m
• Shrouded banana plugs: Yes
