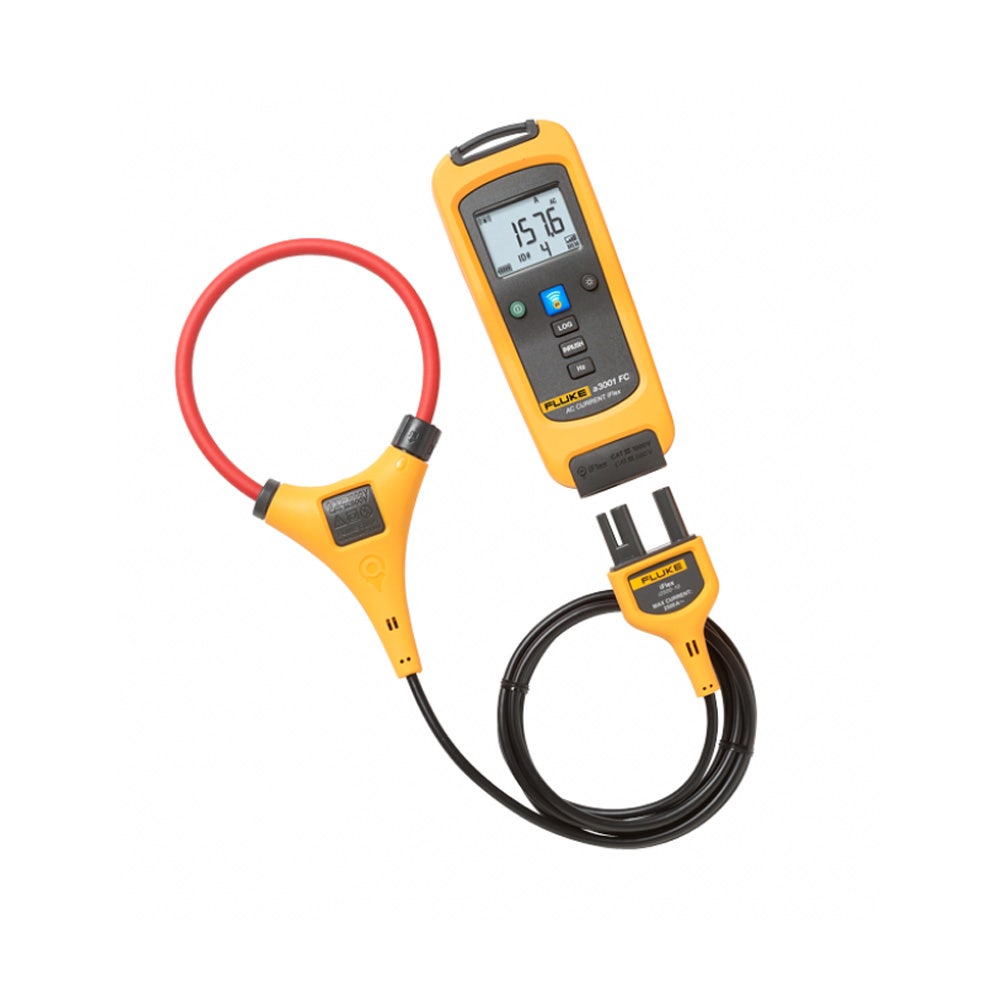

FLUKE a3001 FC Wireless iFlex AC Current Module FLUFLKA3001FC

Features

• Wireless iFlex AC Current Module allows sharing of test data via Fluke Connect app with ShareLive video call.
• Work safely near live electrical panels without bulky PPE.
• Log measurements remotely and access live readings from a safe distance.
• Measure up to 2500 A AC with ease around awkward sized conductors.
• Standalone meter or part of the Fluke Connect system.
• Logging function for recording up to 65,000 readings.
• Inrush function for capturing start-up currents.
• Magnetic hanging strap for convenient placement.
• Faster 3-phase testing, completing tasks in a fraction of the time.
• RF communications with a range of up to 20 m in unobstructed areas.
• Compatible with Fluke 3000 FC DMM, Fluke Ti200/300/400 Thermal Camera, and Fluke Connect Mobile app.

Specifications

• Range: 0.5 A to 2500 A AC
• Resolution: 0.1 A
• Accuracy: 3% ± 5 digits (5 Hz to 500 Hz)
• Crest factor (50 Hz/60 Hz): 3.0 at 1100 A, 2.5 at 1400 A, 1.42 at 2500 A
• LCD w/backlight: 3½ digits
• Log rate/interval: 1 sec minimum/adjustable by PC or front panel
• Battery type: 2 AA, NEDA 15 A, IEC LR6
• Battery life: 400 hours
• RF communications: 2.4 GHZ ISM Band
• Operating temperature: -10°C to +50°C
• Storage temperature: -40°C to +60°C
• Altitude: Operating: 2,000 m; Storage: 12,000 m
• EMC: EN 61326-1:2006
• Safety compliance: IEC 61010-1, 600 V CAT IV/1000 V CAT III, 3rd edition
• Ingress Protection (IP) rating: IP42
• Jaw opening: 25.4 cm (10 in) coil
