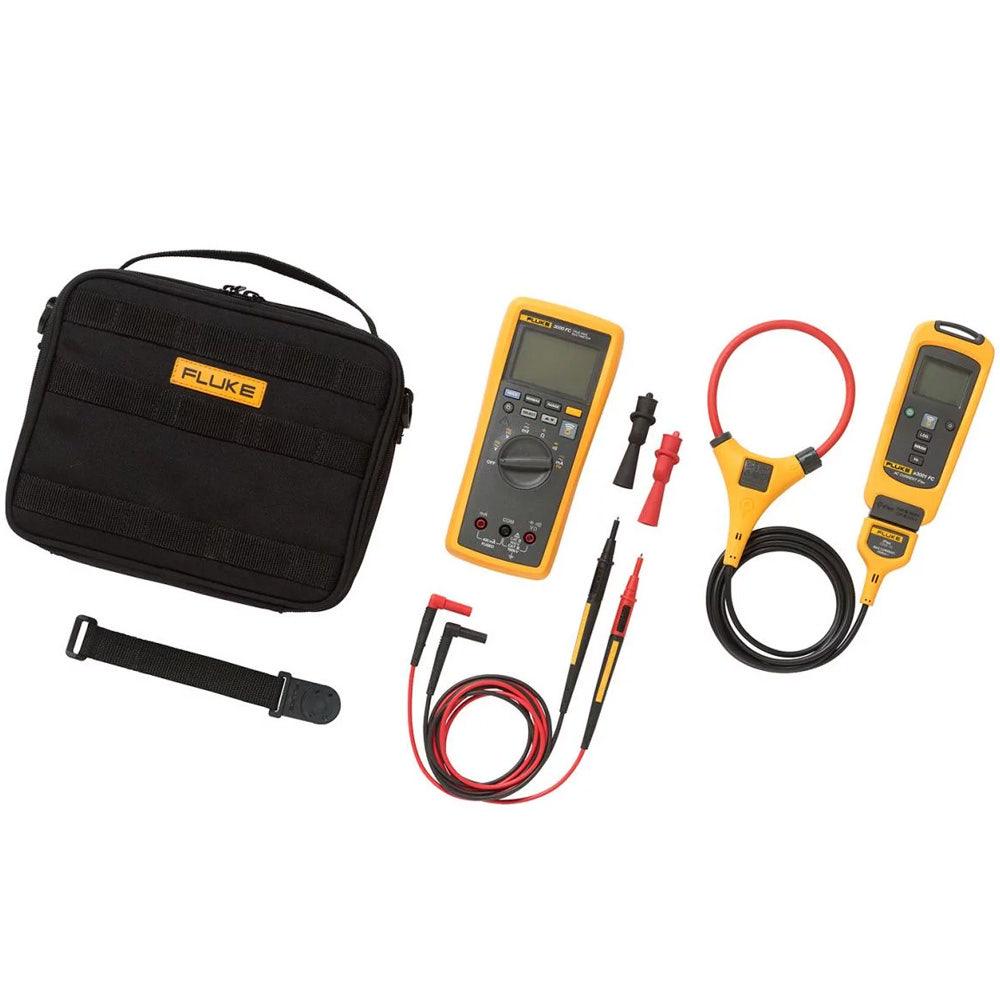

FLUKE a3001 FC Wireless iFlex AC Current Clamp Kit FLUFLKA3001FCKIT

Features

• Part of the Fluke Connect wireless test tools

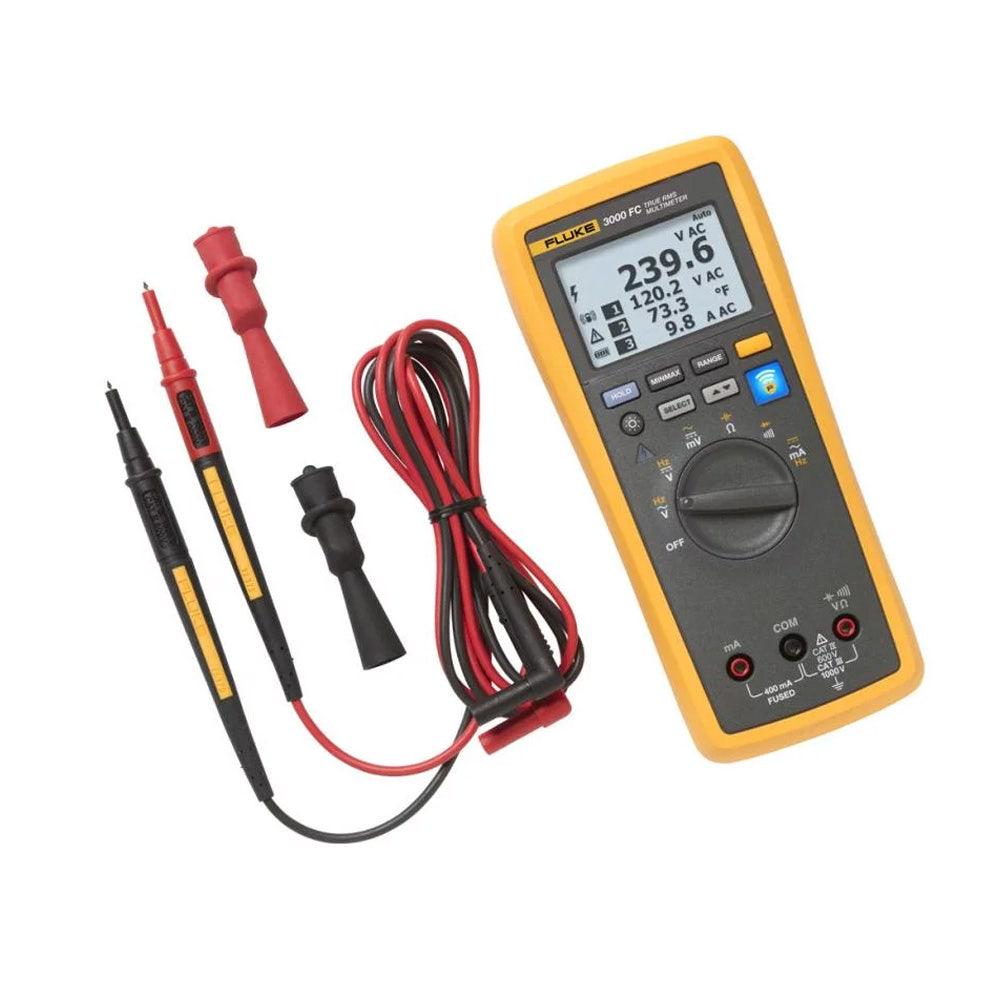

• View results up to 20 meters away with the 3000 FC Digital Multimeter
• Save time by collecting multiple measurements at once
• Ideal for three-phase systems or standalone measurements
• View readings through closed electrical panels from short distances
• Capture up to 65,000 time-stamped min/max/avg readings
• Increased safety by observing readings away from the test point
• Measure on moving machinery with only the module in harm's way
• AC and DC voltage measurements up to 1000V
• AC and DC current with 0.01 mA resolution
• Continuity, resistance, diode test, capacitance, and frequency measurements
• Logging function for saving measurements
• Inrush function available
• CAT III 1000 V, CAT IV 600 V; IP54 rating
• Flexible current probe for awkward sized conductors
• Standalone meter or part of a system

Specifications

• AC Voltage Range: 600.0 mV to 1000 V
• AC Voltage Accuracy: 1.0% + 3 (45 Hz to 500 Hz)
• DC Voltage Range: 600.0 mV to 1000 V
• DC Voltage Accuracy: 0.09% + 2
• Resistance Range: 600 / 1
• Maximum voltage between any terminal and earth ground: 1000 VDC or AC rms
• Input impedance (nominal): > 10 M
• Operating temperature: -10°C to 50°C
• Storage temperature: -40°C to 60°C
• Battery type: Three AA Alkaline batteries
• Battery life: 250 hours minimum
• RF communication range: Up to 20 m open air, 6.5 m obstructed
• Ingress Protection (IP) rating: IP54
• Pollution Degree: 2
• Fluke a3001 FC Module Range: 0.5 A to 2500 A AC
• Fluke a3001 FC Module Resolution: 0.1 A
• Fluke a3001 FC Module Accuracy: 3% ±5 digits
• Fluke a3001 FC Module Battery life: 400 hours
