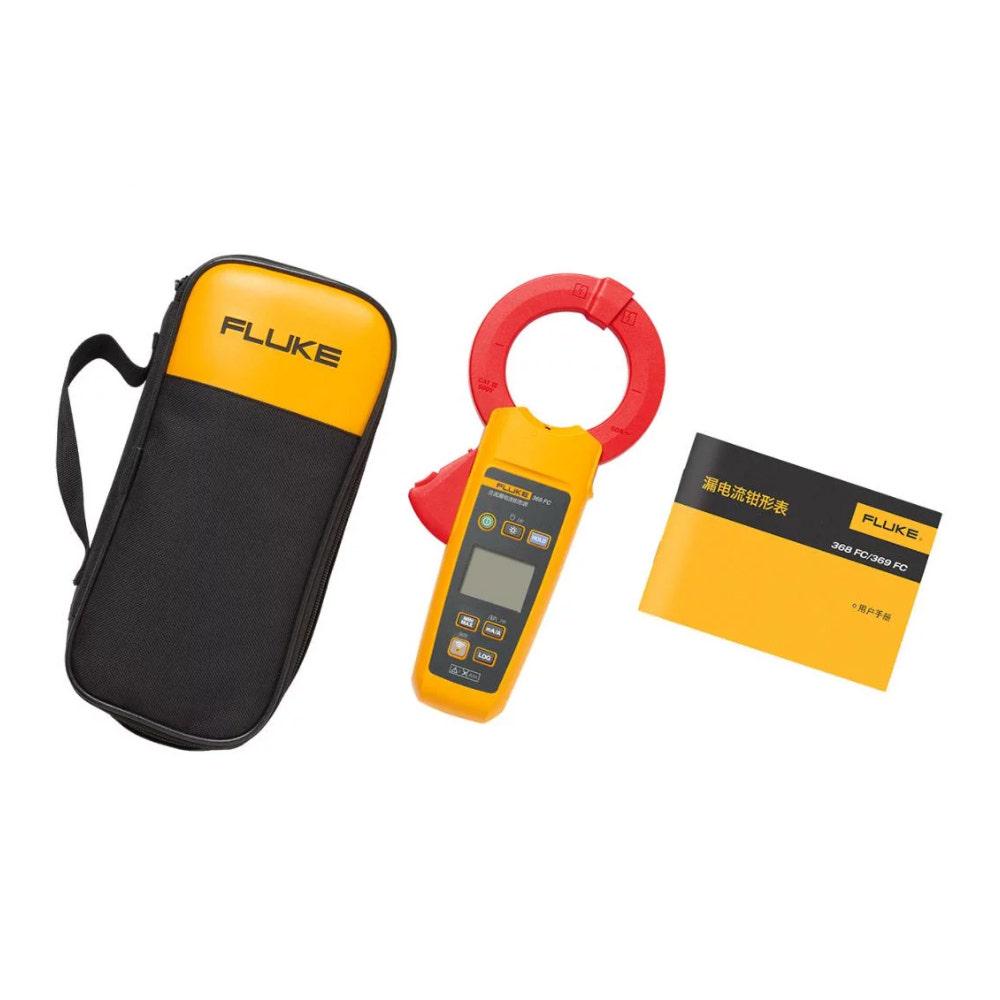

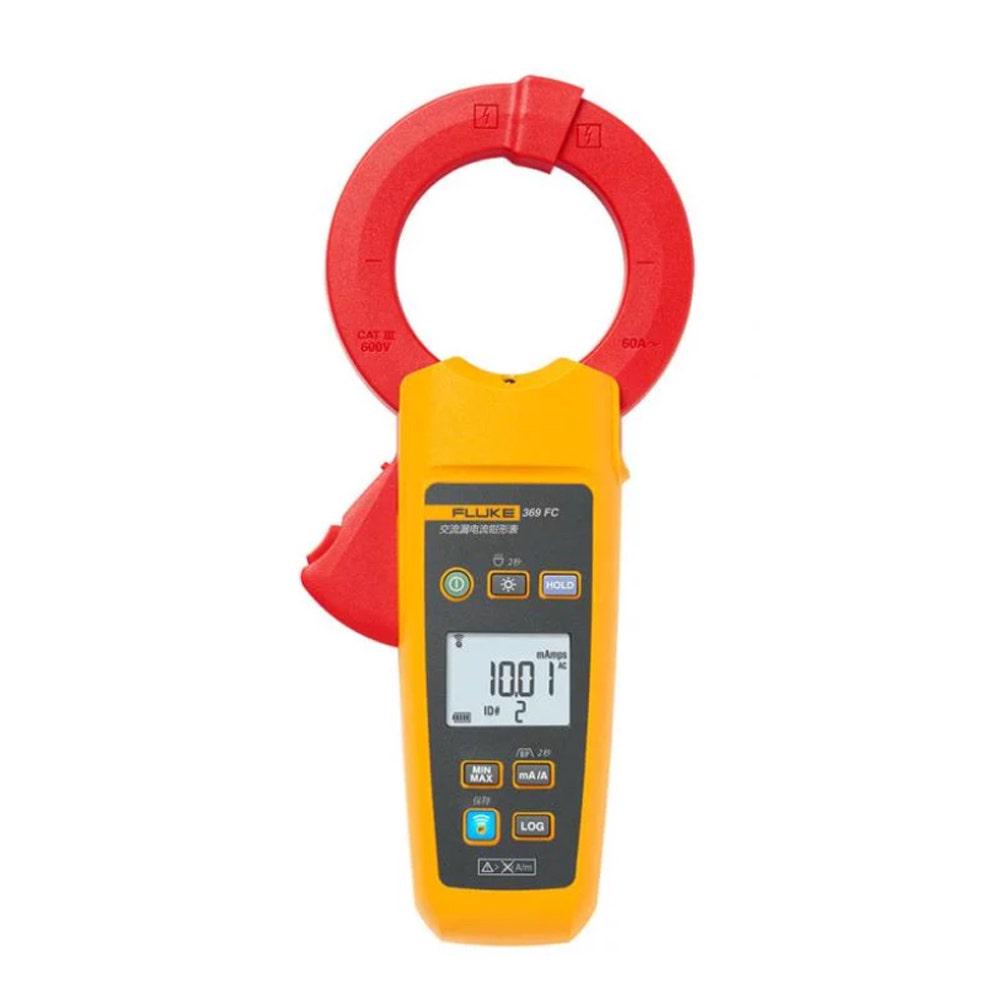

FLUKE 61mm 300a 369 FC Leakage Current Clamp Meter FLU369FC

Features

• True-rms measurements for accuracy with complex, non-sinusoidal waveforms
• Oversized 61 mm jaw for large conductors
• Highest resolution of 1 A, measuring up to 60 A
• Selectable filter function to eliminate unwanted noise
• Max/Min/Average readings with hold function
• Forward-facing LED worklight for dark areas
• Backlit display with auto off features for battery conservation
• CAT III 600V safety rating

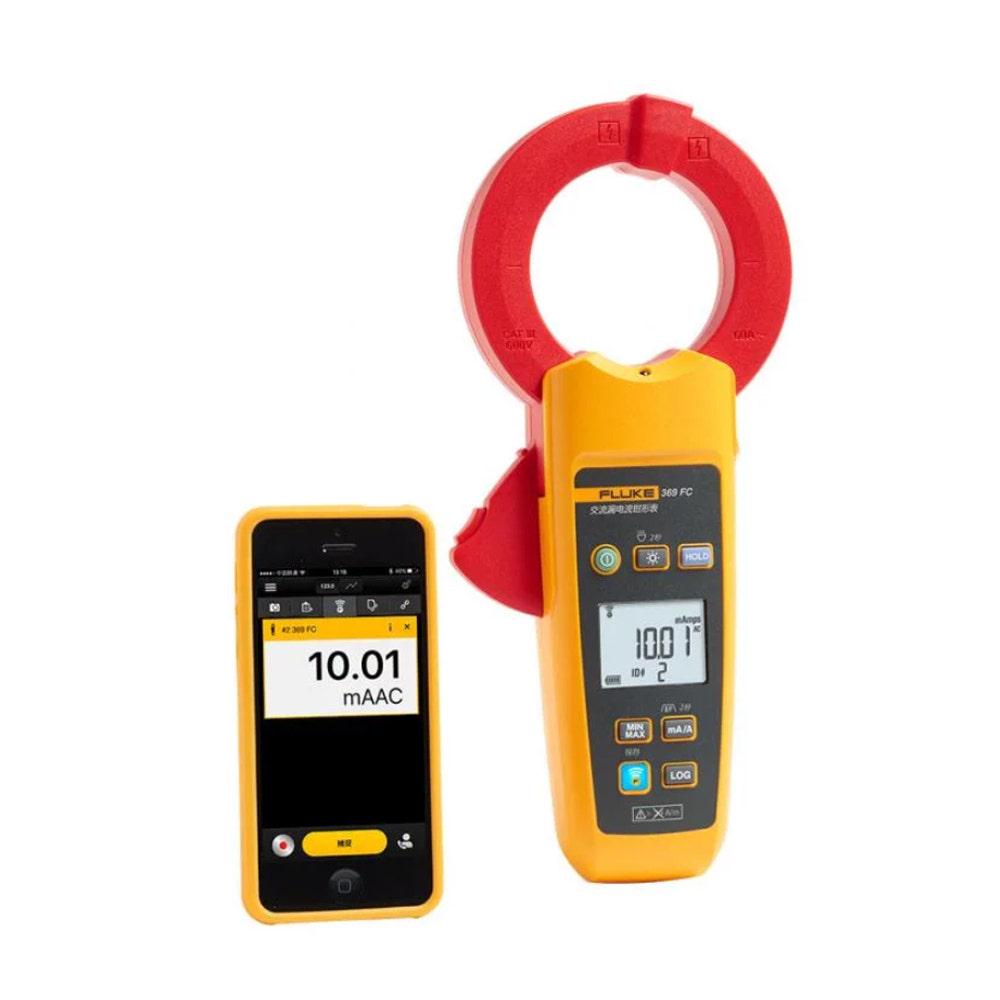

• Wireless data connectivity through Fluke Connect for tracking changes over time

Specifications

• Measurement function: Alternating current
• AC ampere range: mA, 30 mA, 300 mA, 3 A, 30 A, 60 A
• Range selection:
  • mA / A: manual selection
  • 3 mA / 30 mA / 300 mA: automatic selection
  • 3 A / 30 A / 60 A: automatic selection
• Range / Resolution:
  • 3 mA / 0.001 mA
  • 30 mA / 0.01 mA
  • 300 mA / 0.1 mA
  • 3 A / 0.001 A
  • 30 A / 0.01 A
  • 60 A / 0.1 A
• Accuracy filter activated (40 to 70 Hz), filter off (40 to 1 kHz):
  • mA 30 A = 1% + 5 digits
  • 60 A = 2% + 5 digits
• Frequency: 40 Hz to 1 kHz
• Crest Factor: 3
• Display (LCD): Digital readout: 3300 count
• Display refresh rate: 4 times / sec
• Maximum conductor diameter: 61 mm
• Dimensions: 257 x 116 x 46 mm
• Weight: 600 g
• Battery: 2 AA, IEC LR6, NEDA 15A, alkaline
• Expected battery life: over 150 hours without backlight and spotlight
• Automatic shut-down after 15 minutes of inactivity
• General safety: IEC 61010-1: Pollution Degree 2
• Measurement safety: IEC 61010-2-032: CAT III 600 V / CAT IV 300 V
• Operating temperature: -10 °C to +50 °C
• Storage temperature: -40 °C to +60 °C
• Operating humidity: non-condensing
• Protection class: IEC 60529: IP30 (jaw closed)
• Operating altitude: 2000 m
• Storage altitude: 12000 m
