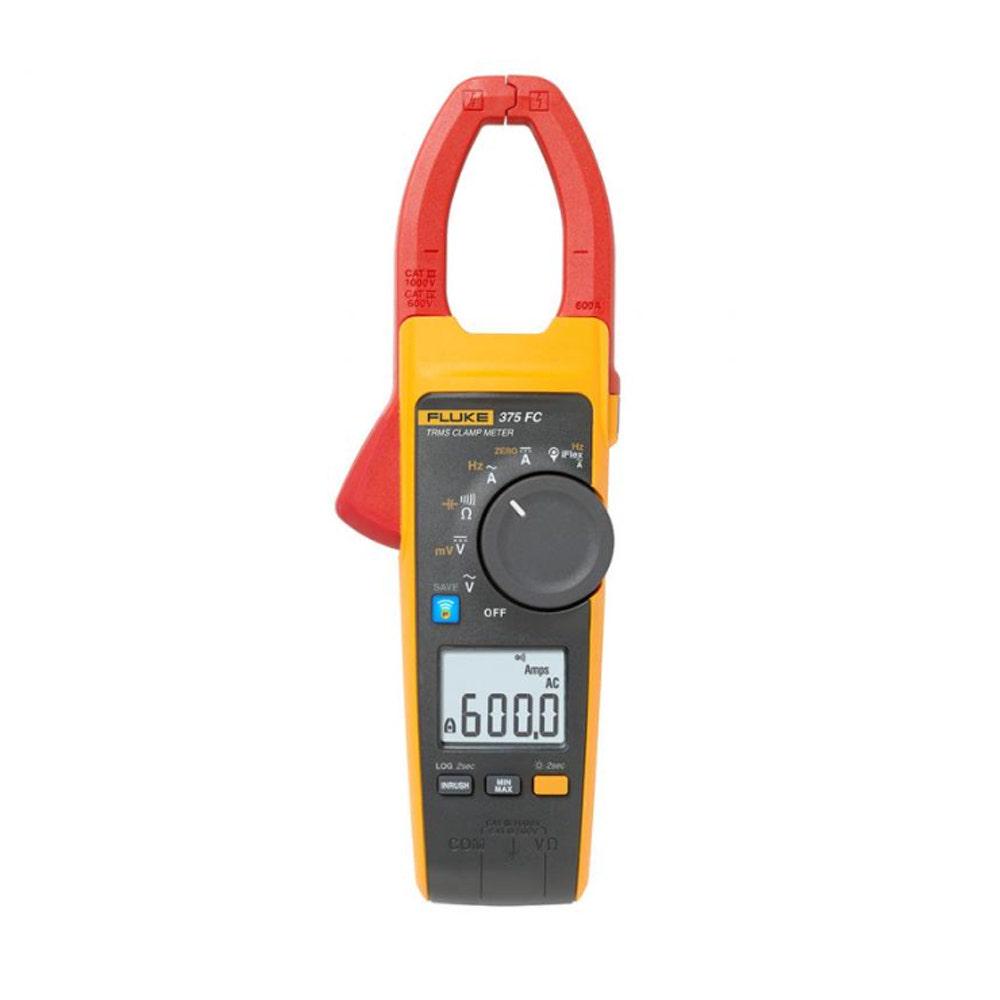

FLUKE 600A AC DC 375 FC True-RMS Clamp Meter FLU375FC

Features

• High-performance clamp meter measuring very low voltage and high resistance

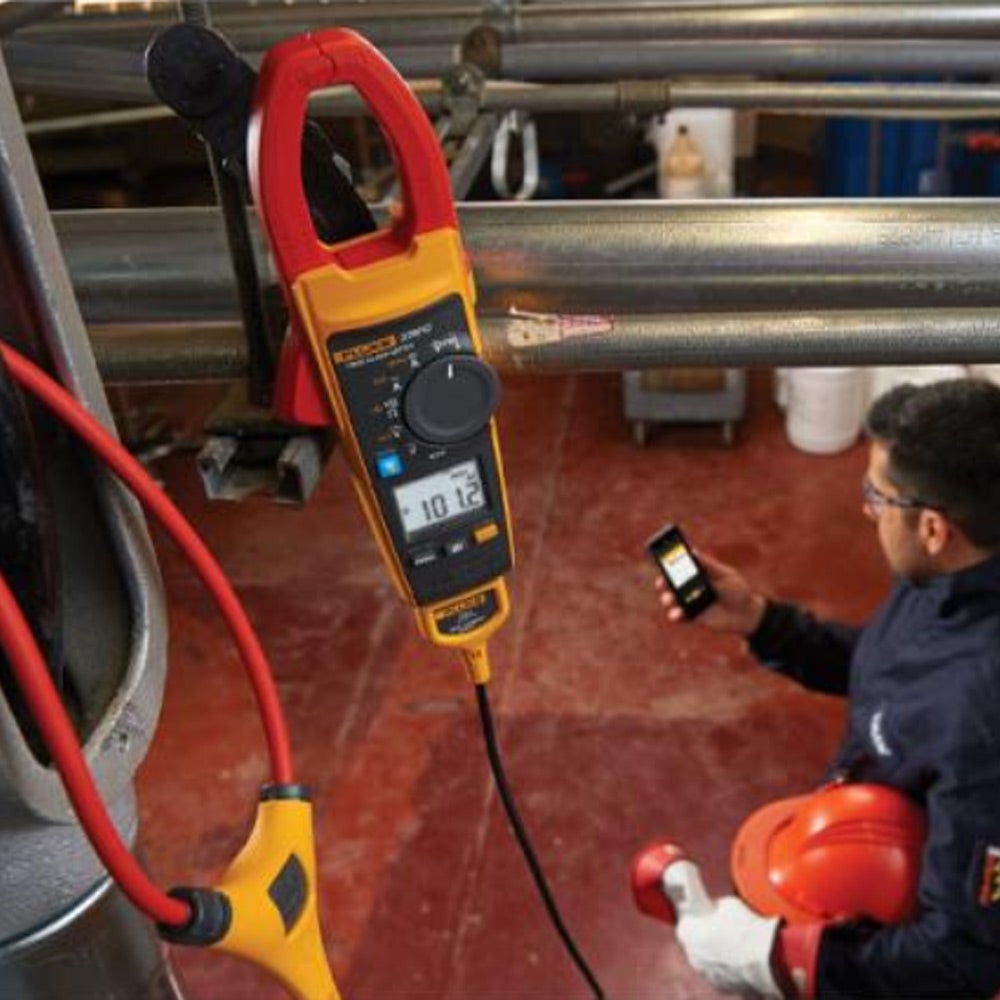

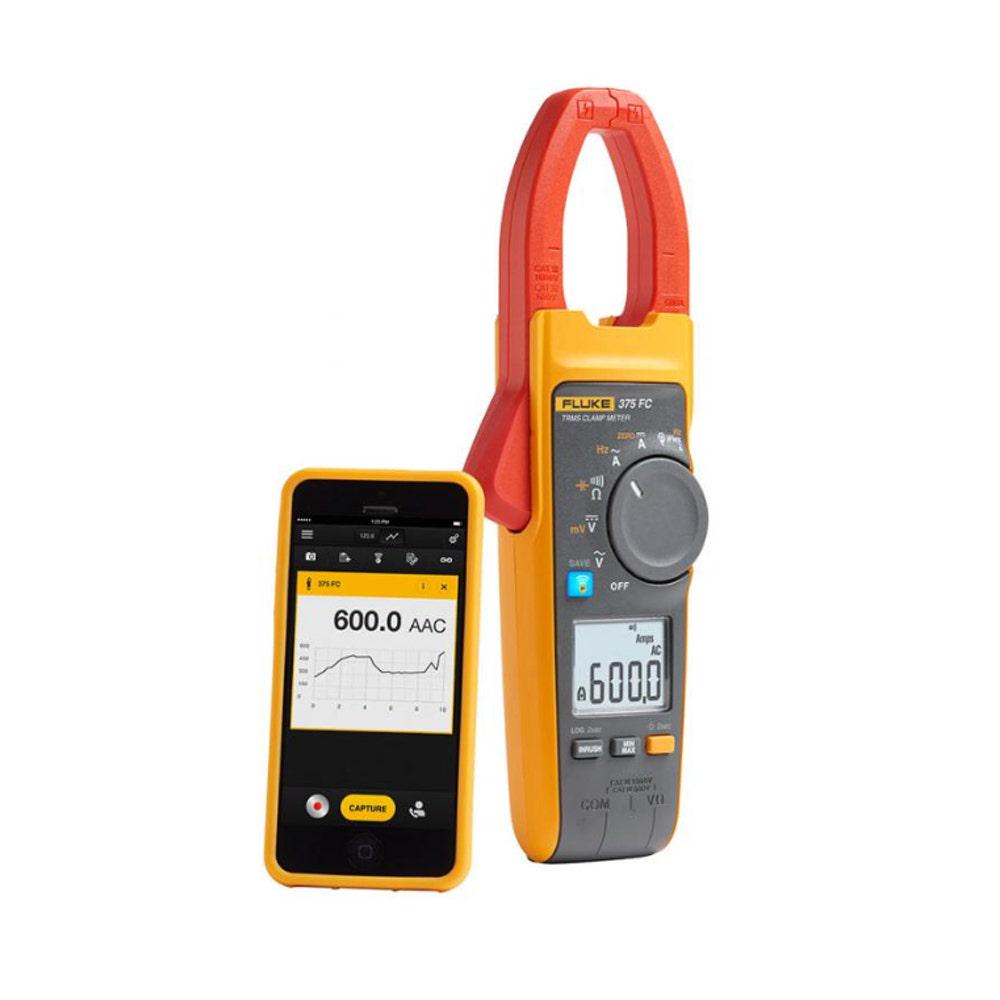

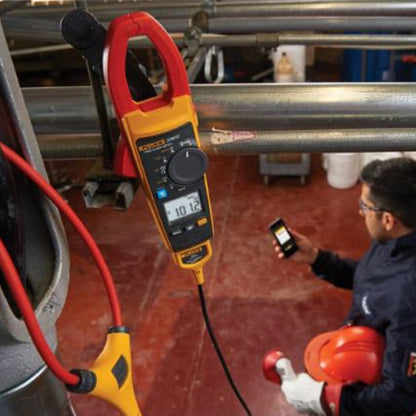

• Transmits measurements to smartphones via Fluke Connect for safe viewing distance
• Measures AC and DC current up to 600 A, and AC and DC voltage up to 1000 V
• Compatible with optional iFlex flexible current probe for up to 2500 A AC measurements
• True-RMS voltage and current measurements for accurate non-linear signal troubleshooting
• Logs and trends measurements while performing other tasks
• Includes Min/Max/Avg and inrush recording for capturing variations automatically
• Features CAT III 1000 V, CAT IV 600 V safety rating
• Measures capacitance up to 1000 µF
• Measures frequency up to 500 Hz and resistance up to 60 k? with continuity detection
• Runs on two AA alkaline batteries

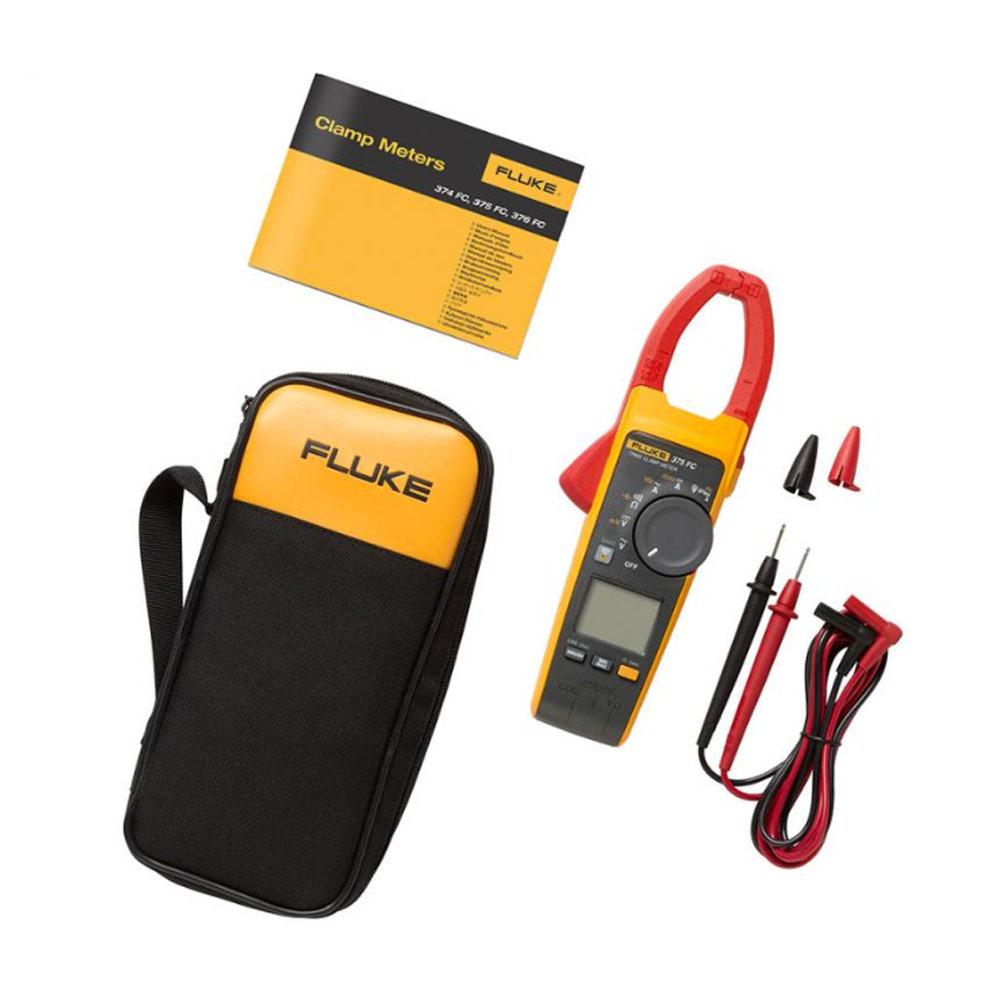

• Includes batteries, a soft carrying case, and a three-year warranty
• Compatible with optional TPAK magnetic hanging strap

Specifications

• AC Current via Jaw: Range 600.0 A, Resolution 0.1 A, Accuracy 2% ±5 digits (10 Hz to 100 Hz)
• DC Current: Range 600.0 A, Resolution 0.1 A, Accuracy 2% ±5 digits
• AC Voltage: Range 1000 V, Resolution 0.1 V (600.0 V), Accuracy 1.5% ±5 digits (20 Hz to 500 Hz)
• DC Voltage: Range 1000 V, Resolution 0.1 V (600.0 V), Accuracy 1% ±5 digits
• Frequency via Jaw: Range 5.0 Hz to 500.0 Hz, Resolution 0.1 Hz, Accuracy 0.5% ±5 digits
• Resistance: Range 60 k?, Resolution 0.1 (600), Accuracy 1% ±5 digits
• Capacitance: Range 1000 µF, Resolution 0.1 µF (100 µF), Accuracy 1% ±4 digits
• Operating temperature: -10 °C to +50 °C
• Storage temperature: -40 °C to +60 °C
• Size: 249 x 85 x 45 mm
• Weight: 395 g
• Jaw opening: 34 mm
• Safety: IEC 61010-1, Pollution Degree 2, CAT III 1000 V / CAT IV 600 V
