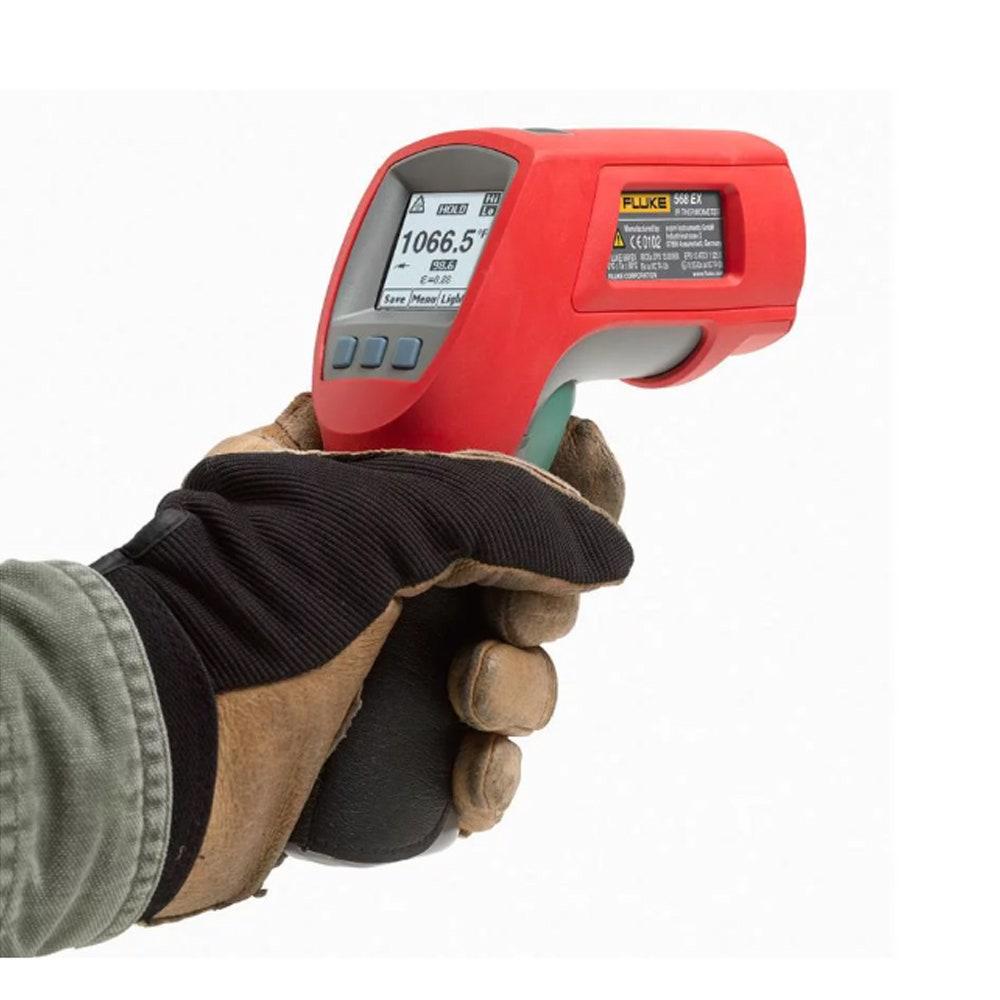

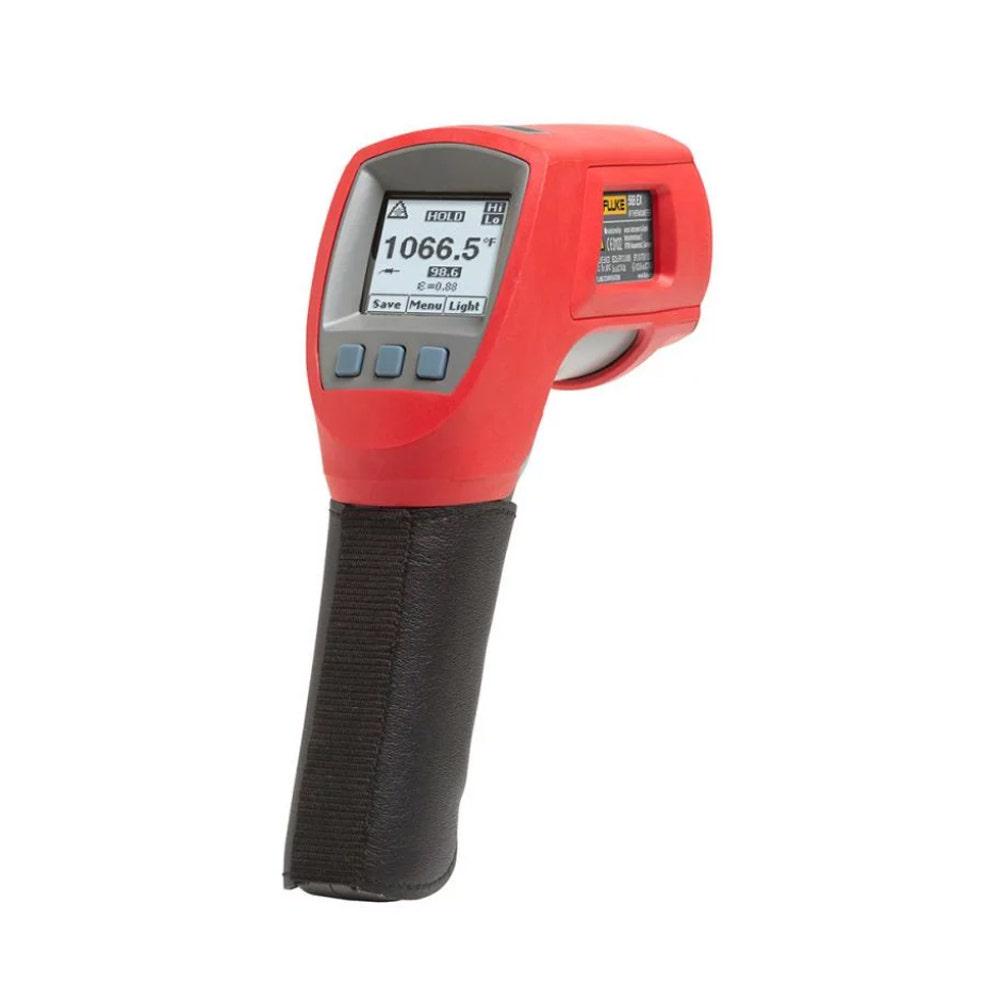

FLUKE 568 Ex Intrinsically Infrared Thermometer FLU568-EX

Features

• Intrinsically safe infrared and contact thermometer
• Certified for Class I Div. 1 and Div. 2 or Zone 1 and 2 hazardous environments
• Temperature measurement range: -40°C to 800°C (-40°F to 1472°F)
• Distance-to-spot ratio of 50:1 for measuring smaller objects from a distance
• Quick three-button interface for easy operation
• Audible and visual alarms for measurements outside set limits
• 1% measurement accuracy
• Includes thermocouple K bead probe and two-year warranty
• Rugged, ergonomic design suitable for tough environments
• Compatible with mini-connector K-type thermocouples
• Soft-key buttons for convenient access to advanced features
• Data capture of up to 99 points for easy transfer via USB
• Powered by two AA batteries
• Adjustable emissivity for accurate surface measurements
• Two-level backlight adapts to different lighting conditions
• Conductive case included for safe transport in hazardous areas

Specifications

• Infrared temperature range: -40°C to 800°C (-40°F to 1472°F)
• Infrared accuracy: > 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater
• Display resolution: 0.1°C / 0.1°F
• Infrared spectral response: 8 µm to 14 µm
• Thermocouple type-k input temperature range: -270°C to 1372°C (-454°F to 2501°F)
• Thermocouple type-k input accuracy: -40°C: ±1% or 1°C, whichever is greater
• D:S (distance to measurement spot size): 50:1
• Minimum spot size: 19 mm (0.75 in)
• Emissivity adjustment: By built-in table or digitally adjustable from 0.10 to 1.00
• Data storage: 99 points
• Hi/Low alarms: Audible and two-color visual
• Min/Max/Avg/Dif: Yes
• Display: Dot matrix with function menus
• Backlight: Two levels, normal and extra bright
• Trigger lock: Yes
• Switchable Celsius and Fahrenheit: Yes
• Power: 2 AAA/LR03 type-approved batteries
• Battery life: 4 hours with laser and backlight on; 100 hours off
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Storage temperature: -20°C to 60°C (-40°F to 140°F)
• Bead thermocouple type-k range: -40°C to 260°C (-40°F to 500°F)
• Bead thermocouple type-k accuracy: ±1.1°C (2.0°F) from 0°C to 260°C
