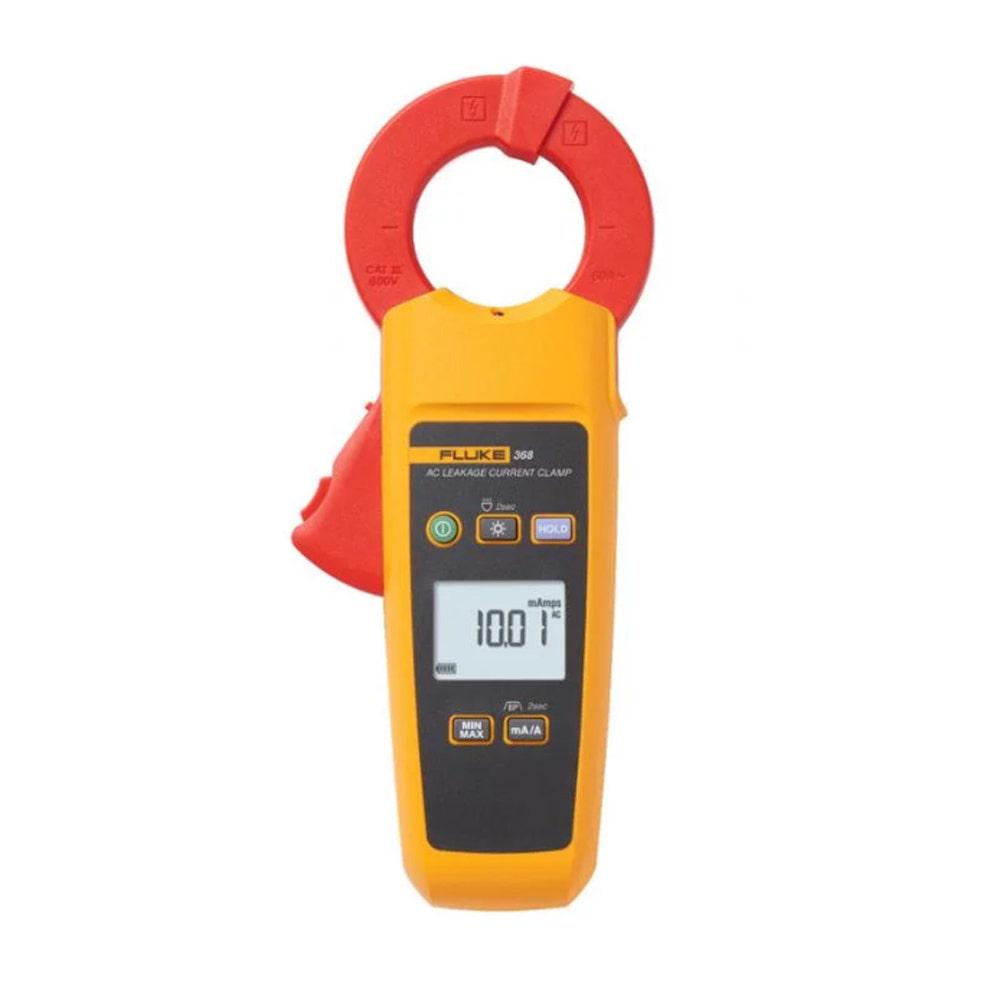

FLUKE 40mm 300a 368 FC Leakage Current Clamp Meter FLU368FC

Features

• True-rms measurements ensure accuracy with complex, non-sinusoidal waveforms
• 40 mm jaw opening for large conductors
• Max resolution of 1 A, measures up to 60 A
• Selectable filter function eliminates unwanted noise
• Includes Max/Min/Average readings and hold function
• Forward-facing LED worklight for dark areas
• Backlit display with auto-off features for battery conservation
• CAT III 600V safety rating
• Detects and documents leakage current to prevent unplanned downtime
• Large 40 mm diameter jaw captures small leakage signals

Specifications

• Measurement function: Alternating current
• AC ampere range: 3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A
• Range selection: mA/A manual selection; 3 mA/30 mA/300 mA auto selection; 3 A/30 A/60 A auto selection
• Range/Resolution: 3 mA / 0.001 mA; 30 mA / 0.01 mA; 300 mA / 0.1 mA; 3 A / 0.001 A; 30 A / 0.01 A; 60 A / 0.1 A
• Accuracy (filter activated): 3 mA to 30 A = 1% + 5 digits; 60 A = 2% + 5 digits
• Frequency range: 40 Hz to 1 kHz
• Crest Factor: 3
• Display: LCD digital readout with 3300 count
• Display refresh rate: 4 times/sec
• Maximum conductor diameter: 40 mm
• Dimensions: 234 x 101 x 46 mm
• Weight: 500 g
• Battery: 2 AA, IEC LR6, alkaline
• Expected battery life: Over 150 hours without backlight use
• Automatic shut-down after 15 minutes of inactivity
• General safety: IEC 61010-1: Pollution Degree 2
• Measurement safety: IEC 61010-2-032: CAT III 600 V / CAT IV 300 V
• Operating temperature: -10 °C to +50 °C
• Storage temperature: -40 °C to +60 °C
• Operating humidity: Non-condensing, up to 90% relative humidity (10 °C to 30 °C)
• Protection class: IEC 60529: IP30 (jaw closed)
• Operating altitude: 2000 m
• Storage altitude: 12000 m
