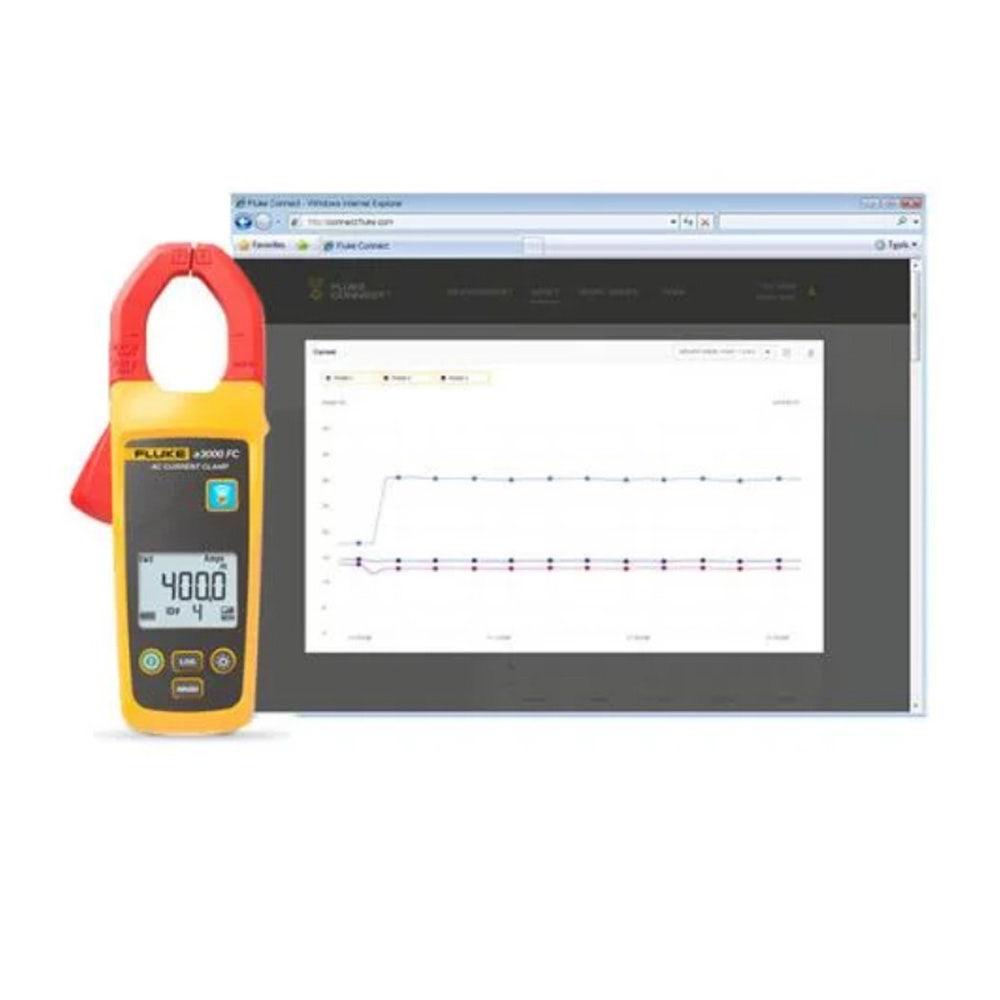

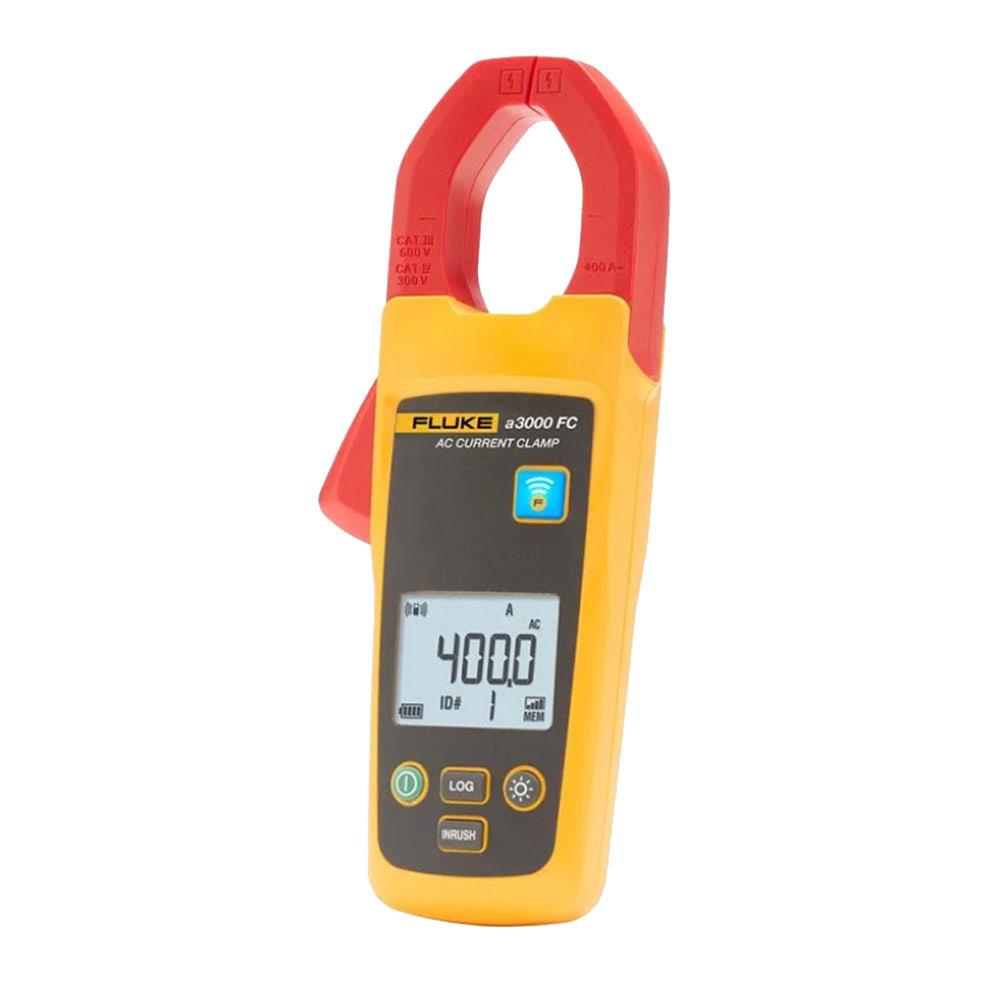

FLUKE 400A FC Wireless AC Current Clamp Module FLUFLKA3000FC

Features

• See, save, and share data in the field.
• Compatible with Fluke Connect app for data sharing via ShareLive video call.
• Connects to other Fluke Connect remote modules for safe readings from a distance.
• Send measurements to your smartphone for easy saving and sharing.
• Log measurements while addressing other issues to capture intermittent faults.
• Work safely near live panels with reduced personal protective equipment (PPE).
• Easily access live readings without exposure to electrical hazards.
• Faster and cost-effective 3-phase testing with less downtime.
• Take 3-phase measurements in 1/3 of the time with real-time data on a single screen.
• Logging function captures up to 65,000 readings.
• True-RMS AC clamp meter measures up to 400 A AC.
• Use as a standalone tool or part of a complete system.
• Inrush function for precise measurements.
• Compatible with various Fluke Connect devices, including DMMs and infrared cameras.

Specifications

• Range: 0.5 A to 400.0 A
• Resolution: 0.1 A
• Accuracy: 2% ± 5 digits (10 Hz to 100 Hz), 2.5% ± 5 digits (100 Hz to 500 Hz)
• Inrush: Max displayed reading - 999.9A
• LCD w/backlight: 3½ digits
• Log rate/interval: 1 sec minimum, adjustable by PC
• Battery type: 2 AA, NEDA 15 A, IEC LR6
• Battery life: 400 hours
• Memory: Record up to 65,000 readings
• RF communications: 2.4 GHz ISM Band
• RF communication range: Up to 20 m (open air), 6.5 m (sheetrock wall), 3.5 m (concrete wall)
• Operating temperature: -10°C to +50°C
• Storage temperature: -40°C to +60°C
• Operating humidity: Up to 90% at 35°C
• Altitude: Operating: 2,000 m, Storage: 12,000 m
• EMC: EN 61326-1:2006
• Safety compliance: IEC 61010-1, 600 V CAT III
• Safety rating: CAT III 600 V
• Ingress Protection (IP) rating: IP30
• Jaw opening: 34 mm (1.33 in)
• Size (HxWxD): 20.3 cm x 7.49 cm x 3.55 cm (8 in x 2.95 in x 1.4 in)
