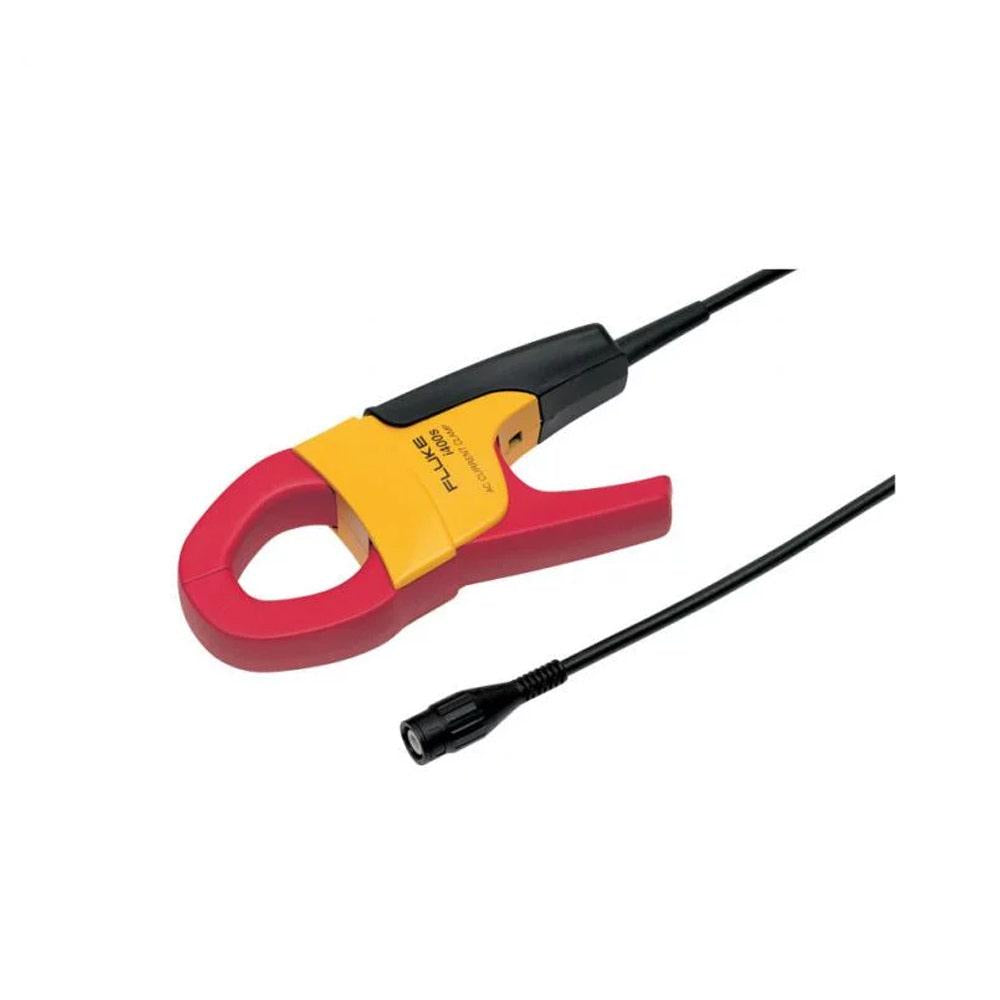

FLUKE 400A AC Current Clamp FLUI400S

Features

• Designed to extend the current ranges of multimeters and oscilloscopes
• Available for both AC and AC/DC environments
• Only clamp with CAT IV 600 V / CAT III 1000 V safety rating
• Maximum utility in a compact design
• Measures up to 400 A AC
• Accurate current readings without disrupting the circuit
• Soft, non-slippery overmold handle for comfortable grip
• Optional PM9081/001 BNC/Banana adapter for DMMs
• Two measurement ranges: 40 A and 400 A
• 10 mV/Amp output for 40 A range; 1 mV/Amp output for 400 A range
• Maximum conductor diameter: 32 mm

Specifications

• Nominal current range: 40 A Range (0.5 A to 40 A), 400 A Range (5 A to 400 A)
• Basic accuracy: 40 A Range (2% + 0.015 A), 400 A Range (2% + 0.04 A)
• Phase shift: 0.5 to 1 A (Unspecified), 1 A to 5 A (4°), 5 A to 10 A (3°), 10 A to 20 A (3°), 20 A to 40 A (2°), 40 A to 400 A (Unspecified)
• Typical bandwidth: 5 Hz - 10 kHz for both ranges
• Output levels: 10 mV/A for 40 A Range, 1 mV/A for 400 A Range
• Crest factor: 40 A Range (3), 400 A Range (3 to 300 A, 2.5 to 400 A)
• Safety rating: CAT IV 600 V, CAT III 1000 V
• Maximum non-destructive current: 1000 V AC
• Output cable length: 2.5 m (8.2 ft)
• BNC adapter included: Yes
• Dimensions: 150 x 70 x 30 mm
• Weight: 114 g
