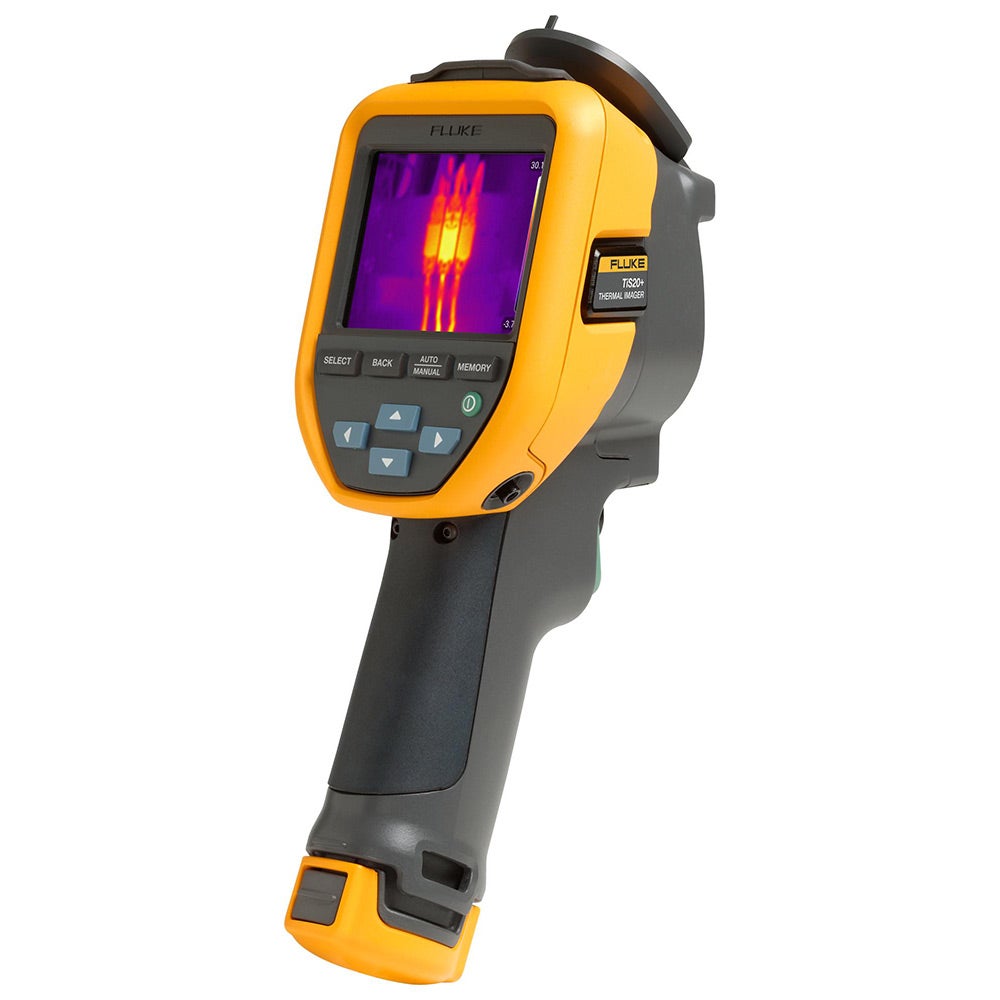

FLUKE -40 to 400 degreesC Thermal Imaging Camera FLUTIS20PLUSMAX-9HZ

Features

• Continuous touchscreen IR-Fusion
• 5-hour battery life
• Drop resistant up to 2 meters
• IP54 water and dust resistant enclosure
• Automatically organize thermal images with Fluke Connect Asset Tagging
• Infrared resolution: 120 x 90 (10,800 pixels)
• IFOV (spatial resolution): 7.6 mRad, D:S 130:1
• Field of view: 50° H x 38° V
• Minimum focus distance: 50cm (20 inches)
• Fixed focus system
• Data transfer via Mini USB to PC
• Fluke Connect instant upload capability
• IR-Fusion technology: AutoBlend from 0% to 100%
• 3.5" LCD touchscreen display (landscape)
• Display resolution: 320 x 240 LCD
• Thermal sensitivity (NETD): 60 mK
• Frame rate: 9 Hz
• Internal memory: 4GB, expandable with micro SD up to 32GB
• AC operation with power supply (100 V AC to 240 V AC, 50/60 Hz)
• Power saving: Automatic Shutdown options (5, 10, 15, 20 minutes, or never)
• Infrared spectral band: 8 m to 14 m (long wave)
• Operating temperature range: -10 °C to +50 °C (+14 °F to +122 °F)
• Storage temperature range: -40 °C to 70 °C (-40 °F to 158 °F)
• Relative humidity: 95% non-condensing
• IEC 61010-1: Pollution Degree 2 safety compliance
• Electromagnetic compatibility: IEN 61326-1, CISPR 11: Group 1, Class A
• Vibration resistance: 10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6
• Shock resistance: 30 g, 11 ms, IEC 60068-2-27

Specifications

• Part No: FLUTIS20PLUSMAX-9HZ
• Barcode: 95969979436
• Brand: Fluke
