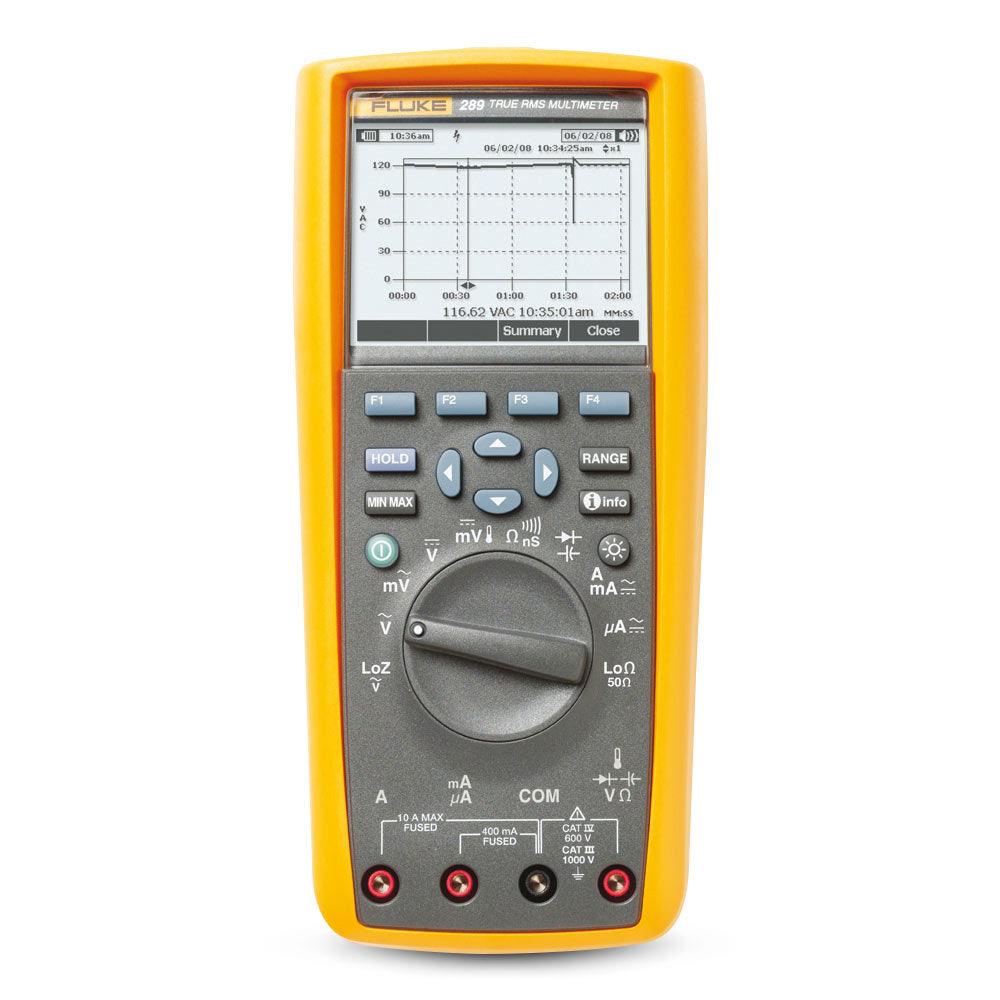

FLUKE 289 True-RMS Data Logging Multimeter FLU289

Features

• Fluke 289 True-RMS Logging Multimeter detects small issues before they escalate
• High-performance DMM designed for electronics, plant automation, and power distribution
• Compatible with Fluke Connect using ir3000 FC wireless connector (sold separately)
• Log and graphically review up to 10,000 recorded events with TrendCapture
• 14x zoom on trend for detailed data analysis without a PC
• ShareLive video call feature for instant team collaboration (requires ir3000 FC connector)
• TrendCapture displays logged data to identify anomalies quickly
• Selectable AC filter for steady readings in noisy environments
• Low Pass filter for accurate measurements on noisy equipment
• LoZ Volts feature eliminates ghost voltages; ideal for live power testing
• Adjustable recording and auto hold thresholds for new event detection
• Large 50,000 count, 1/4 VGA dot matrix display with backlight
• Expanded memory allows logging of 15,000 events without PC download
• Two terminal 50 ohm range with 1 milliohm resolution for resistance measurements
• Onboard help screens accessible via the "i" button
• Real-time clock for automatic time stamping of saved readings
• Relative mode for removing test lead resistance in low ohms or capacitance
• True-RMS AC voltage and current for precise measurements on non-linear signals
• Measures currents up to 10 A (20 A for 30 seconds)
• Capacitance range up to 100 mF
• Peak capture to record fast transients (250 µs)
• Includes premium test leads and alligator clips
• Optional magnetic hanger for hands-free viewing
• FlukeView forms for documenting and analyzing measurements
• Limited lifetime warranty

Specifications

• DC volts: 50.000 mV to 1000.0 V, Basic accuracy 0.025%
• AC volts: 50.000 mV to 1000.0 V, Basic accuracy 0.4% (True-RMS)
• DC current: 50.000 mA to 5000.0 A, Basic accuracy 0.05%
• AC current: 50.000 mA to 5000.0 A, Basic accuracy 0.6% (True-RMS)
• Temperature: -200.0°C to 1350.0°C, Basic accuracy 1.0%
• Resistance: 50.000 ? to 500.0 M?, Basic accuracy 0.05%
• Capacitance: 1.000 nF to 100 mF, Basic accuracy 1.0%
• Frequency: 99.999 Hz to 999.99 kHz, Basic accuracy 0.005%
• Maximum voltage between terminals and ground: 1000 V
• Battery type: 6 AA alkaline batteries
• Battery life: Minimum 100 hours, 200 hours in logging mode
• Operating temperature: -20°C to 55°C
• Storage temperature: -40°C to 60°C
• Relative humidity: 0 to 90% (0 to 37°C)
• Electromagnetic compatibility: EMC EN61326 1
• Vibration: MIL-PRF-28800F Class 2
• Shock: 1 meter drop per IEC/EN 61010
• Multiple on-screen displays: Yes
• True-RMS AC bandwidth: 100 kHz
• Reading memory: Yes, with logging memory up to 15,000 readings
• Wireless connectivity (optional): Yes
