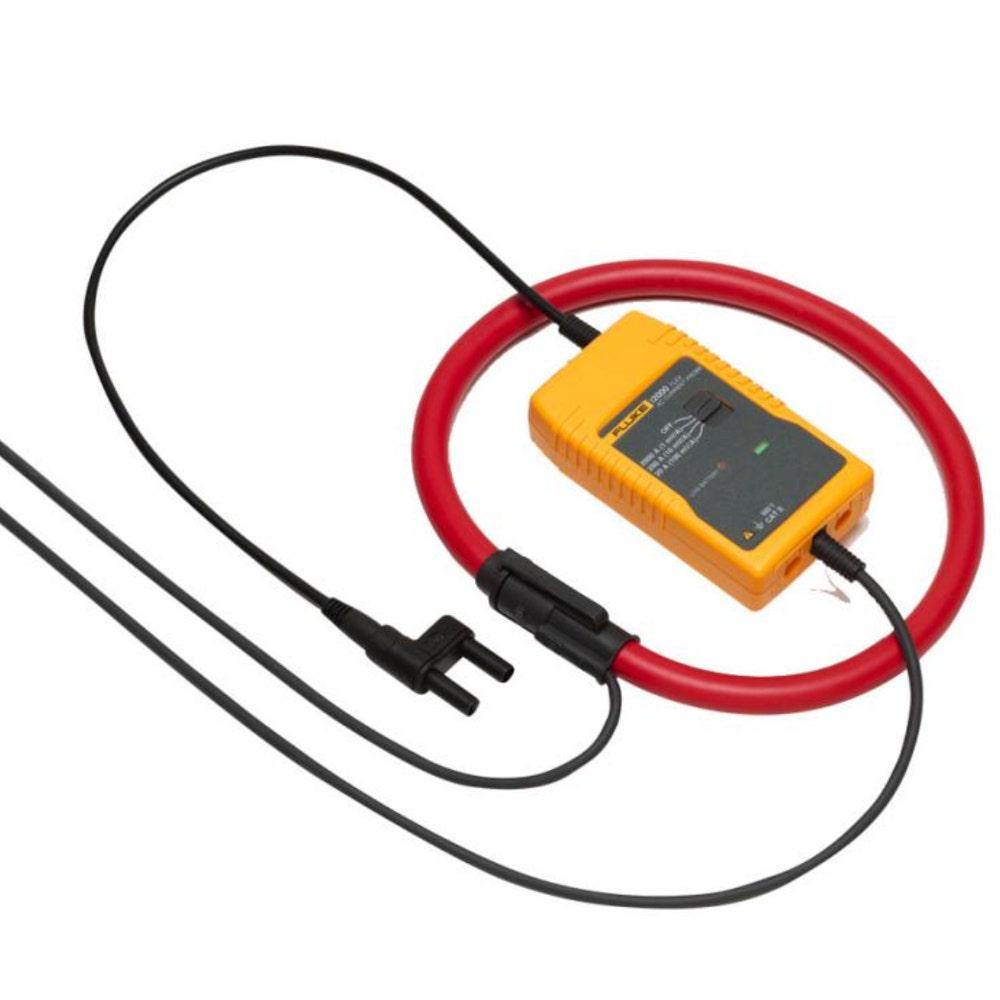

FLUKE 20-2000A Scopemeter Flexible AC Current Clamp FLUI2000FLEX

Features

• Utilizes the Rogowski principle for measuring AC currents
• Measures currents up to 2000 A with multimeters, recorders, or data loggers
• Three measurement ranges: 20A, 200A, 2000A
• Output sensitivity options: 100 mV/A, 10 mV/A, 1 mV/A
• Ideal for measuring current on thick, hard-to-reach conductors without circuit interruption
• Maximum conductor diameter: 178 mm
• CAT III 600 V safety rated
• Flexible and lightweight measuring head for easy installation

Specifications

• Current ranges: 20 A, 200 A, 2000 A
• Output sensitivity (AC-coupled): 1 mV, 10 mV, 100 mV
• Load impedance: 100 k minimum
• Accuracy: ±1% of range at +25°C (45 Hz to 65 Hz)
• Linearity: ±0.2% of reading from 10% to 100% of range
• Noise: 8 mV AC rms (30 A), 2 mV AC rms (300 A)
• Frequency range: 10 Hz to 20 kHz (-3 dB)
• Phase error: ±10° (at 20 kHz)
• Position sensitivity: ±2% of range with cable > 25 mm from coupling
• External field sensitivity: ±1% of range with cable > 200 mm from head
• Power supply: 2 x AA/MN 1500/LR6 Alkaline, 200 hours, low battery indicator
• Temperature coefficient: ±0.08% of reading per °C
• Working voltage: 600 V AC rms or DC
• Head circumference: 610 mm (24 in)
• Head cable diameter: 14.3 mm (0.56 in)
• Head bend radius: 38.1 mm (1.5 in)
• Cable length (head to electronics): 2 m (6.56 ft)
• Output connection: Molded 4 mm safety plugs (not integrated)
• Operating temperature range: 0°C to +70°C (32°F to 158°F)
• Storage temperature range: -40°C to +105°C (head), -20°C to +85°C (electronics)
• Operating humidity: 15% to 85% (non-condensing)
• Weight: 180 g (6.34 oz) (head), 190 g (6.70 oz) (electronics)
• Safety standards: EN 61010-031: 2002, EN 61010-2-032: 2002, EN 61010-1: 2001
• EMC standards: EN 61326: 1998 +A1, A2, and A3
• Dimensions (H x W x D): 116 x 68.5 x 30 mm (4.56 x 2.69 x 1.18 in)
