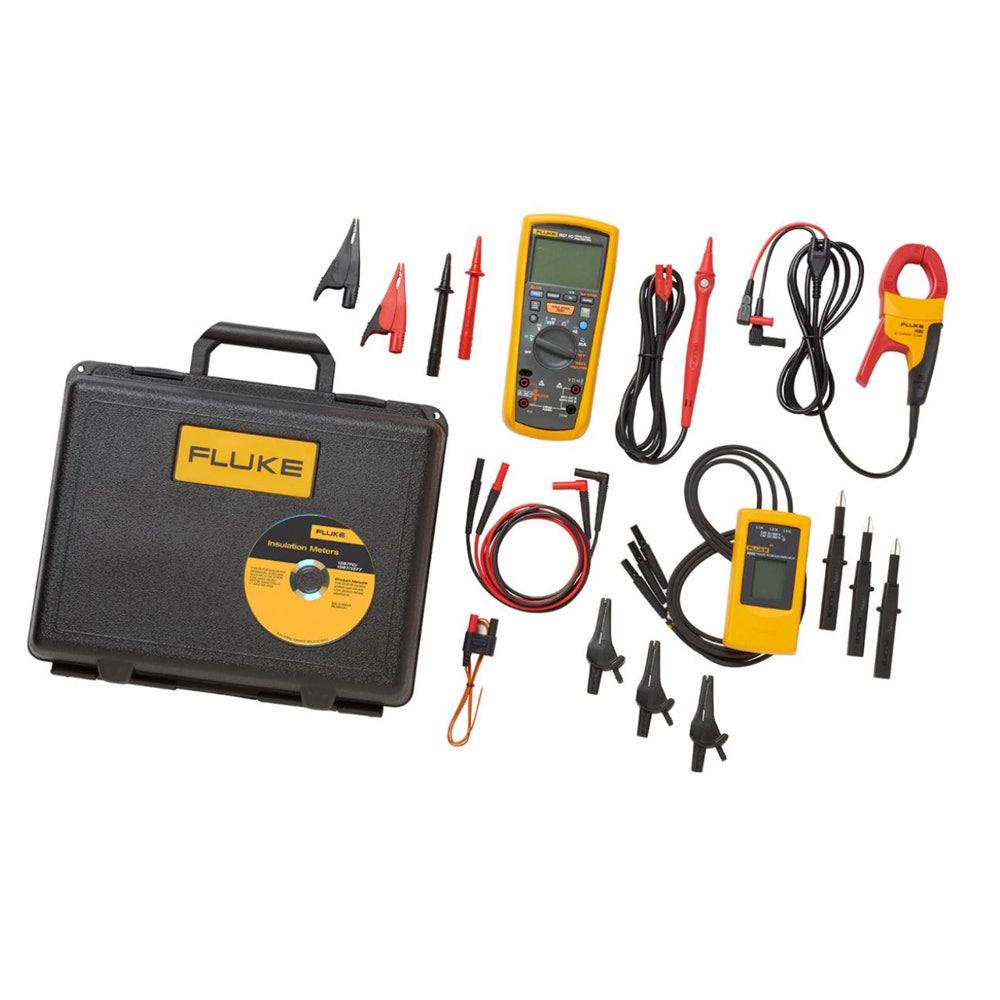

FLUKE 1587 FC Troubleshoot Kit FLU1587MDTFC

Product Description

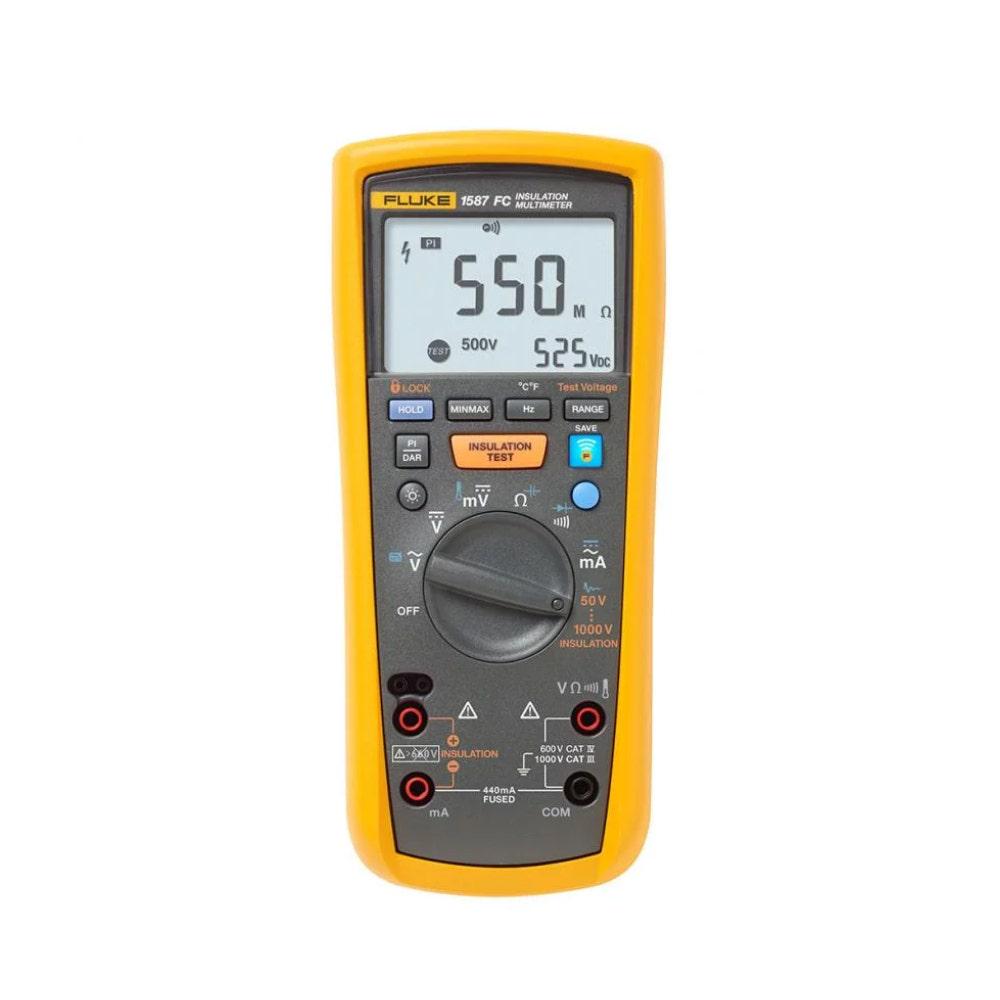

The Fluke 1587 FC Insulation Multimeter features four powerful new diagnostic functions through the Fluke Connect Measurements app:

Key Features

• Pl/DAR timed ratio tests with TrendIt graphs identifies moisture and contaminated insulation problems faster

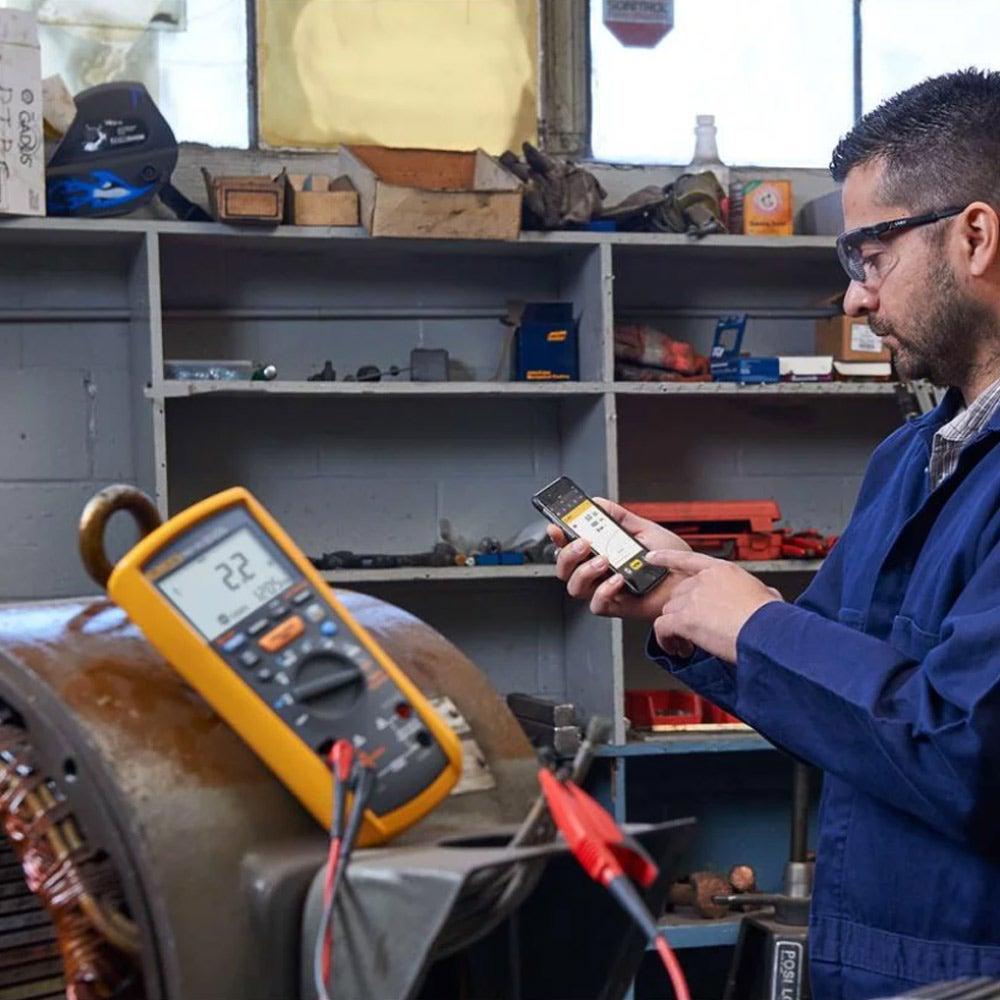

• Memory storage through Fluke Connect eliminates writing down results, reduces errors and saves data for historical tracking over time
• Temperature Compensation through app for establishing accurate baselines and relevant historical comparisons
• Historical tracking and trending of assets identifies degradation over time, allows real-time decisions to be made in the field with Fluke Connect Assets

The Fluke i400 AC Current Clamp is a high-safety current clamp for digital multimeters. The current clamp provides accurate current measurements without breaking electric circuits, helping you take measurements safely with industry standard safety ratings.

Fluke 9040 Phase Rotation Indicator is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. It allows rapid determination of phase sequence and ideally suited for commercial and industrial applications.

Electrical Specifications

Key Features

• AC voltage measurement
• Range: 600.0 mV
• Resolution: 0.1 mV
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(1% + 3)
• Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts): ±(2% + 3)
• Range: 6.000 V
• Resolution: 0.001 V
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(1% + 3)
• Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts): ±(2% + 3)
• Range: 60.00 V
• Resolution: 0.01 V
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(1% + 3)
• Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts): ±(2% + 3)
• Range: 600.0 V
• Resolution: 0.1 V
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(1% + 3)
• Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts): ±(2% + 3)¹
• Range: 1000 V
• Resolution: 1 V
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(2% + 3)
• Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts): ±(2% + 3)¹

¹ 1 kHz bandwidth

Low-Pass Filter Voltage

Key Features

• Range: 600.0 mV
• Resolution: 0.1 mV
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(1% + 3)
• Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts): +(2% + 3), -(6% - 3)
• Range: 6.000 V
• Resolution: 0.001 V
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(1% + 3)
• Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts): +(2% + 3), -(6% - 3)
• Range: 60.00 V
• Resolution 0.01 V
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(1% + 3)
• Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts): +(2% + 3), -(6% - 3)
• Range: 600.0 V
• Resolution: 0.1 V
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(1% + 3)
• Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts): +(2% + 3), -(6% - 3)
• Range: 1000 V
• Resolution: 1 V
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(2% + 3)
• Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts): +(2% + 3), -(6% - 3)

DC Voltage Measurement

Key Features

• Range: 6.000 V dc
• Resolution: 0.001 V
• Accuracy ±(% of Rdg + Counts): ±(0.09% + 2)
• Range: 60.00 V dc
• Resolution: 0.01 V
• Accuracy ±(% of Rdg + Counts): ±(0.09% + 2)
• Range: 600.0 V dc
• Resolution: 0.1 V
• Accuracy ±(% of Rdg + Counts): ±(0.09% + 2)
• Input impedance: 10 M (nominal),
• Normal mode rejection ratio: >60 dB @ 50 Hz or 60 Hz
• Common mode rejection ratio: >120 dB @ dc, 50 Hz or 60 Hz (1 k unbalance)
• Accuracies apply to ± 100% of range

DC Millivolts Measurement

Key Features

• Range: 600.0 mVdc
• Resolution: 0.1 mV
• Accuracy ±(% of Rdg + Counts): ±(0.1% + 1)

DC and AC Current Measurement

Key Features

• AC 45 Hz to 1000 Hz
• Range: 400 mA
• Resolution: 0.1 mA
• Accuracy ±(% of Rdg+Counts): ±(1.5% + 2)¹
• Burden voltage (Typical): 2 mV/mA
• Range: 60 mA
• Resolution: 0.01 mA
• Accuracy ±(% of Rdg+Counts): ±(1.5% + 2)¹
• Burden voltage (Typical): 2 mV/mA

DC

Key Features

• Range: 400 mA
• Resolution: 0.1 mA
• Accuracy ±(% of Rdg+Counts): ±(0.2% + 2)
• Burden voltage (Typical): 2 mV/mA
• Range: 60 mA
• Resolution: 0.01 mA
• Accuracy ±(% of Rdg+Counts): ±(0.2% + 2)
• Burden voltage (Typical): 2 mV/mA
• Overload: 600 mA for 2 minutes maximum
• Fuse protection for mA input: 0.44 mA, 1000 V, IR 10 kA
• AC conversion: Inputs are ac-coupled and calibrated to the rms value of sine wave input

Conversions are true-rms responding and specified from 5% to 100% of range. Input signal crest factor can be up to 3 up to 300 mA, decreasing linearly to crest factor 1.5 at 600 mA. For non-sinusoidal waveforms add +(2% reading + 2% FS) typical, for a crest factor up to 3.

¹ 1 kHz bandwidth

Ohms Measurement

Key Features

• Range: 600.0
• Resolution: 0.1
• Accuracy +(% of Rdg+Counts)¹: ±(0.9% + 2)
• Range: 6.000 k
• Resolution: 0.001 k
• Accuracy +(% of Rdg+Counts)¹: ±(0.9% + 2)
• Range: 60.00 k
• Resolution: 0.01 k
• Accuracy +(% of Rdg+Counts)¹: ±(0.9% + 2)
• Range: 600.0 k
• Resolution: 0.1 K
• Accuracy +(% of Rdg+Counts)¹: ±(0.9% + 2)
• Range: 6.000 M
• Resolution: 0.001 M
• Accuracy +(% of Rdg+Counts)¹: ±(0.9% + 2)
• Range: 50.0 M ²
• Resolution: 0.01 M
• Accuracy +(% of Rdg+Counts)¹: ±(1.5% + 3)
• Overload protection: 1000 V rms or dc
• Open circuit test voltage:
• Short circuit current:

¹ Accuracies apply from 0% to 100% of range

² Up to 80% relative humidity

Diode Test

Key Features

• Diode test indication: Display voltage drop: 0.6 V at1.0 mA nominal test current:
• Accuracy: ±(2% + 3)

Continuity Test

Key Features

• Continuity indication: Continuous audible tone for testresistance below 25 and off above 100 . Maximum Reading; 1000
• Open circuit voltage:
• Short circuit current: 1.0 mA typical
• Overload protection: 1000 V rms
• Response time: >1 m sec

Frequency Measurement

Key Features

• Range: 99.99 Hz
• Resolution: 0.01 Hz
• Accuracy +(% of Rdg+Counts)¹: ±(0.1% + 1)
• Range: 999.9 Hz
• Resolution: 0.1 Hz
• Accuracy +(% of Rdg+Counts)¹: ±(0.1% + 1)
• Range: 9.999 kHz
• Resolution: 0.001 kHz
• Accuracy +(% of Rdg+Counts)¹: ±(0.1% + 1)
• Range: 99.99 kHz
• Resolution: 0.01 kHz
• Accuracy +(% of Rdg+Counts)¹: ±(0.1% + 1)

Frequency Counter Sensitivity

Key Features

• 600.0 mV ac:
• V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz: 100.0 mV
• V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz: 150.0 mV
• DC Trigger Levels¹ to 20 kHz²: NA
• 6.0 V:
• V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz: 1.0 V
• V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz: 1.5 V
• DC Trigger Levels¹ to 20 kHz²: -400.0 mV and 2.5 V
• 60.0 V:
• V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz: 10.0 V
• V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz: 36.0 V
• DC Trigger Levels¹ to 20 kHz²: 1.2 V and 4.0 V
• 600.0 V:
• V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz: 100.0 V
• V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz: -
• DC Trigger Levels¹ to 20 kHz²: 12.0 V and 40.0 V
• 1000.0 V:
• V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz: 300.0 V
• V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz: -
• DC Trigger Levels¹ to 20 kHz²: 12.0 V and 40.0 V

¹ Maximum input for specified accuracy = 10x range (1000 V max). Noise at low frequencies and amplitudes may affect accuracy

² Usable to 100 kHz with full scale input

Capacitance

Key Features

• Range: 1000 nF
• Resolution: 1 nF
• Accuracy ±(% of Rdg+Counts): ±(1.2% + 2)
• Range: 10.00 F
• Resolution: 0.01 F
• Accuracy ±(% of Rdg+Counts): ±(1.2% + 2)
• Range: 100.0 F
• Resolution: 0.1 F
• Accuracy ±(% of Rdg+Counts): ±(1.2% ±90 counts)
• Range: 9999 F
• Resolution: 1 F
• Accuracy ±(% of Rdg+Counts): (1.2% ±90 counts)

Temperature Measurement

Key Features

• Range: -40 ° C to 537 ° C
• Resolution: 0.1 °C
• Accuracy ±(% of Rdg+Counts): ±(1% + 10 counts)
• Range: -40 ° F to 998 ° F
• Resolution: 0.1 °F
• Accuracy ±(% of Rdg+Counts): ±(1% + 18 counts)

¹ Accuracies apply following 90 minutes settling time after a change in the ambient temperature of the instrument

Insulation Specifications

Key Features

• Measurement range: 0.01 M to 2 G
• Test voltages: 50, 100, 250, 500, 1000 V
• Test voltage accuracy: +20%, -0%
• Short-circuit test current: 1 mA nominal
• Auto discharge: Discharge time
• Live circuit detection: Inhibit test if terminal voltage > 30 V prior to initialization of test
• Maximum capacitive load: Operable with up to 1 F load

Output Voltage

Key Features

• 50 V (0% to +20%):
• Display range: 0.01 to 6.00 M
• Resolution: 0.01 M
• Test current: 1 mA @ 50 k
• Resistance accuracy ±(% of Rdg + Counts): ±(3% + 5 counts)
• Display range: 6.0 to 50.0 M
• Resolution: 0.1 M
• Test current: 1 mA @ 50 k
• Resistance accuracy ±(% of Rdg + Counts): ±(3% + 5 counts)
• 100 V (0% to +20%):
• Display range: 0.01 to 6.00 M
• Resolution: 0.01 M
• Test current: 1 mA @ 100 k
• Resistance accuracy ±(% of Rdg + Counts): ±(3% + 5 counts)
• Display range: 6.0 to 60.0 M
• Resolution: 0.1 M
• Test current: 1 mA @ 100 k
• Resistance accuracy ±(% of Rdg + Counts: ±(3% + 5 counts)
• Display range: 60 to 100 M
• Resolution: 1 M
• Test current: 1 mA @ 100 k
• Resistance accuracy ±(% of Rdg + Counts): ±(3% + 5 counts)
• 250 V (0% to +20%):
• Display range: 0.1 to 60.0 M
• Resolution: 0.1 M
• Test current: 1 mA @ 250 k
• Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
• Display range: 60 to 250 M
• Resolution: 1 M
• Test current: 1 mA @ 250 k
• Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
• 500 V (0% to +20%)
• Display range: 0.1 to 60.0 M
• Resolution: 0.1 M
• Test current: 1 mA @ 500 k
• Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
• Display range: 60 to 500 M
• Resolution: 1 M
• Test current: 1 mA @ 500 k
• Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
• 1000 V (0% to +20%):
• Display range: 0.1 to 60.0 M
• Resolution: 0.1 M
• Test current: 1 mA @ 1 M
• Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
• Display range: 60 to 600 M
• Resolution: 1 M
• Test current: 1 mA @ 1 M
• Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
• Display range: 0.6 to 2.0 G
• Resolution: 100 M
• Test current: 1 mA @ 1 M
• Resistance accuracy ±(% of Rdg + Counts): ±(10% + 3 counts)

General Specifications

Key Features

• Maximum voltage applied to any terminal and common: 1000 V
• Storage temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Operating temperature: -20 °C to 55 °C (-4 °F to 131 °F)
• Temperature coefficient: 0.05 x (specified accuracy) per °C for temperatures 28 °C (82 °F)
• Relative humidity:
• Noncondensing
• 0% to 95% @ 10 °C to 30 °C (50 °F to 86 °F)
• 0% to 75% @ 30 °C to 40 °C (86 °F to 104 °F)
• 0% to 40% @ 40 °C to 55 °C (104 °F to 131 °F)
• Vibration: Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument
• Radio frequency communication: 2.4 GHz ISM Band
• Radio frequency certification: FCC: T68-FBLE, IC: 6627A-FBLE

Electromagnetic Compatibility

Key Features

• International:
• IEC 61326-1:Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A
• Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
• Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.
• Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object. The equipment may not meet the immunity requirements of this standard when test leads and/or test probes are connected.
• Korea (KCC):
• Class A Equipment (Industrial Broadcasting & Communication Equipment)
• Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
• USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
• Enclosure protection: IEC 60529: IP40 (non-operating)

Safety

Key Features

• IEC 61010-1: Pollution Degree 2
• IEC 61010-2-033: CAT IV 600 V / CAT III 1000 V
• Batteries: Four AA batteries (NEDA 15A or IEC LR6)
• Battery life: Meter use 1000 hours; Insulation test use: Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 M with a duty cycle of 5 seconds on and 25 seconds off.
• Size (H x W x L): 5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)
• Weight : 550 g (1.2 lb)
• Altitude:
• Operating: 2000 m
• Storage: 12,000 m
• Over-range capability: 110% of range except for capacitance which is 100%
• Frequency overload protection:
• Fuse protection for mA input: 0.44A, 1000 V, IR 10 kA
• Fluke i400 AC Current Clamp

Specifications

Shipping Policy

Australia-wide Shipping

We ship to addresses across Australia from our network of warehouses and suppliers. A small number of remote locations may not be eligible for delivery. If your address is one of them, we'll let you know promptly.

Your order may be sent from a wholesaler, warehouse or retailer partner, so the packaging may not always show the DEAL FIRST name.

Shipping Costs

Shipping costs are calculated at checkout based on your delivery address and order. You'll see the total before you pay.

Special Orders and Backorders

Special order products refer to items that are not standard inventory or items currently out of stock that must be requested directly from an external supplier. By placing a special order, you acknowledge and agree to the unique processing restrictions outlined below.

Dispatch Timeframes

Unlike standard stocked items which typically ship within 1–2 business days, special order items require additional fulfillment timelines.

• Standard Stock: Dispatched within 1–2 business days.
• Special Orders / Backorders: Expected dispatch ranges between 5 business days to 4 weeks, depending on supplier availability and transit logistics.

Any estimated delivery windows provided at the time of purchase are guidelines and subject to supplier supply chain fluctuations.

Delivery Times

Estimated delivery times, counted from when your order is dispatched:

• Metropolitan areas: 2 to 5 business days
• Regional areas: 2 to 7 business days
• Rural and remote areas: 3 to 10 business days

Tracking

Once your order ships, we'll email you a tracking number where the shipping method supports tracking. Larger orders may arrive in more than one parcel.

Late or Missing Parcels

If your parcel hasn't arrived within the estimated time, or tracking hasn't updated for several days, please contact us with your order number and we'll follow it up with the carrier.

Special Order and Backorder Cancellations

Once a special order or backorder is placed with our supplier, the order cannot be cancelled. Cancellations will only be authorized if the supplying manufacturer permits a penalty-free cancellation to us. If any supplier administrative fees or restocking fees are incurred during a requested cancellation, these costs will be passed on to the customer.

Returns and Refund Policy

At Deal First, we aim to provide you with the best shopping experience. Please review our return and refund policy below:

Consumer Guarantees and Faulty Special Order Items

The restrictions placed on cancellations and change of mind returns do not impact your statutory consumer rights. If a special order item arrives damaged, is structurally faulty, or fails to meet legal consumer standards, you remain fully covered under Australian Consumer Law (ACL) and the manufacturer's operational warranties. Faulty items will be repaired, replaced, or refunded in accordance with your legal rights.

Damaged or Defective Items
If you receive an item that is damaged or defective, we will provide a prepaid shipping label for you to return the product. Please contact us as soon as possible to arrange this.

Non-Damaged Returns
If you wish to return an item for any reason other than damage or defect, you will be responsible for all return shipping costs. The item must be returned within 30 days of receipt, unused, undamaged, and in its original packaging. Returns without original packaging may be refused.

Special Order and Backorder Change of Mind Returns

Our standard return and exchange policies do not apply to custom configurations, non-stocked products, spare parts, or special order items. We do not offer refunds, credits, or exchanges for change of mind on any special order goods. Please ensure all product specifications, sizes, and compatibility requirements are fully verified before finalizing your purchase.

Restocking Fees
Items returned due to buyer’s remorse, incorrect purchase, or changes in preferences (e.g., no longer wanted/needed, found a better price) may incur a restocking fee of up to 20%. This fee also applies to non-warranty returns.

Return Time frame

• Electronics: Must be returned within 15 days of the delivery date.
• All other items: Must be returned within 30 days of the delivery date.
  Returns outside these time frames can't be accepted.


Return Authorization
To request one, contact us with your order number. Before returning any item, you must submit a return request and receive a Return Merchandise Authorization (RMA) number. Items sent without an RMA number will not be accepted.

Non-Returnable Items
For health and safety reasons, the following items cannot be returned:

• Grocery items
• Undergarments
• Personal care products (e.g., nappies, opened skincare or cosmetics)

Shipping Damage
If your item arrives damaged due to shipping, please refuse delivery if possible and contact us immediately. If you cannot refuse delivery, retain all packaging materials and notify us so we can process an RMA.

Altered or Incomplete Returns
Items that are altered, modified, missing parts, or not in their original condition may not be eligible for a refund. Please ensure all components are included before returning your item.

Prepaid Shipping Labels
When we provide a prepaid label, you must drop off the item or schedule a pick-up with the carrier within 7 days of receiving the label.

Refund Processing
We will typically issue a refund once the returned item is in transit with the carrier. However, please allow up to 15 days from the shipping date for the return to be processed and your refund to be issued.

Supplier-Specific Returns
Since we work with multiple suppliers, each may have their own return procedures and timelines. We will coordinate with the appropriate supplier to handle your return in a timely manner.
