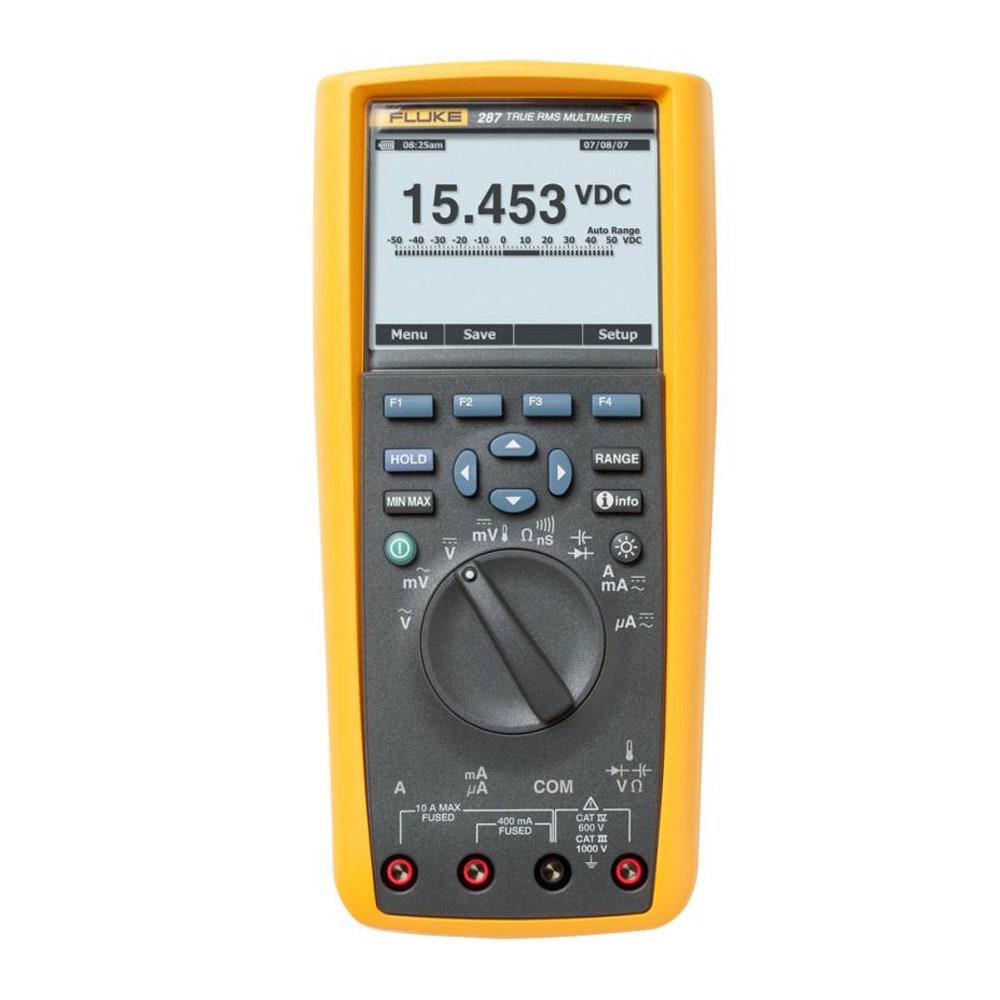

FLUKE 1000V True-RMS Electronics Logging Multimeter FLU287

Features

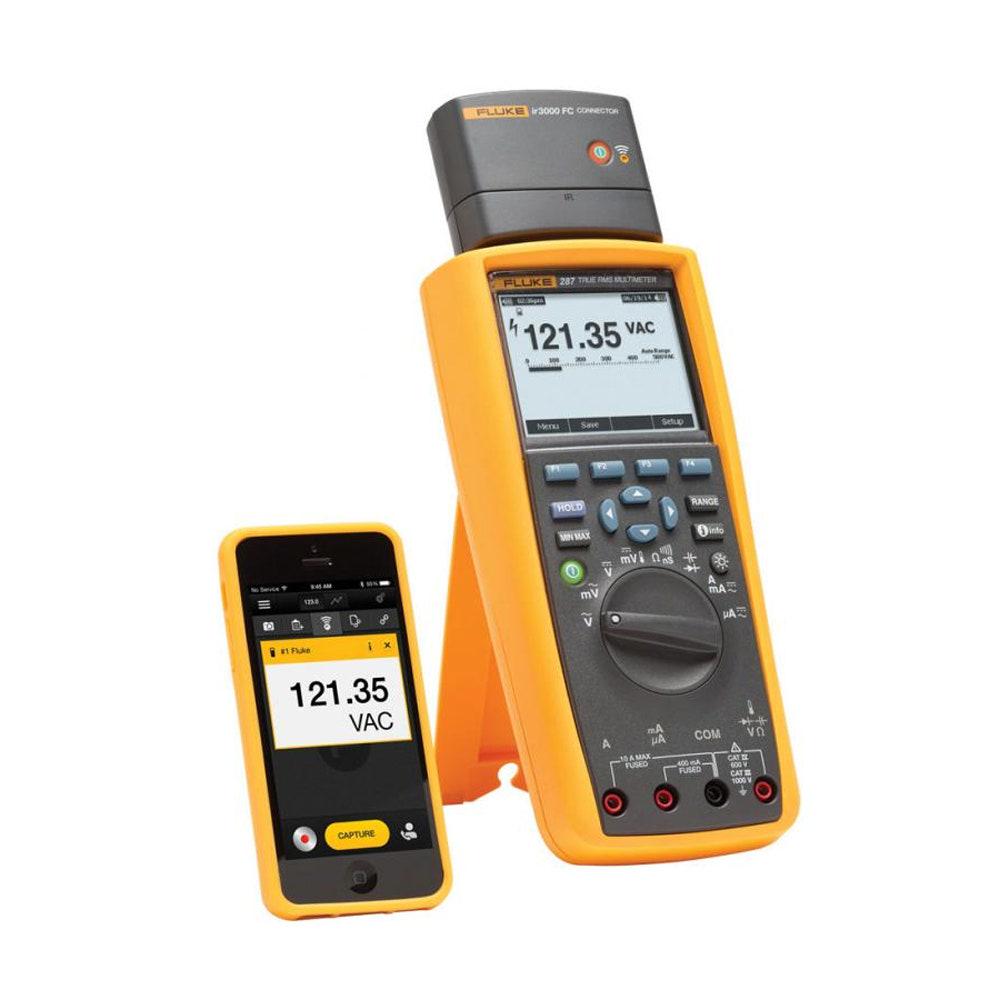

• Now compatible with Fluke Connect Mobile App and all Fluke FC enabled test tools (optional ir3000 FC infrared connector sold separately)
• ShareLive video call for instant viewing (requires Fluke Connect mobile app and ir3000 FC wireless connector)
• TrendCapture graphs logged data sessions to identify anomalies quickly
• Zoom capability on trends, allowing up to 14x magnification
• Selectable AC filter for stabilized readings in noisy conditions
• Customizable recording and auto hold thresholds for event tracking

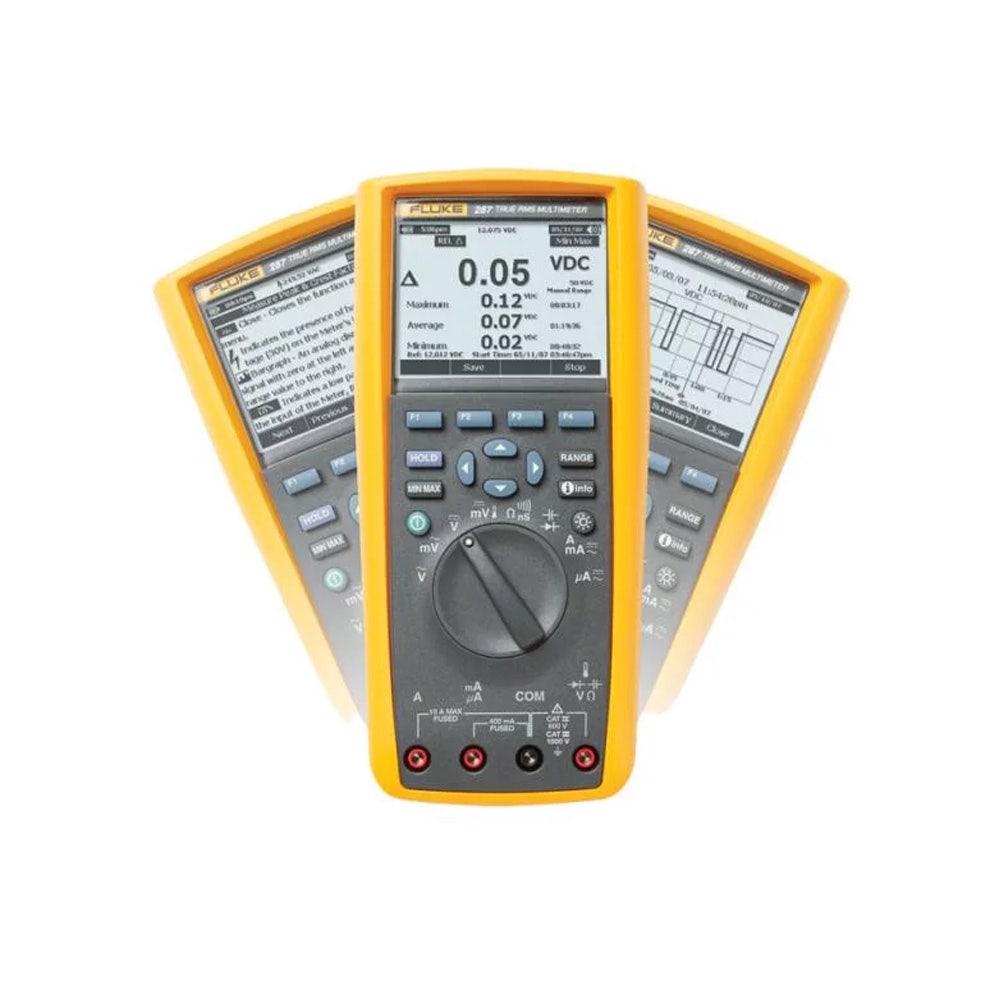

• Large 50,000 count, 1/4 VGA display with white backlight for multiple measurement displays
• Logging function with expanded memory for continuous monitoring (stores up to 15,000 events)
• On-board help screens for user assistance
• Saved measurements can be named and recalled easily
• Multi-lingual interface for diverse users
• Multiple logging sessions without needing a download
• 0.025% basic DC accuracy for precise readings
• True-RMS measurements for accurate AC voltage and current readings
• AC bandwidth up to 100 kHz
• Measures up to 10 A (20 A for short bursts of 30 seconds)
• Temperature measurement functionality included
• Relative mode for eliminating test lead resistance
• Peak capture feature to record transient events with 250 µs resolution
• Included premium test leads and alligator clips
• Optional FlukeView forms for documentation and analysis of readings
• Optional magnetic hanger for hands-free operation

Specifications

• DC volts: Range: 50.000 mV to 1000.0 V | Basic accuracy: 0.025%
• AC volts: Range: 50.000 mV to 1000.0 V | Basic accuracy: 0.4% (True-RMS)
• DC current: Range: 50.000 mA to 10.000 A | Basic accuracy: 0.05%
• AC current: Range: 50.000 mA to 10.000 A | Basic accuracy: 0.6% (True-RMS)
• Temperature range: -200.0°C to 1350.0°C (-328.0°F to 2462.0°F) | Basic accuracy: 1.0%
• Resistance range: 500.00 ? to 500.0 M? | Basic accuracy: 0.05%
• Capacitance range: 1.000 nF to 100 mF | Basic accuracy: 1.0%
• Frequency range: 99.999 Hz to 999.99 kHz | Basic accuracy: 0.005%
• Maximum voltage between any terminal and earth ground: 1000 V
• Battery type: 6 AA alkaline batteries
• Battery life: 100 hours minimum, 200 hours in logging mode
• Operating temperature: -20°C to 55°C | Storage temperature: -40°C to 60°C
• Relative humidity: 0 to 90% (0 to 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C)
• Electromagnetic compatibility: EMC EN61326 1
• Vibration: Random vibration per MIL-PRF-28800F Class 2
• Shock resistance: 1 meter drop per IEC/EN 61010 1 3rd Edition
• Multiple on-screen displays: Yes
• True-RMS AC bandwidth: 100 kHz
• DC mV resolution: 1 V
• Megohm range: Up to 500 M?
• Continuity beeper: Yes
• Battery/fuse access: Yes
• Min-max-avg function: Yes
• Auto/touch hold: Yes
• Reading memory: Yes
• Log to PC capability: Yes
• Wireless connectivity (optional): Yes
