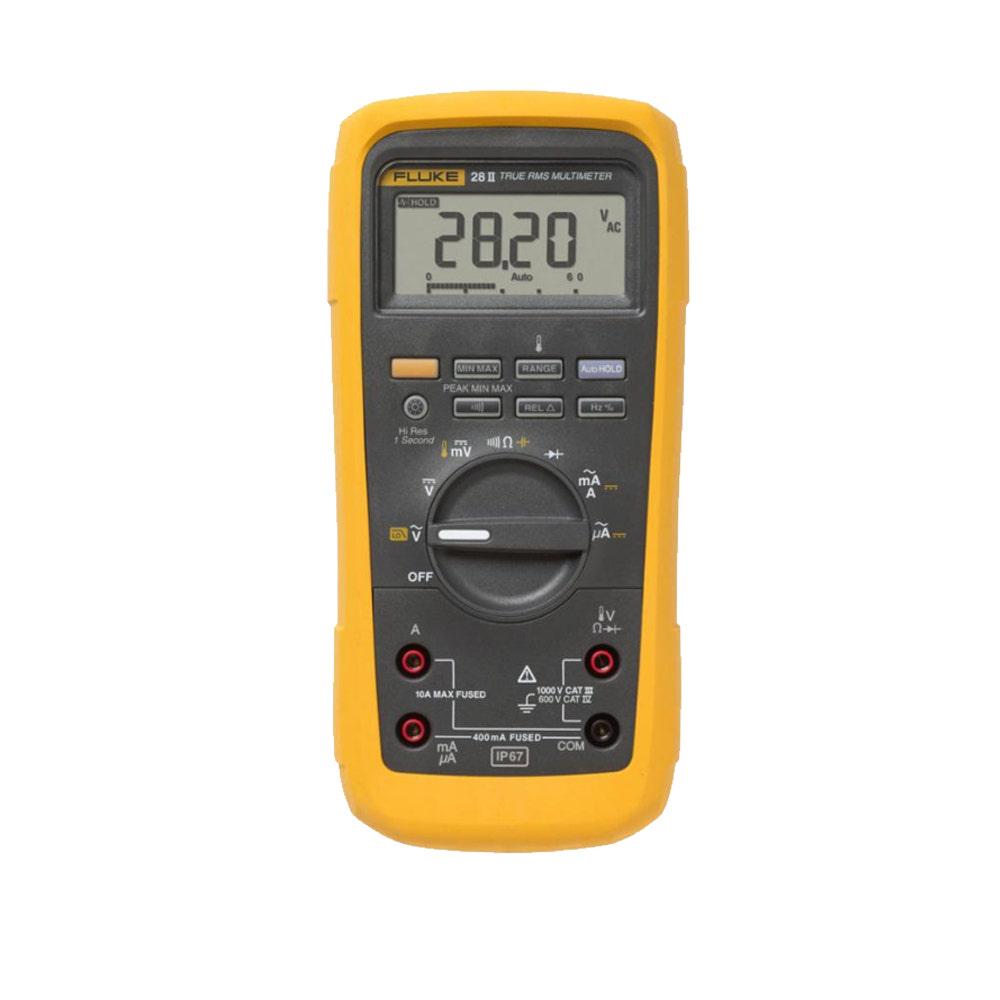

FLUKE 1000V Rugged Digital Multimeter FLU28II

Features

• IP 67 rated for waterproof and dustproof protection
• Operate in temperatures from -15 °C to +55 °C (5 °F to 131 °F, -40 °C for 20 minutes)
• Measurement capacity up to 1000 V AC and DC
• Measure up to 10 A (20 A for 30 seconds)
• 10,000 F capacitance range
• Frequency measurement up to 200 kHz
• Extended AC voltage bandwidth of 15 Hz to 20 kHz
• Built-in thermometer for easy temperature readings
• Resistance, continuity, and diode testing
• Min/Max and average recording capabilities
• Peak min-max function
• Unique function for measuring voltage and frequency on adjustable speed motor drives
• Designed to withstand 3 m (10 ft) drops
• Hi-resolution 20,000 count display mode
• True-rms AC voltage and current measurements for non-linear signals
• Backlit keypad buttons for visibility in low light
• Large display digits with a 2-level bright white backlight
• Reversible holster for added protection
• Withstands 8,000 volt spikes in industrial circuits
• Long battery life of 800 hours
• Relative mode for low ohms measurements
• Auto and manual ranging options
• Optional magnetic hanger for hands-free operation
• MSHA approved for safety

Specifications

• DC voltage range: 0.1 mV to 1000 V
• DC voltage accuracy: 0.05% + 1
• AC voltage range: 0.1 mV to 1000 V
• AC voltage accuracy: 0.7% + 4
• DC current range: 0.1 A to 10 A
• DC current accuracy: 0.2% + 4
• AC current range: 0.1 A to 10 A
• AC current accuracy: 1.0% + 2
• Resistance range: 0.1 to 50 M
• Display counts: 6000
• Capacitance range: 1 nF to 9999 F
• Frequency range: 0.5 Hz to 199.99 kHz
• Temperature range: -200°C to +1090°C
• Low pass filter: Yes
• Compliance: CAT IV 600 V, CAT III 1000 V
• IP rating: IP 67
• Power: 3 x AA batteries
• Battery life: 800 hours
• Bar graph/backlight: Yes/Yes
• Peak transient capture: 250 S
• Min/Max/Avg: Yes
• Reading hold: Yes
• Relative readings (zero): Yes
• Safety rating: CAT IV 600 V/CAT III 1000 V
• External protection: Rubber holster
• Drop test: 3 meter (10 feet) drop test
• Dustproof/waterproof: Yes, IP 67 rated
