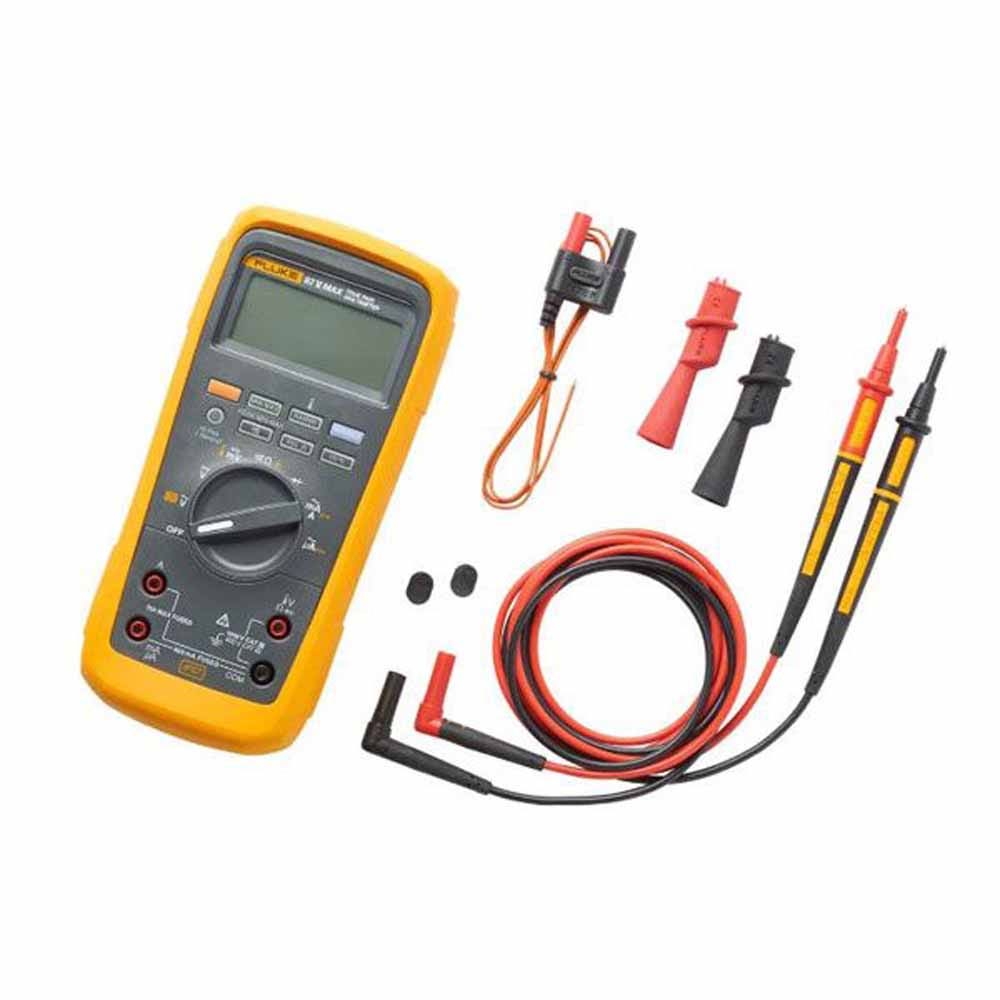

FLUKE 1000V Industrial Multimeter FLU87V

Features

• High resolution and accuracy for troubleshooting motor drives and automation
• Easy-access door for quick battery changes without breaking calibration seal
• Analog bar graph for monitoring fast-changing or unstable signals
• Large digit display with bright, two-level backlight for low-light conditions
• Touch Hold function retains readings after probe removal
• Accurate measurements on VFDs via a low-pass filter
• Captures intermittent signals as fast as 250 µS with Peak Capture
• Specialized shielding blocks high-frequency noise from measurements
• Complies with EN 61010-1 for CAT III 1000 V and CAT IV 600 V safety standards
• Withstands voltage spikes over 8000 V
• Audible Input Alert warns of incorrect input jack usage
• Removable holster includes space for test probe during testing
• Relative mode eliminates test lead resistance for accurate low-resistance measurements
• Compatible with an optional magnetic hanger for hands-free use

Specifications

• Voltage DC: Maximum 1000 V
• Voltage AC: Maximum 1000 V
• Current DC: Maximum 10 A
• Current AC: Maximum 10 A
• Resistance: Maximum 50 M
• Frequency: Maximum 200 kHz
• Duty Cycle: Maximum 99.9%
• Temperature Measurement: -200 °C to 1090 °C
• 80 BK Temperature Probe: -40 °C to 260 °C, ±2.2 °C or ±2%, whichever is greater
• Conductance: Maximum 60.00 nS
• Diode Range: 3 V
• Operating Temperature: -20 °C to +55 °C
• Storage Temperature: -40 °C to +60 °C
• Humidity (without condensation): 0% - 90% at 0 °C - 35 °C | 0% - 70% at 35 °C - 55 °C
• Operating Altitude: 2000 m
• Overvoltage Category: EN 61010-1 to 1000 V CAT III, 600 V CAT IV
• Agency Approvals: CE, CSA, RCM
• Shock: 1 meter drop per IEC 61010-1:2001
• Vibration: Per MIL PRF 28800 for Class 2 instruments
• Includes: TL75 Test Leads, AC175 Alligator Clips, Holster, 9V Battery (installed), 80BK Temperature Probe
• Brand: Fluke
• Part No: FLU87V
• Barcode: 0095969056892
