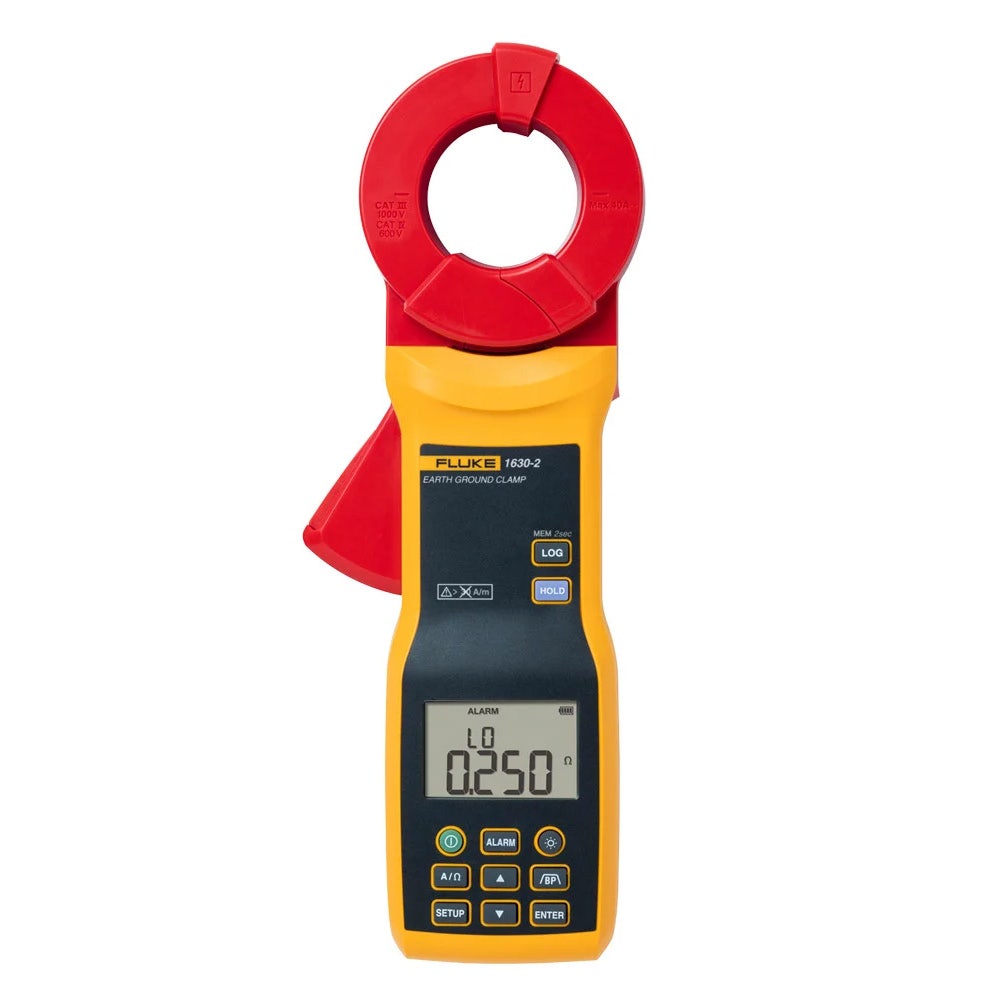

FLUKE 1000V AC Clamp Meter FLU1630-2FC

Features

• Measures earth ground loop resistances with dual-clamp jaw
• Eliminates need for disconnecting parallel grounds
• Enables testing in hard-to-reach areas, like inside buildings
• Measures earth ground AC leakage current without disconnecting
• Heavy-duty clamp jaw maintains alignment and calibration
• Automatically logs data at set intervals, saving up to 32,760 measurements
• User-defined high/low alarm limits for quick evaluation
• Selects band-pass filter to reduce noise in measurements
• Supports Fluke Connect Wireless System for app connectivity
• Records measurements and images for sharing on Fluke Connect Cloud
• Accesses baseline, historical, and current measurements by asset
• Facilitates data sharing through ShareLive video calls and emails

Specifications

• Maximum voltage to earth ground: 1000 V
• Battery type: AA alkaline IEC/EN LR6 (x4)
• Battery life: More than 15 hours (in Ground Resistance mode)
• Frequency range: 40 Hz to 1 kHz
• Ingress protection: IEC/EN 60529: IP30 with jaw closed
• LCD digital reading: 9999 counts
• Refresh rate: 4 per second
• Operating temperature: -10 °C to +50 °C
• Storage temperature: -20 °C to +60 °C
• Operating humidity: Non-condensing (max 90% RH)
• Operating altitude: 2000 m (6561 feet)
• Storage altitude: 12,000 m (39,370 feet)
• Data logging capacity: Minimum of 32,760 measurements
• Data logging interval: 1 second to 59 minutes 59 seconds
• Conductor size: 40 mm (1.57 in) approximately
• Dimensions: 283 x 105 x 48 mm (11.1 x 4.1 x 1.9 in)
• Weight: 880 g (31 oz)
• Warranty: One year
