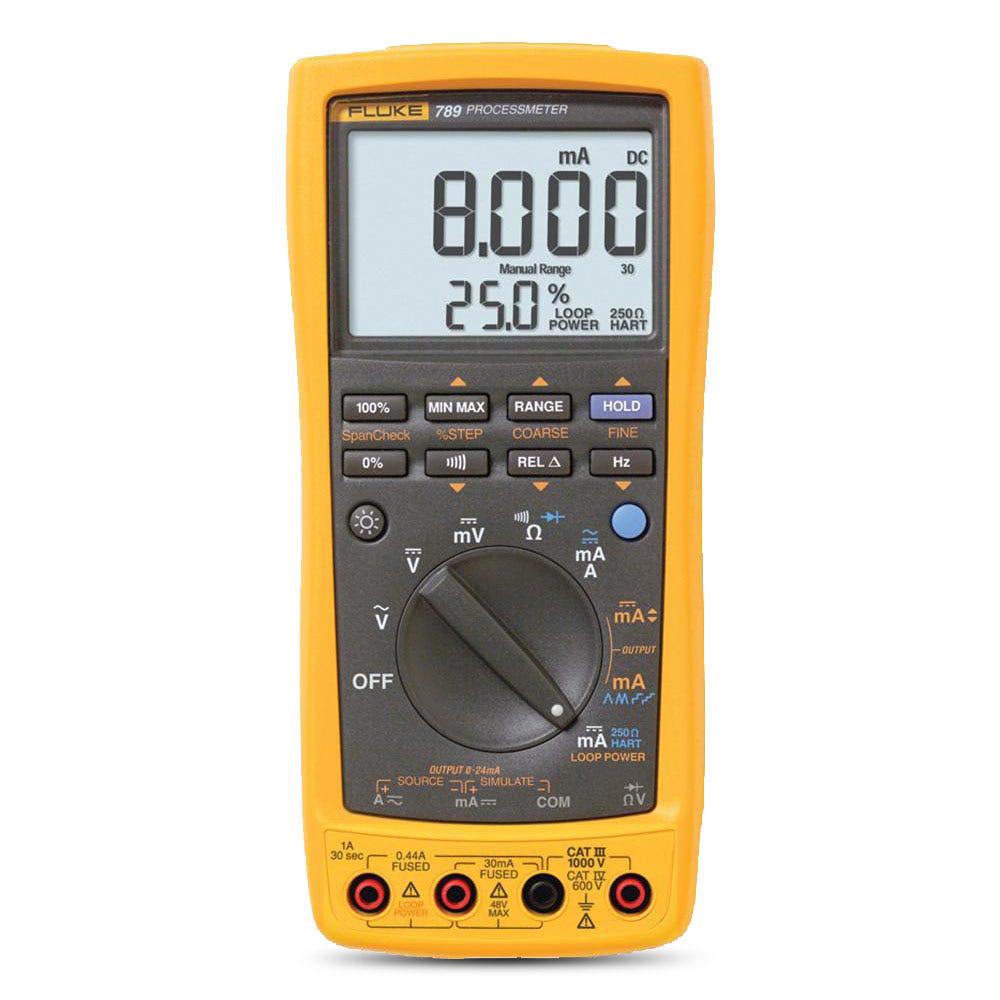

FLUKE 1000V 440Ma Multimeter FLU789

Features

• Ultimate troubleshooting tool for electricians and instrumentation experts
• Combines loop calibrator with a precision 1000 V, 440 mA True-RMS digital multimeter
• Optional IR3000FC module for wireless data logging via Fluke Connect mobile app
• Includes a 24 V loop power supply
• Large dual display with enhanced two-level backlight brightness
• 0% and 100% buttons for quick 4 and 20 mA sourcing checks
• Offers all standard DMM capabilities: frequency measurement to 20 kHz, Min/Max/Average/Hold/Relative modes, diode test, and continuity beeper
• Simultaneous display of mA and % scale readings
• 20 mA DC current source/loop calibrator/simulator
• Manual step (100%, 25%, Coarse, Fine), plus auto step and auto ramp
• Delivers 0.1% DC voltage accuracy and 0.05% DC current accuracy
• 1200 ohm drive capability on mA source
• HART mode setting with loop power and built-in 250 ohm resistor
• Externally accessible fuses and batteries for easy replacement

Specifications

• Current measurement range: 0-1 A AC or DC
• Resolution: 1 mA
• Accuracy: 0.2% + 2 LSD (DC)
• Current measurement range: 0-30 mA
• Resolution: 0.001 mA
• Accuracy: 0.05% + 2 LSD
• Current sourcing range: 0-20 mA or 4-20 mA
• Drive capability: 24 V Compliance or 1200 @ 20 mA
• Frequency: Up to 19.999 kHz, 0.005% + 1 LSD
• Voltage measurement range: 0-1000 V AC (true-rms) or DC
• Resolution: 0.1 mV to 1.0 V
• Accuracy: 0.1% Rdg + 1 LSD (VDC)
• Resistance measurement: Up to 40 M, 0.2% + 1 LSD
• Diode test: 2.0 V shows diode voltage drop
• Auto Step and Auto Ramp: Yes
• Operating temperature: -20°C to 55°C
• Storage temperature: -40°C to 60°C
• Humidity (without condensation): 95% up to 30°C, 75% up to 40°C, 45% up to 50°C, 35% up to 55°C
• Temperature coefficient: 0.05 x (specified accuracy) per °C (for temperatures 28°C)
• Electrical safety: Designed per IEC 1010-1, ANSI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1-92
• Overvoltage category: IEC 1010-1 CAT III 1000 V, CAT IV 600 V
• Maximum voltage: 1000 V RMS
• Batteries: 4 x AA alkaline batteries
• Battery life: 140 hours typical (measurement), 10 hours typical (sourcing 20 mA)
• Shock and vibration: Random, 2 g, 5-500 Hz; 1 meter drop test
• Includes: AC175 Alligator Clips, four AA 1.5 V alkaline batteries (installed), TL71 safety-designed test lead set
