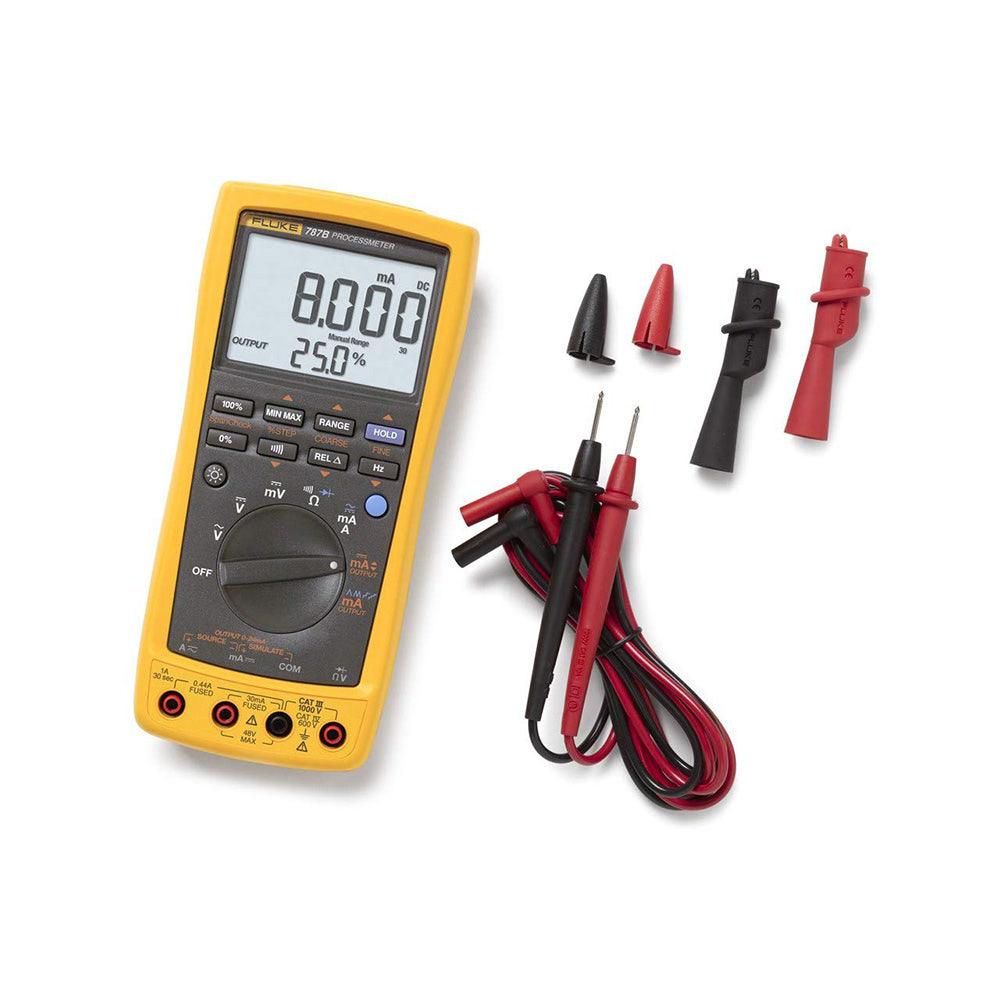

FLUKE 1000V 400Ma Multimeter FLU787B

Features

• Combines digital multimeter and mA loop calibrator in one tool
• Measures, sources, and simulates 20 mA dc current
• Simultaneous readout of mA and percentage of scale
• Designed to meet 1000 V IEC 61010 CAT III and 600 V CAT IV standards
• Compatible with Fluke Connect for wireless data logging (requires IR3000FC module)
• Precision true-rms digital multimeter up to 1000 V, 440 mA
• Frequency measurement capability up to 20 kHz
• Min/Max/Average/Hold/Relative modes available
• Includes diode test and continuity beeper
• Manual and automatic step adjustment modes
• Externally accessible battery for easy replacements

Specifications

• DC voltage range: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
• DC voltage accuracy: 0.1% + 1 LSD
• AC voltage range (true-rms): 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
• AC voltage accuracy: 0.7% + 2 LSD
• DC current range: 30.000 mA with accuracy: 0.05% + 2 LSD
• AC current range: 1.000 A (0.440 A continuous) with accuracy: 1% + 2 LSD
• Resistance range: 400.0 Ohms, 4.000 k, 40.00 k, 400.0 k, 4.0 M, 40 M
• Resistance accuracy: 0.2% + 1 LSD
• Frequency range: 199.99 Hz, 1999.9 Hz, 19.999 kHz with accuracy: 0.005% + 1 LSD
• Diode test capability: m2.000 V (voltage drop)
• Continuity test: Beeps for resistance
• Storage temperature: -40 °C to 60 °C
• Operating temperature: -20 °C to 55 °C
• Relative humidity: Up to 95% at 30 °C
• Vibration: Random, 2 g, 5-500 Hz
• Shock resistance: 1 meter drop test
• Safety standards: IEC61010-1, Pollution Degree 2, CAT IV 600 V/CAT III 1000 V
• Battery: 4 x AA alkaline batteries with 140 hours typical life for measurement
