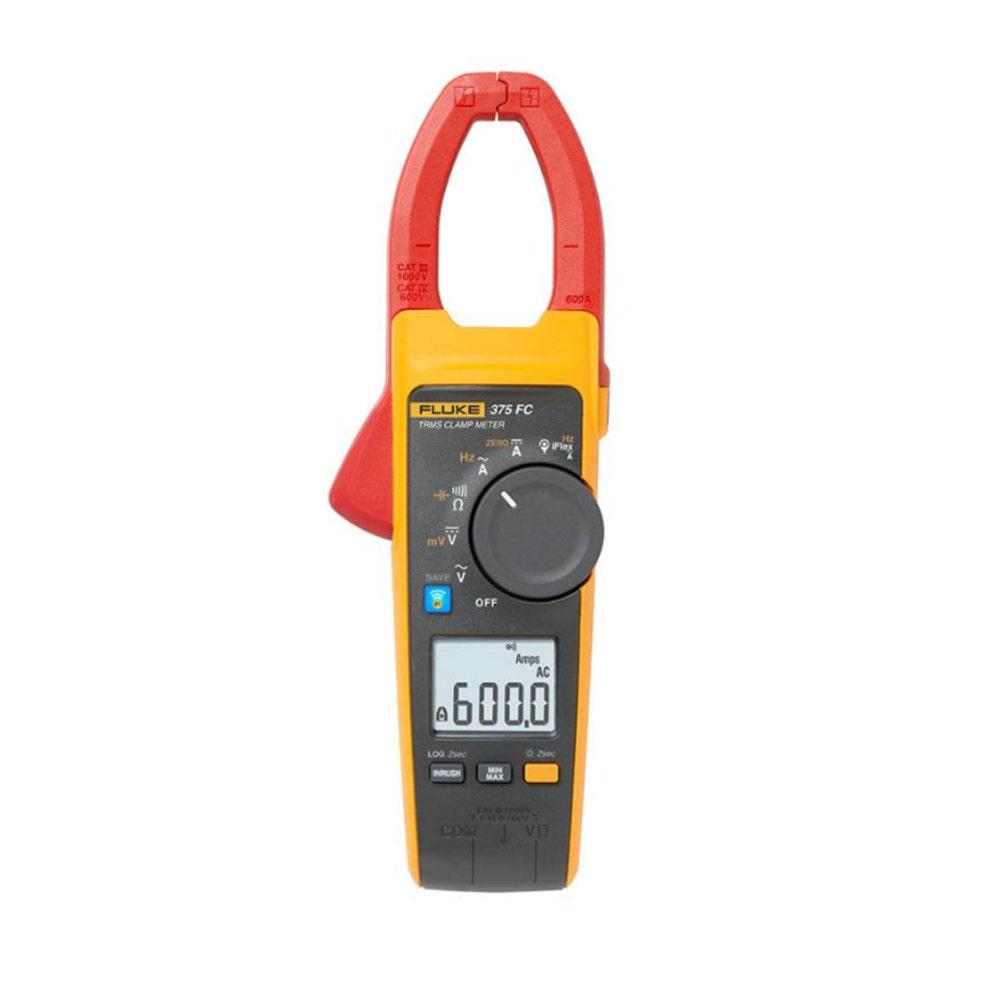

FLUKE 1000V 2500A AC DC 376 FC True-RMS Clamp Meter FLU376FC

Features

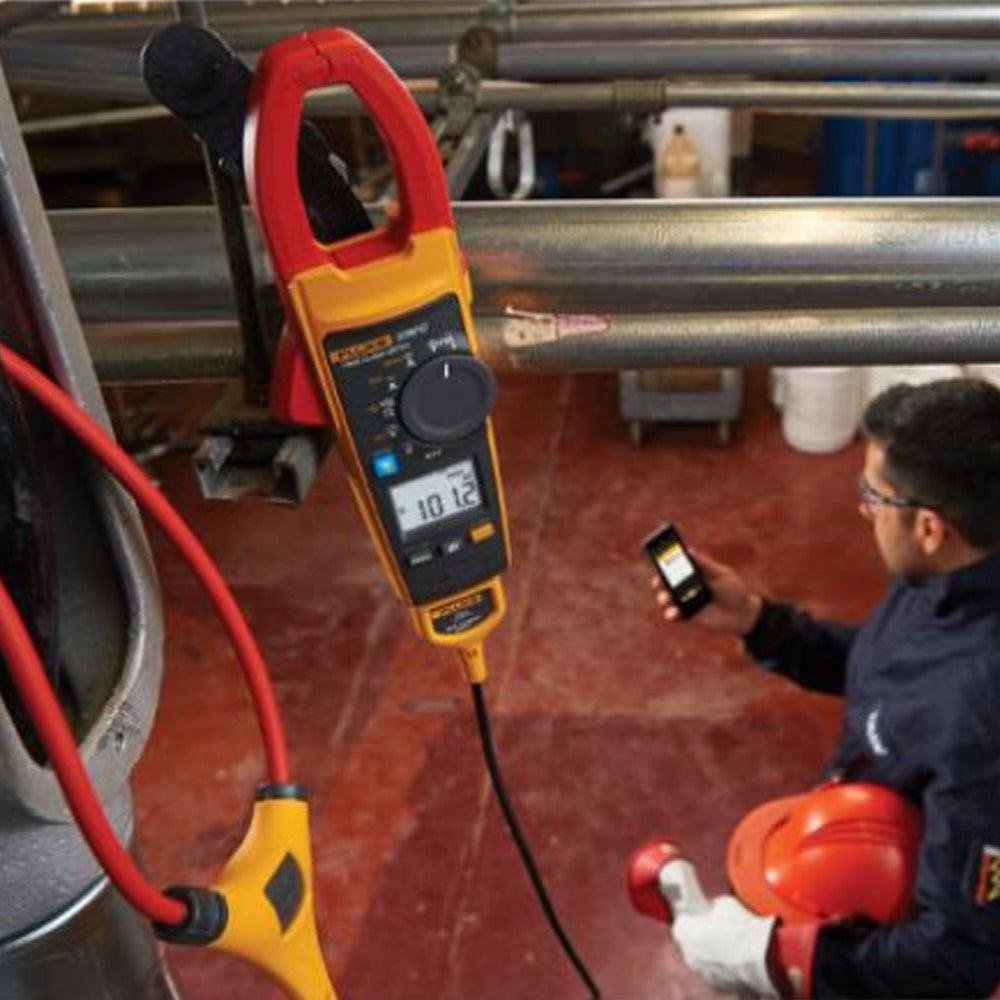

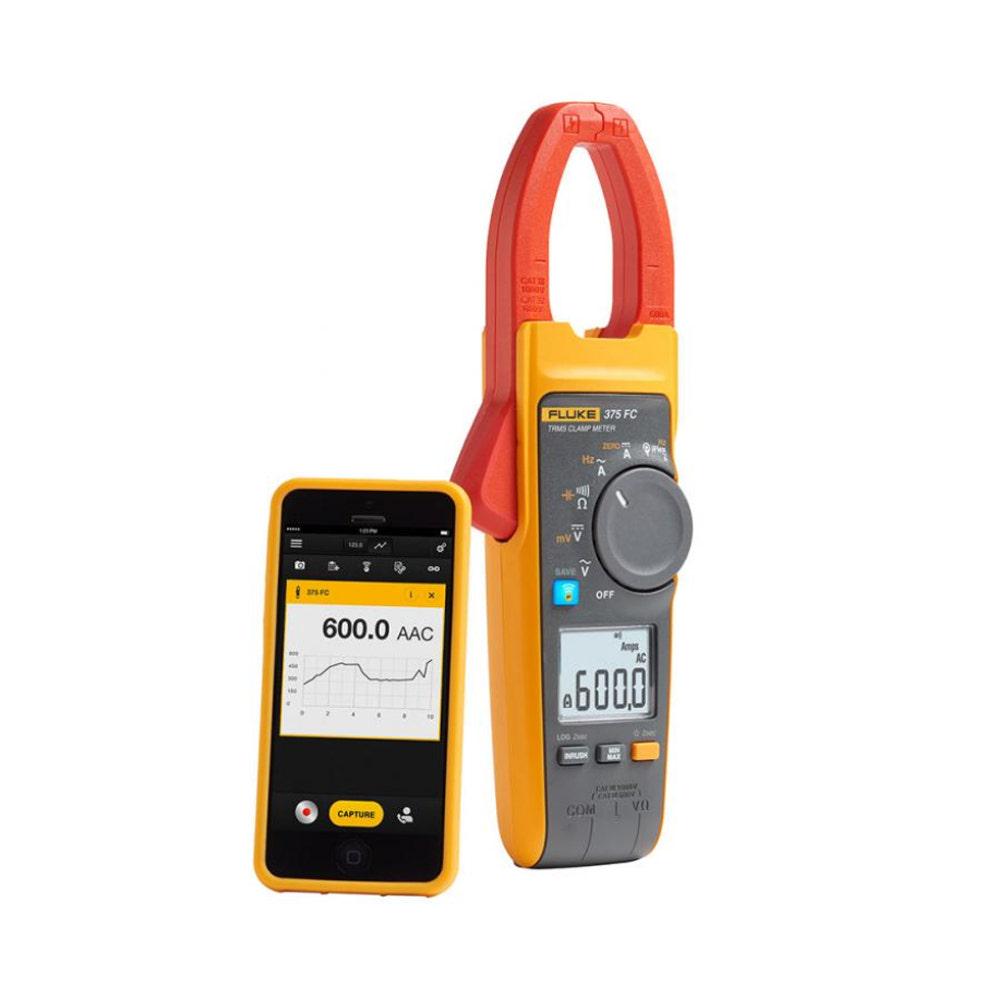

• Connect meter to smartphone using Fluke Connect Measurements
• Safely read measurements on phone, reducing PPE requirements
• Record results directly to phone and the Cloud
• Log intermittent faults while performing other tasks
• Create and share reports via email, or use ShareLive for real-time video calls
• iFlex flexible current probe extends measurement range to 2500 A ac
• TPAK magnetic hanging strap included
• Integrated VFD low pass filter for precise motor drive measurements
• Proprietary inrush measurement technology for accurate motor starting current
• Safety ratings: CAT IV 600 V, CAT III 1000 V
• Includes a three-year warranty

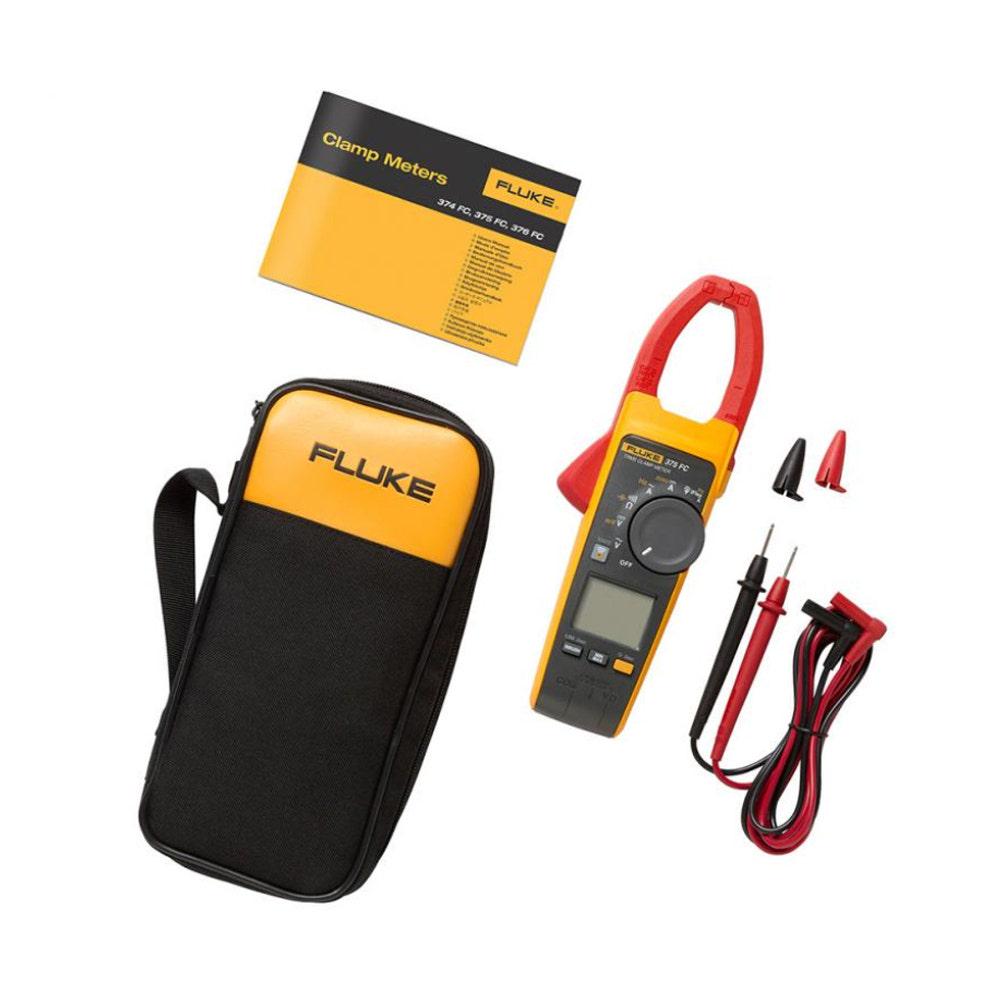

• Soft carrying case included
• 1000 A ac and dc current measurement capability
• True-rms voltage and current measurements for non-linear signals
• Frequency measurement up to 500 Hz with body jaw and iFlex
• Resistance measurement up to 60 k with continuity detection
• Min, max, average, and inrush recording for automatic variation capture
• 500 mV dc measurement range for accessory interfacing
• Capacitance measurement of up to 1000 F

Specifications

• Part No: FLU376FC
• Barcode: 95969798396
• Brand: Fluke
• Net Weight: 0.4 kg
• Product Length: 249 mm
• Product Width: 85 mm
• Product Height: 45 mm
• Maximum voltage between any terminal and earth ground: 1000 V
• Batteries: 2 AA, NEDA 15A, IEC LR6
• Operating temperature: -10 °C to +50 °C
• Storage temperature: -40 °C to +60 °C
• Operating humidity: non-condensing, 90% RH (10 °C to 30 °C)
• Operating altitude: 2000 m
• Storage altitude: 12,000 m
• Jaw opening: 34 mm
• Flexible current probe diameter: 7.5 mm
• Flexible current probe cable length: 1.8 m
• Safety: IEC 61010-1, Pollution Degree 2
• IP rating: IEC 60529: IP30, non-operating
