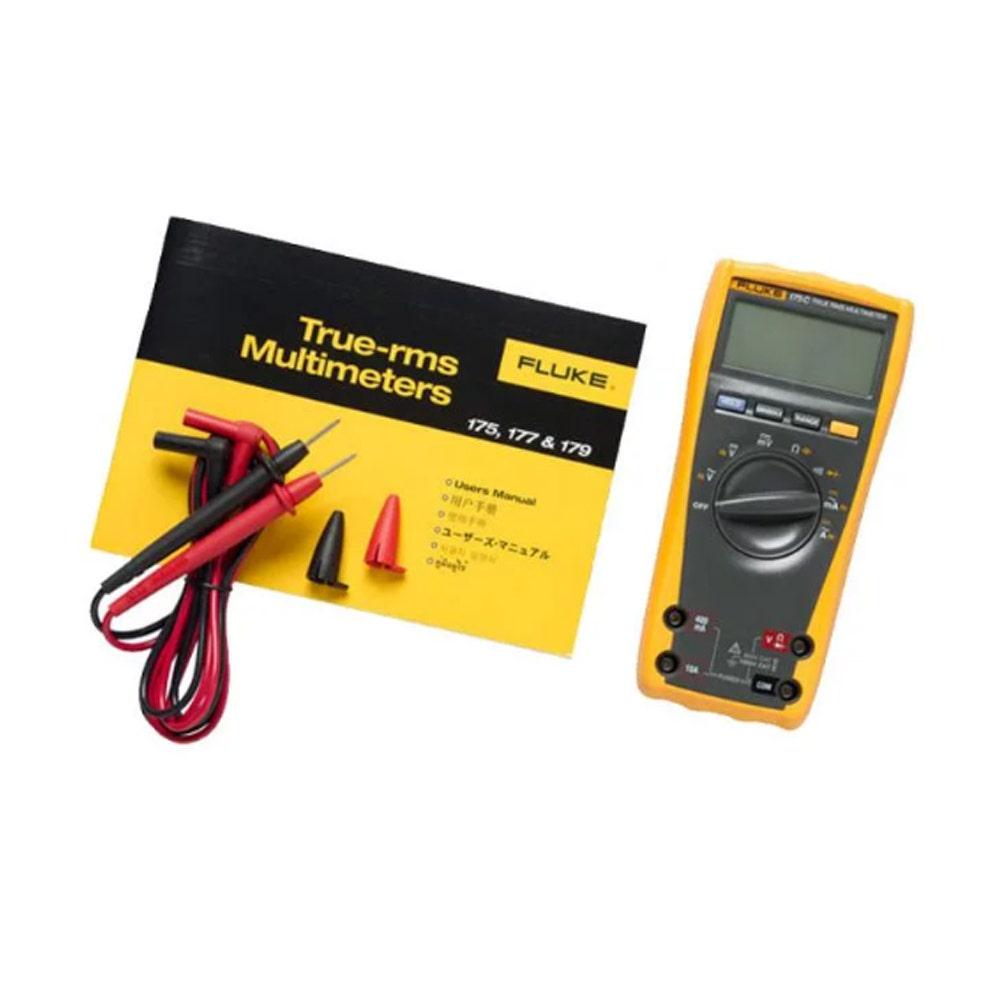

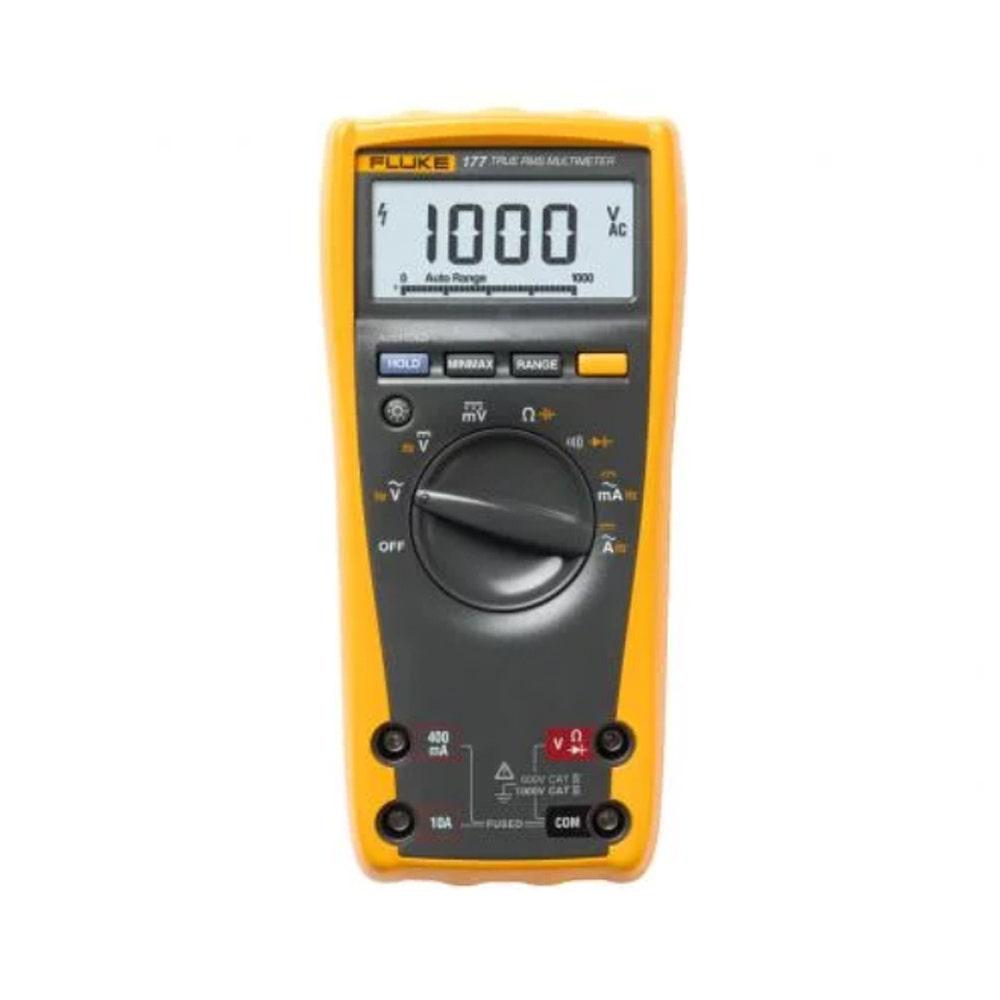

FLUKE 1000V 177 True-RMS Digital Multimeter FLU177

Features

• True-RMS digital multimeter preferred by professional technicians
• Measures AC and DC voltage up to 1000 V
• Delivers accurate True-RMS AC current and voltage readings
• Includes frequency, capacitance, resistance, continuity, and diode measurements
• Safety rated for CAT IV 600 V and CAT III 1000 V
• Manual and automatic ranging increases productivity
• Features a digital display with backlight for low-light conditions
• Allows closed case calibration via front panel
• Ergonomic case with integrated protective holster
• Limited lifetime warranty included
• 6000-count resolution for precise measurements
• Records Min/Max averages and has Display Hold/Auto Hold functions
• Basic accuracy of 0.09%

Specifications

• Max voltage DC: 1000 V
• DC voltage accuracy: ±(0.09% + 2)
• Max resolution DC voltage: 0.1 mV
• Max voltage AC: 1000 V
• AC voltage accuracy: ±(1.0% + 3)
• Max resolution AC voltage: 0.1 mV
• Max current DC: 10 A
• DC current accuracy: ±(1.0% + 3)
• Max resolution DC current: 0.01 mA
• Max current AC: 10 A
• AC current accuracy: ±(1.5% + 3)
• Max resolution AC current: 0.01 mA
• Max resistance: 50 M
• Resistance accuracy: ±(0.9% + 1)
• Max resolution resistance: 0.1
• Max capacitance: 10,000 µF
• Capacitance accuracy: ±(1.2% + 2)
• Max resolution capacitance: 1 nF
• Max frequency: 100 kHz
• Frequency accuracy: ±(0.1% + 1)
• Max resolution frequency: 0.01 Hz
• Operating temperature: -10°C to +50°C
• Storage temperature: -30°C to +60°C
• Humidity: 0% to 90% (0°C to 35°C), 0% to 70% (35°C to 50°C)
• Overvoltage category: EN 61010 1 to 1000 V CAT III
• Overvoltage category: EN 61010 1 to 600 V CAT IV
• Size: 43 x 90 x 185 mm
• Weight: 420 g
• Battery life: Alkaline ~200 hours typical, without backlight
