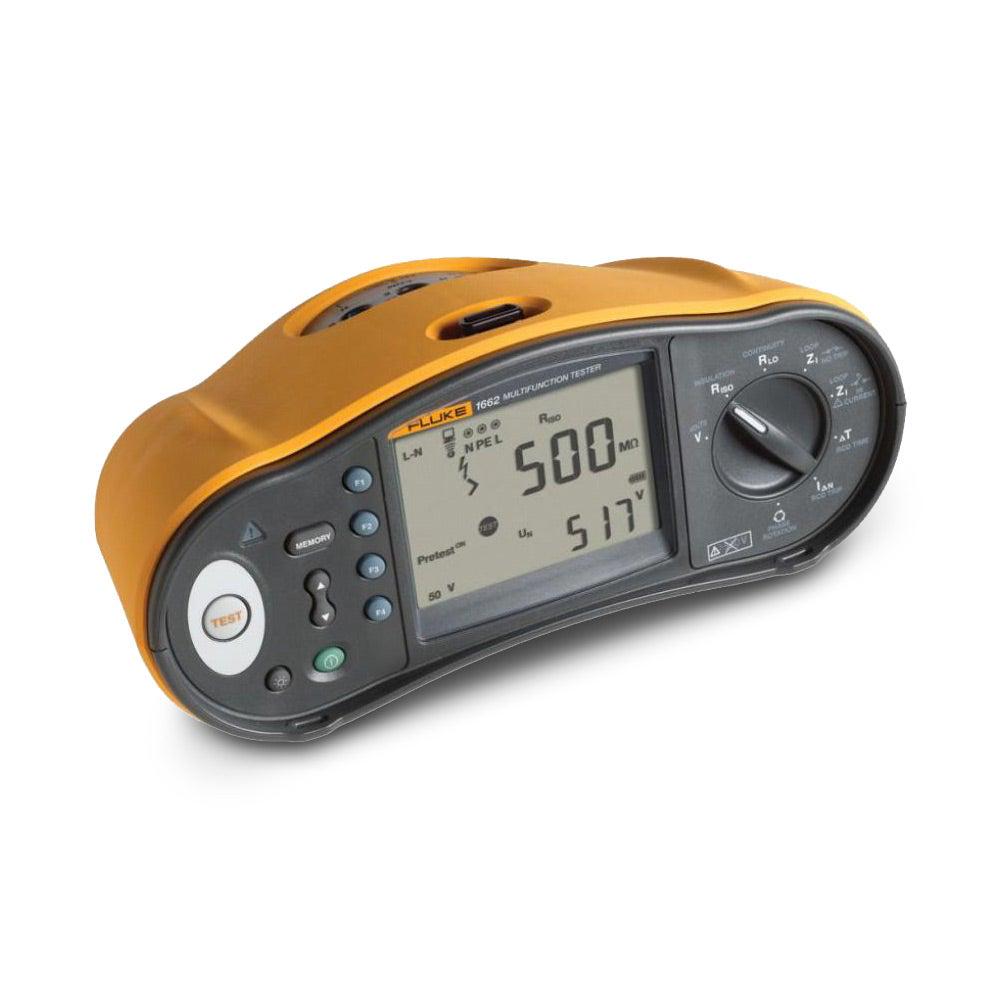

FLUKE 100-1000V Multifunction Installation Tester w. Memory FLU1662

Features

• Fluke 1662 Multifunction Installation Tester provides reliable installation testing
• Tests voltage and frequency
• Measures insulation resistance, loop, and line resistance
• Checks wiring polarity to identify broken N wires
• Measures motor windings with continuity test
• Calculates prospective earth fault current (PEFC/IK) and prospective short-circuit current (PSC/IK)
• Tests RCD switching time and tripping level (ramp test)
• Tests RCD trip time and current for RCD type A & AC in one test
• Measures RCD variable current
• Provides automatic RCD test sequence
• Includes Z-max memory for loop tests for easy evaluation
• Unique zero adapter for accurate test lead and mains cord compensation
• Phase sequence indicator included
• Comes with hard carrying case, padded strap, and remote control probe and lead
• On/Off switchable auto-start for RCD and loop test
• Self-test feature for enhanced confidence in results

Specifications

• Part No: FLU1662
• Barcode: 95969766821
• Brand: Fluke
• Size (L x W x H): 10 x 25 x 12.5 cm
• Weight (incl. batteries): 1.3 Kg
• Battery size and quantity: Type AA, 6 pcs
• Sealing: IP-40
• Safety: Complies with EN61010-1 Ed 2.0, UL61010, ANSI/ISA s82.02.01, CAN/CSA c22.2 No. 1010
• Overvoltage: CAT III / 500V; CAT IV 300V
• Performance: EN61557-1 to EN61557-7, EN61557-10
• Voltage: 1000V
