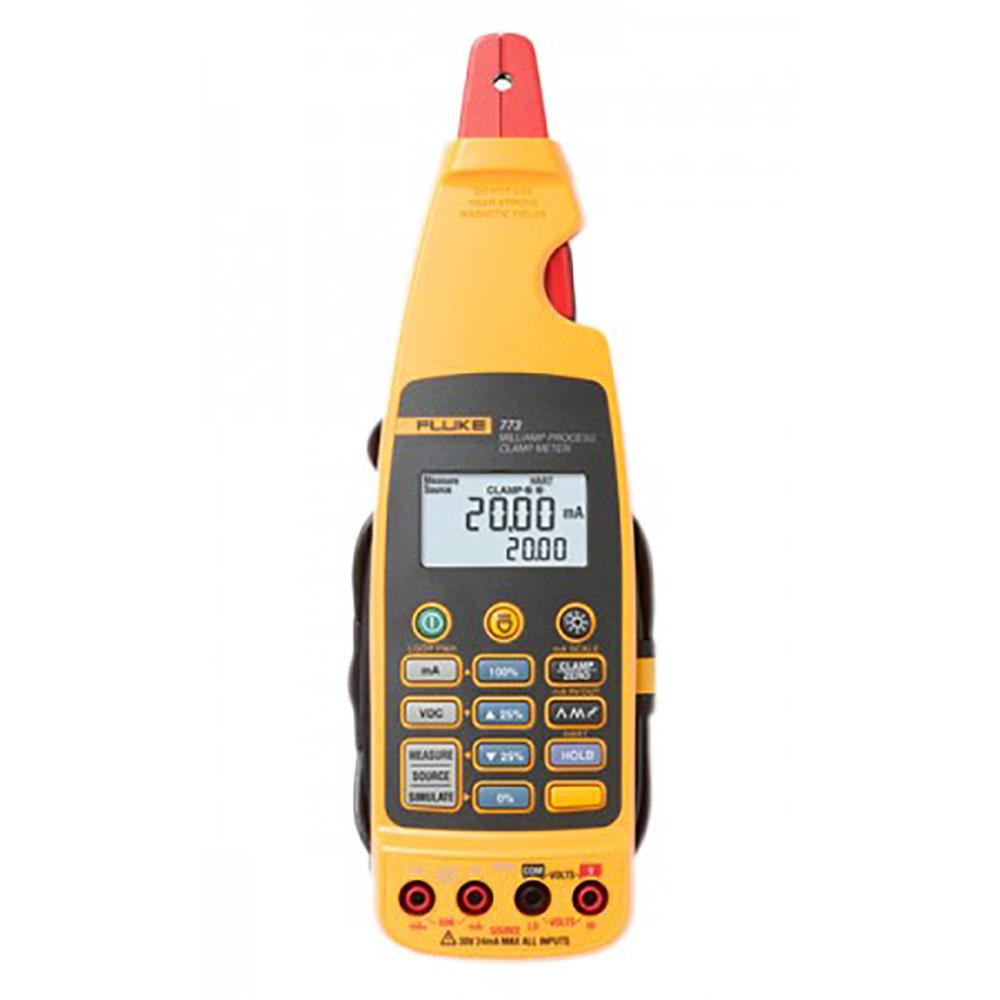

FLUKE 0-20.99Ma Milliamp Clampmeter FLU773

Features

• Accurate and versatile Fluke 773 milliamp clamp meter
• Measures 4 to 20 mA signals without breaking the loop
• Best in class 0.2% accuracy
• Sources 4 to 20 mA signals for testing control system I/O or I/Ps
• Captures changing measurements with Hold function
• Detachable clamp with extension cable for tight spaces
• Measures low-level DC current
• Delivers 0.01 mA resolution and sensitivity
• Extends battery life with auto-off and backlight timeout
• Measures DC voltage to verify 24V power supplies or voltage I/O signals
• Ideal for troubleshooting transmitters, valves, and PLCs in process plants
• Measures up to 99.0 mA non-contact, including 10 to 50 mA signals in older control systems

Specifications

• mA measurement resolution/range (measured by clamp): 0 to 20.99 mA
• Accuracy: 0.2% + 5 counts
• mA measurement resolution/range (measured by clamp): 21.0 mA to 100.0 mA
• Accuracy: 1% + 5 counts
• mA measurement resolution/range (measured in series with test jacks): 0 to 24.00 mA
• Accuracy: 0.2% + 2 counts
• mA source maximum mA drive: 24 mA into 1,000 ohms
• Voltage source maximum drive current: 2 mA
• Voltage measure resolution/range: 0 to 30.00 V DC
• Diameter of measurable conductor: 0.177" or 4.5 mm max
• Operating temperature: -10 to 50ºC
• Storage temperature: -25 to 60ºC
• Operating altitude: 0 to 2000 m
• IP rating: IP 40
• Vibration: Random 2 g, 5 to 500 Hz
• Shock: 1 meter drop test (except the jaw)
• EMI/RFI: Meets EN61326-1
• Temperature coefficient: 0.01% ºC (28ºC)
• Battery type: 4 x AA 1.5 V Alkaline
• Battery life: 12 hours in mA source into 500 ohms
• Warranty: 3 Years for Electronics, 12 Months for Cable and Clamp Assembly
• Includes: Four AA alkaline batteries, soft carrying case, TL75 test leads, AC 72 detachable clip, TL 940 mini hook test leads, instruction sheet, hanging tool with hook and loop strap
