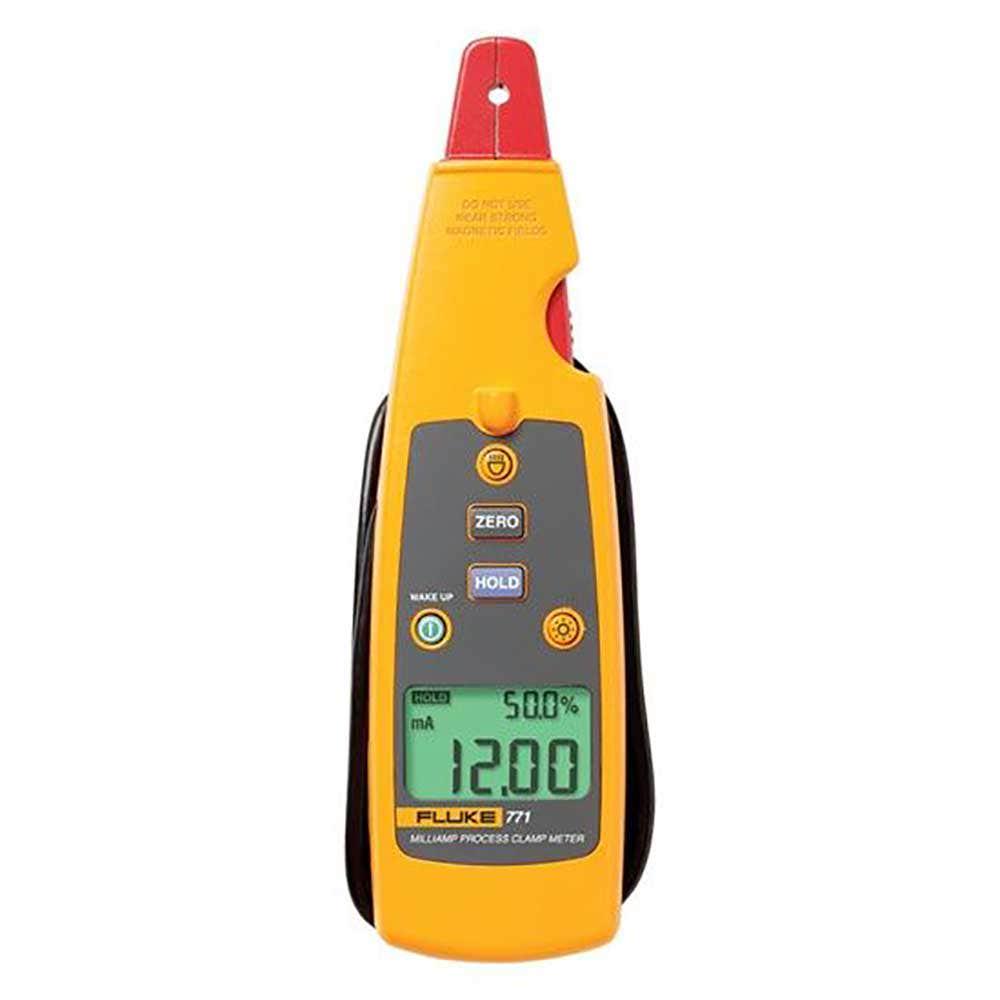

FLUKE 0-20.99Ma Milliamp Clampmeter FLU771

Features

• Measures 4-20 mA signals without breaking the loop
• Best in class 0.2% accuracy
• 0.01 mA resolution and sensitivity
• Detachable clamp with extension cable for tight space measurements
• Loop calibrator for PLC and control system analog I/O
• Dual backlit display showing mA measurement and percent of 4 to 20 mA span
• Hold function captures and displays changing measurements
• Measurement spotlight illuminates hard-to-see wires
• Auto-off and backlight timeout extend battery life
• Measures 10 to 50 mA signals in older control systems
• Automatically adjusts 4 to 20 mA output for remote testing

Specifications

• mA measurement (clamp): 0 to 20.99 mA, Accuracy: 0.2% + 2 counts
• mA measurement (clamp): 21.0 mA to 100.0 mA, Accuracy: 1% + 5 counts
• Diameter of measurable conductor: 0.177 in or 4.5 mm max
• Operating temperature: -10 to 50°C
• Storage temperature: -25 to 60°C
• Operating altitude: 0 to 2000 m
• IP rating: IP 40
• Vibration: Random 2 g, 5 to 500 Hz
• Shock: 1 m drop test (except the jaw)
• EMI/RFI: Meets EN61326-1
• Temperature coefficient: 0.01% °C (28°C)
• Battery type: 2 x AA 1.5 V Alkaline, IEC LR6
• Battery life: 40 hours typical
• Warranty: Three years for electronics; One year for cable and clamp assembly
• Includes: Soft Carrying Case, Users Manual
