Maximum cutting capacity of 10inch saw blade for 120mm high skirting boards
Dual-line laser beams for precise cut width markings

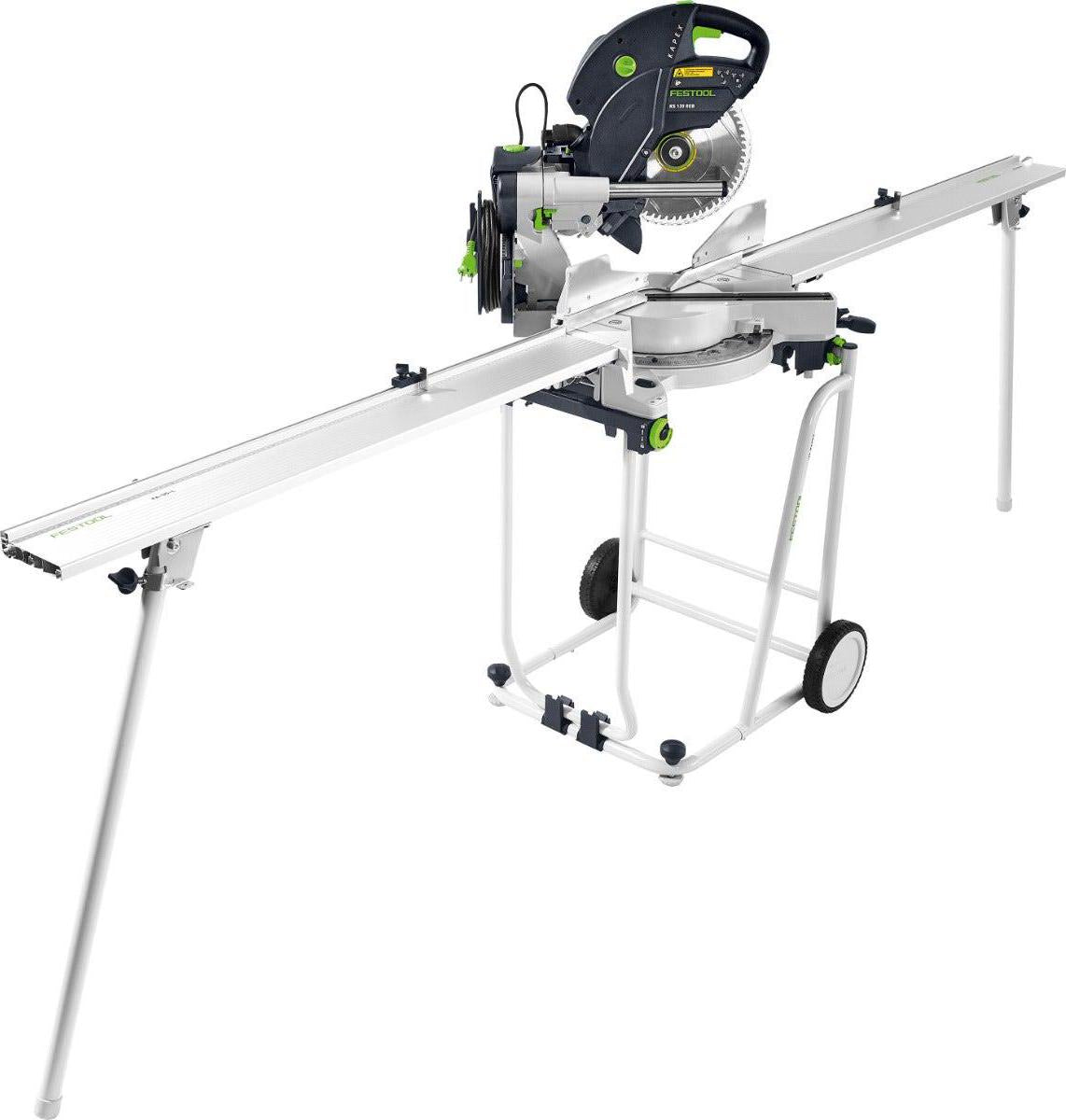

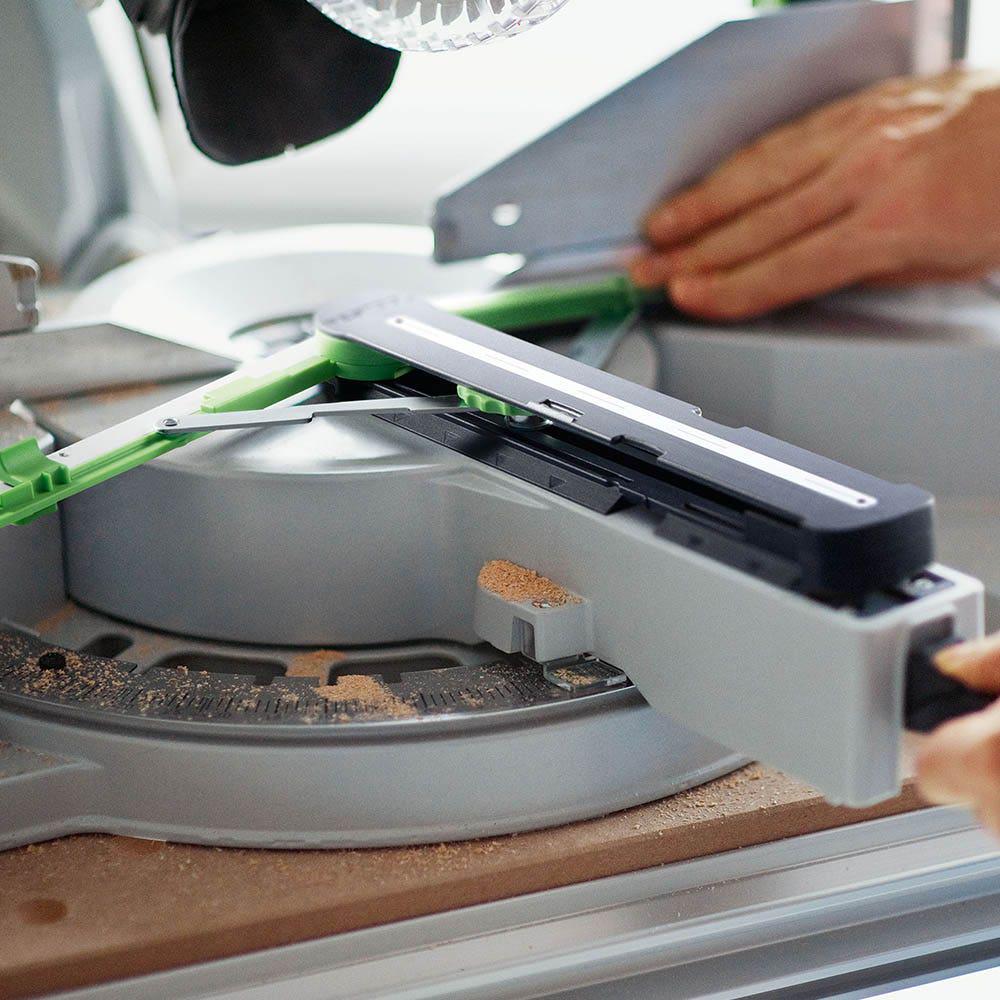

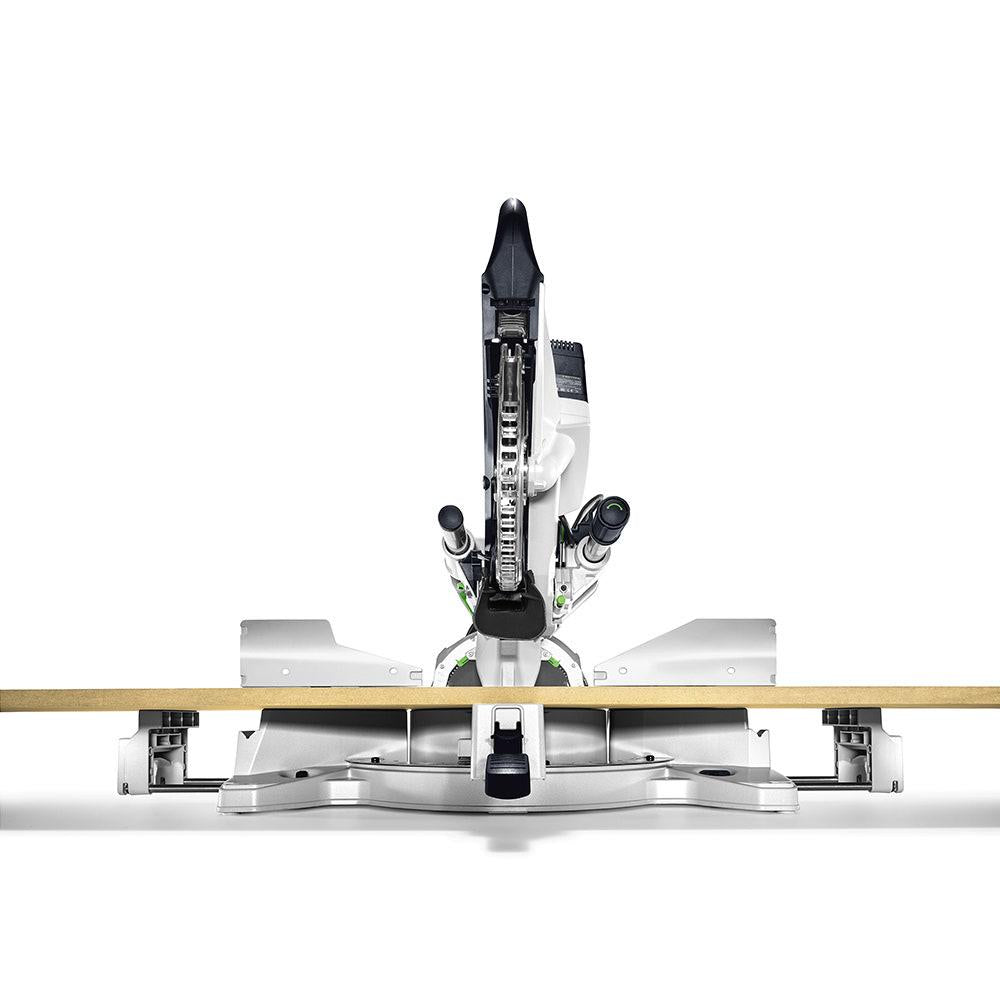

Expandable side fences for secure support of long workpieces
Fine adjustments for millimetre precision in angle and bevel cuts

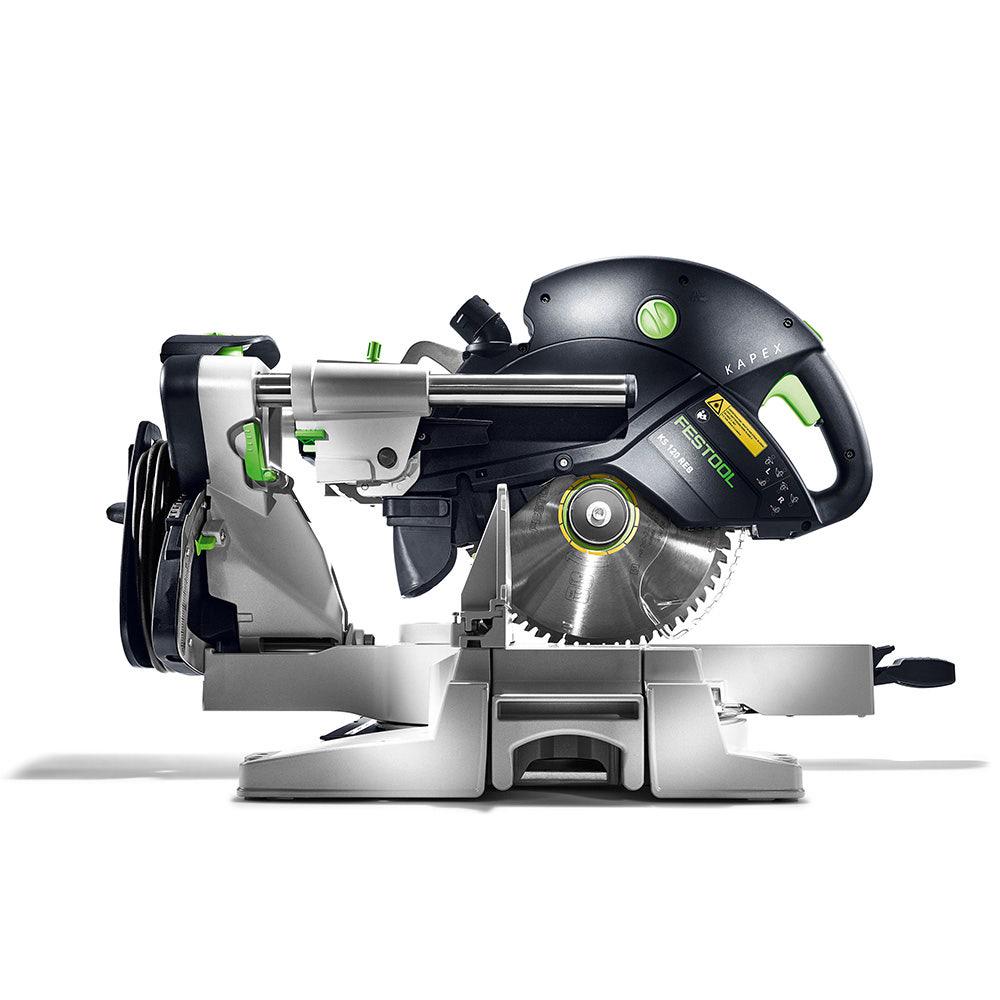

Twin sliding rails for smooth saw blade guidance
Compact design for easy operation in restricted spaces

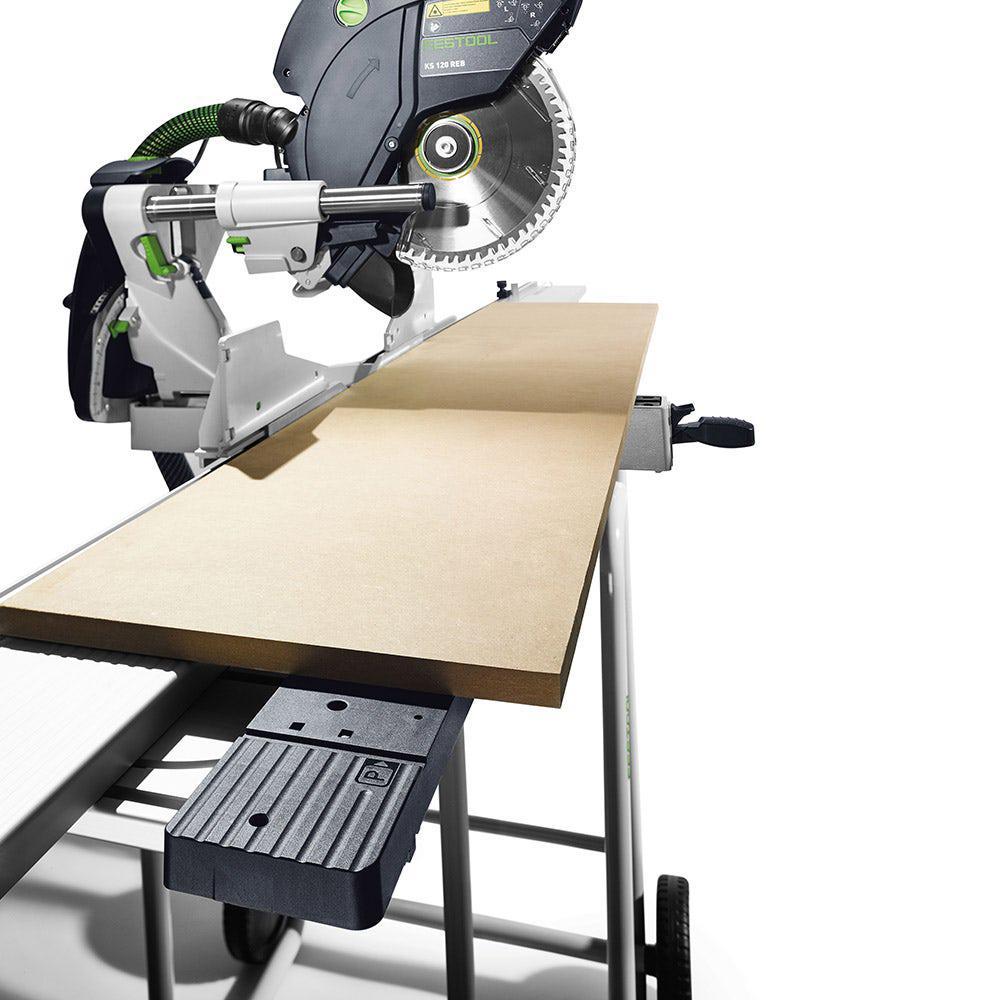

Cuts boards and panels up to 305 mm x 88 mm
Cuts crown moulding up to 168 mm at finished angle

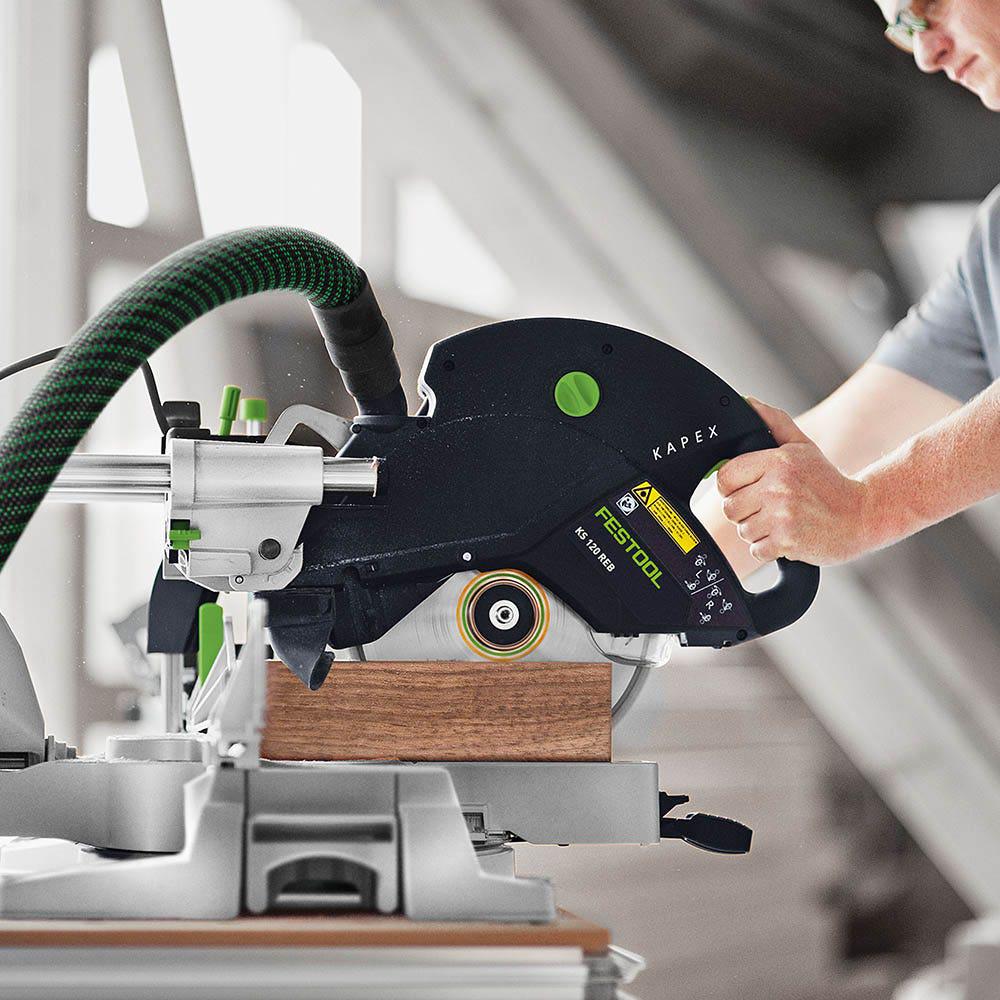

Cuts framing timber and beams up to 88 mm thick
Cuts plastic and steel cable ducts
Cuts strip material to fit
Trims aluminium and non-ferrous metal profiles
Bevel cuts up to 47 degrees on either side
Mitres up to 50 degrees left and 60 degrees right
Compact, lightweight design for portability
Dual-line laser for accurate trenching
Easy blade changes to match cutting material

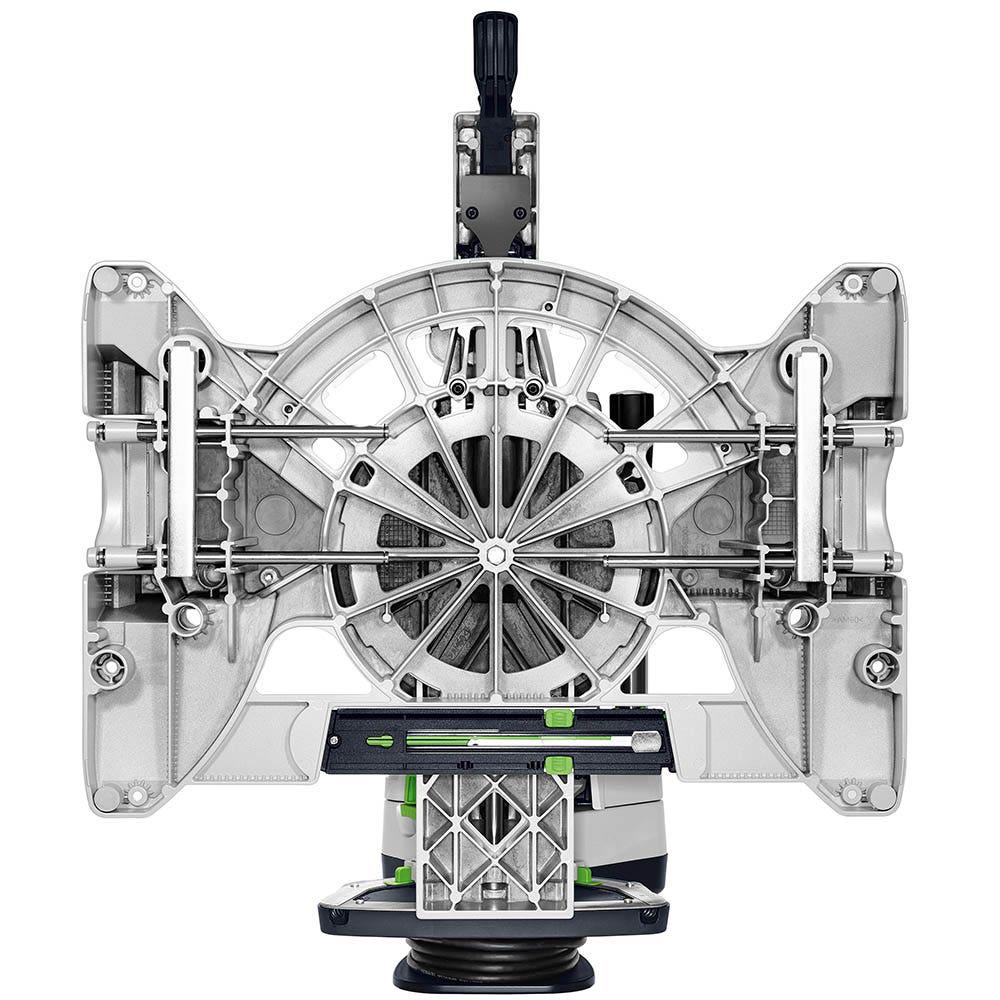

High-quality die-cast magnesium for durable base
Twin sliding rails with dual ball bearing for reliable blade guidance
Specifications
Cutting Depth at 45°/90°: 215 mm x 88 mm
Cutting Capacity at 90°: 305 mm x 88 mm
Cutting Depth 45°/45° Left: 215 mm x 55 mm
Cutting Depth 45°/45° Right: 215 mm x 35 mm
Cutting Depth 90°/90°: 60 mm x 120 mm
Crown Moulding Mitre Cut at 45°: 168 mm
Mitre Angle: 50° / 60°
Inclination Angle: 47° / 47°
No Load Speed: 1,400 rpm - 3,400 rpm
Saw Blade Diameter: 260 mm
Dust Extraction Connection Diameter: 27 mm / 36 mm
Power Consumption: 1,600 W
Motor Type: Brushed
Dimensions W x D x H: 713 mm x 500 mm x 470 mm
Tool Weight: 23.1 kg
``
