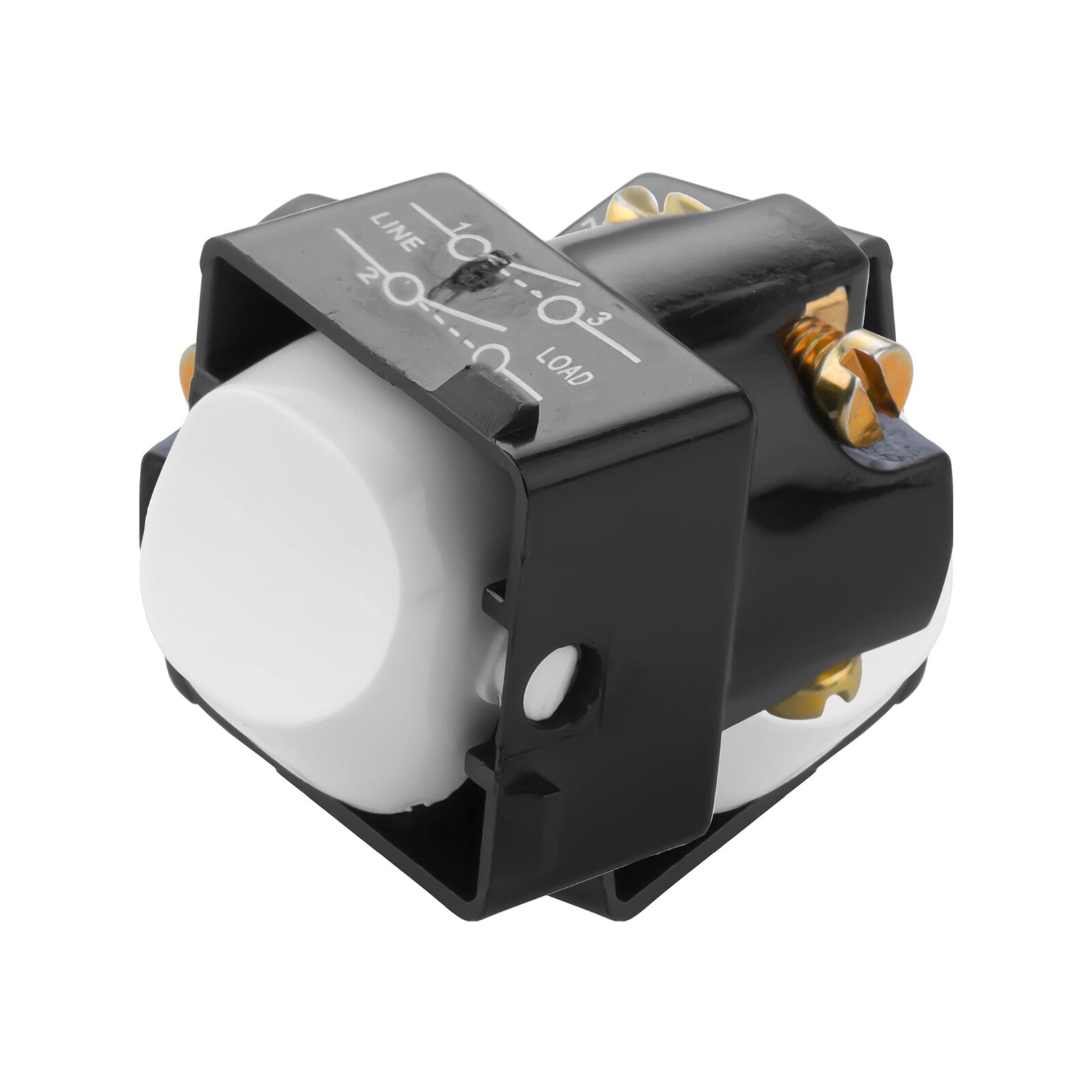

Deta Double Pole Switch Mechanism

Colour : white

Model Name : Deta Double Pole Switch Mechanism

Model Number : 6022B

Material : polycarbonate

Volume : NAL

Switching Type: Standard, Cordline or Pull Cord : standard

Outdoor Use : No

Switch Mechanism: Spare Part (Yes/No) : Yes

Voltage (V) : 250

Commercial (Yes/No) : Yes

Wattage (watts) : 2400

IP Rating : No

Product Material: Plastic, S/S, ABS : polycarbonate

Architrave: Yes/No

Switch Mechanism and Wall Plate: Number of Gangs : 1

Pack Size : 1

Fan Controller - Knob Spare Part (Yes/No) : No

Indoor Use : Yes

Locator Light (Yes/No) : No

Number of Switches : 1

Cover Plate Included (Yes/No) : No

Switch Configuration: Vertical or Horizontal: Both

Profile Type: Standard, Slim : standard

Amperage (amps) : 10

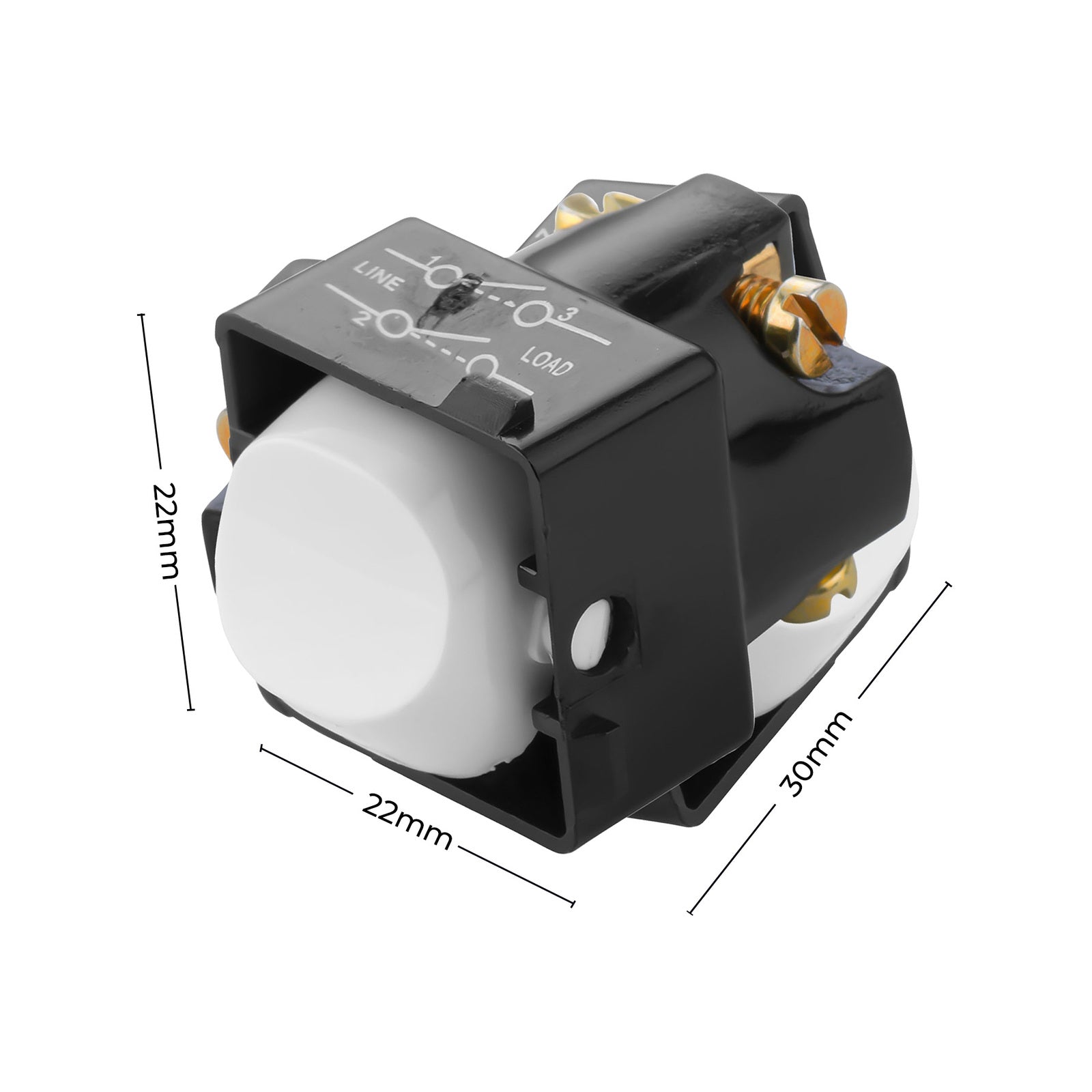

Dimensions : 22mm 22mm 30mm

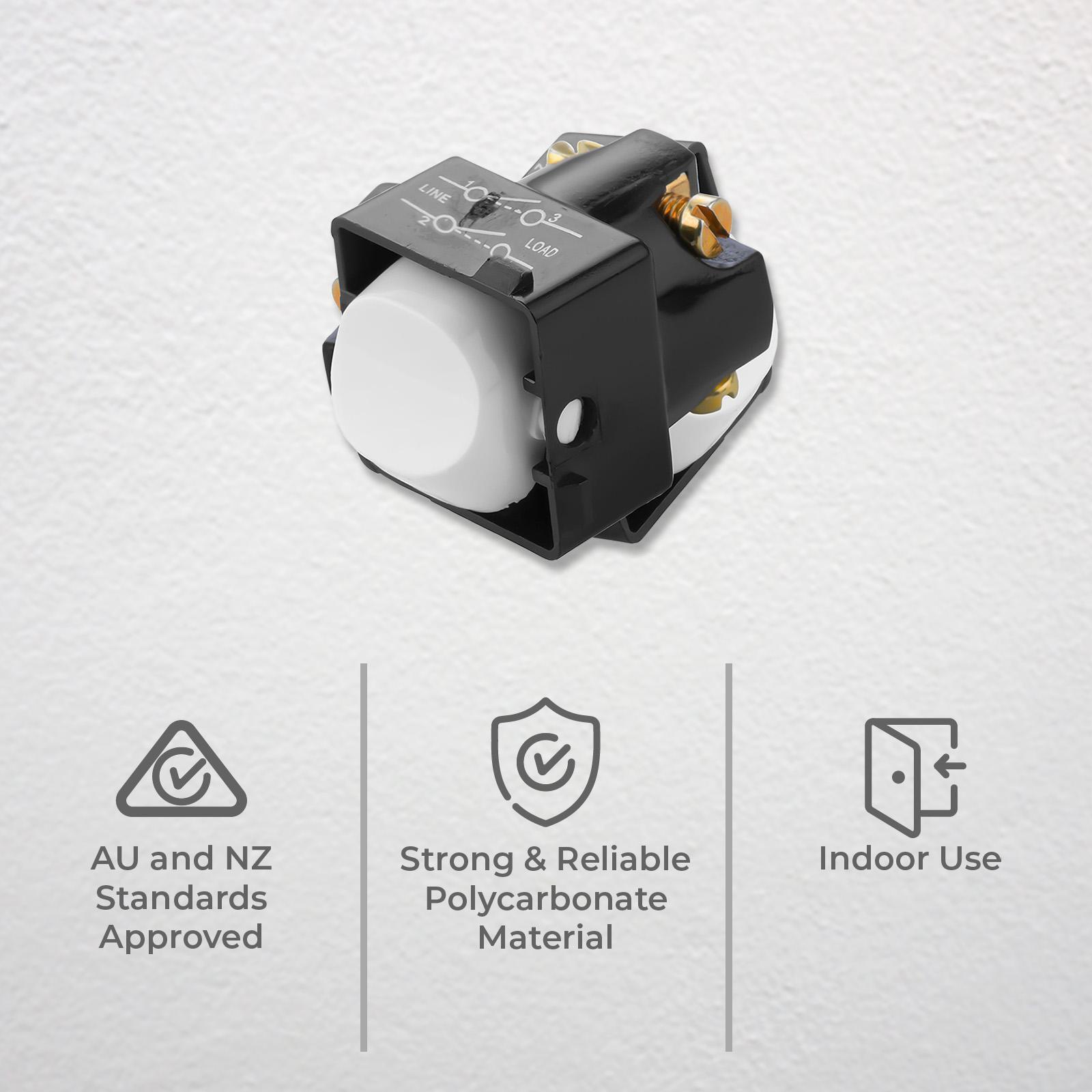

• Complied with the latest AS/NZS 3133 switching standard
• New design switch mech body shape to fit into circular cut out
• Double pole mechanism rated at 10A/10AX
• Switch mechanism with larger terminal size to fit more wiring and increase screw torque rating to improve reliability
• Double pole switch for kitchen and special appliance application

The Deta Double Pole Switch Mechanism complies to AS/NZS 3133 safety standards. It has a circular body for easy installation and 4 terminals to accommodate 2 x 2.5 mm cable.
