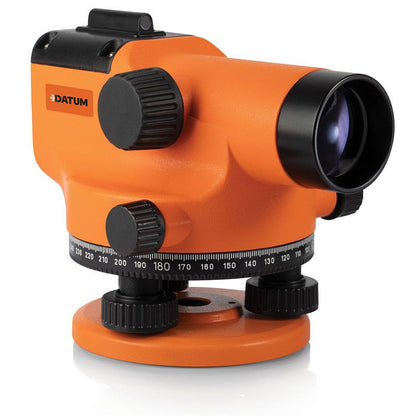

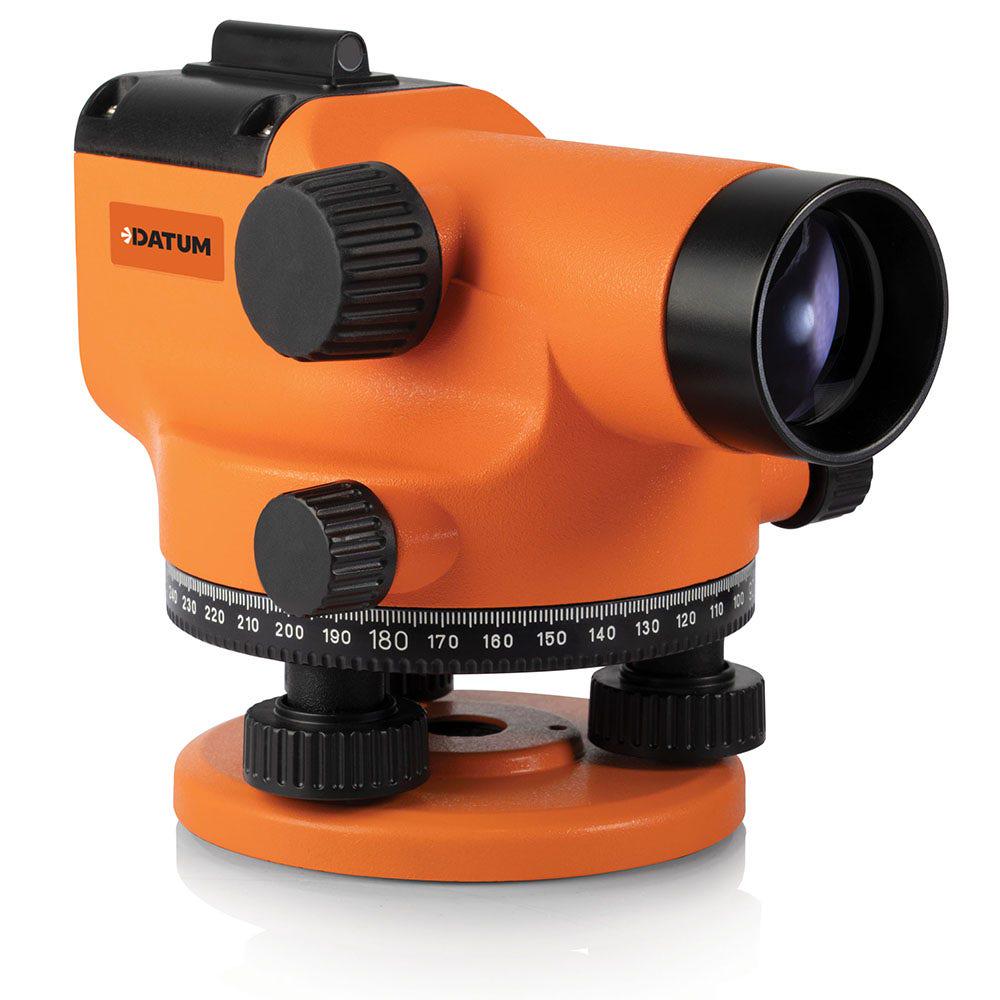

DATUM 32x Magnification Optical Level DL32X

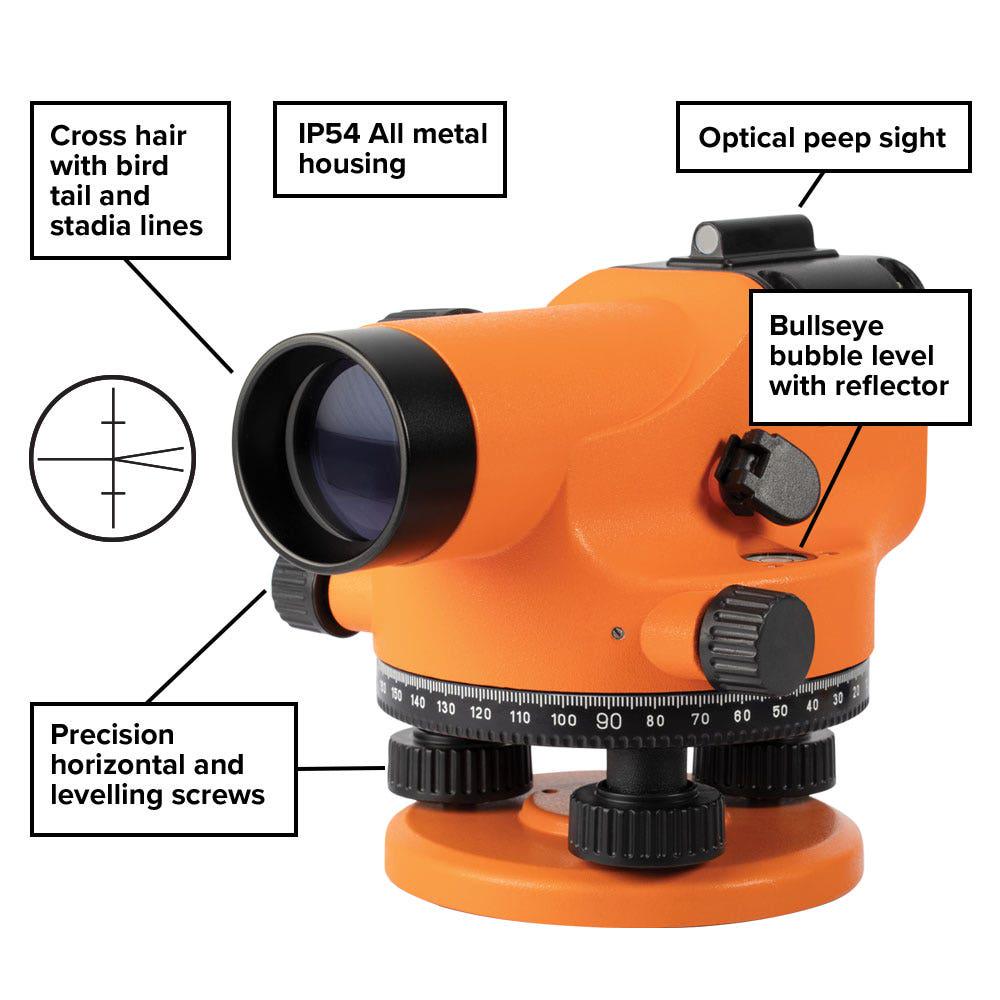

Features

• All steel dust and water-resistant housing for durability in tough conditions
• Unique optical peep sight for accurate levelling measurements
• Bullseye bubble level with circular reflector for ease of use
• Crosshair with bird tail and stadia lines for precision
• Precision levelling screws for enhanced accuracy
• Ideal for surveying, measuring, or setting horizontal levels
• Magnification: x32
• Field of view: 1°20'
• Erect image for clear visibility
• Stadia multiplication: 100
• Min sighting distance: 40cm
• Effective aperture lens size: 36mm
• Accuracy: ±1mm at 1km double run levelling
• Levelling accuracy: ±3°
• Circular level accuracy: 8'/2mm
• Setting accuracy: ±0.3"
• Compensator with air-damping system (X-type suspension wire)
• Working range: ±15'
• 360° horizontal circle protractor
• Fine-tune horizontal adjustment
• 5/8" tripod thread

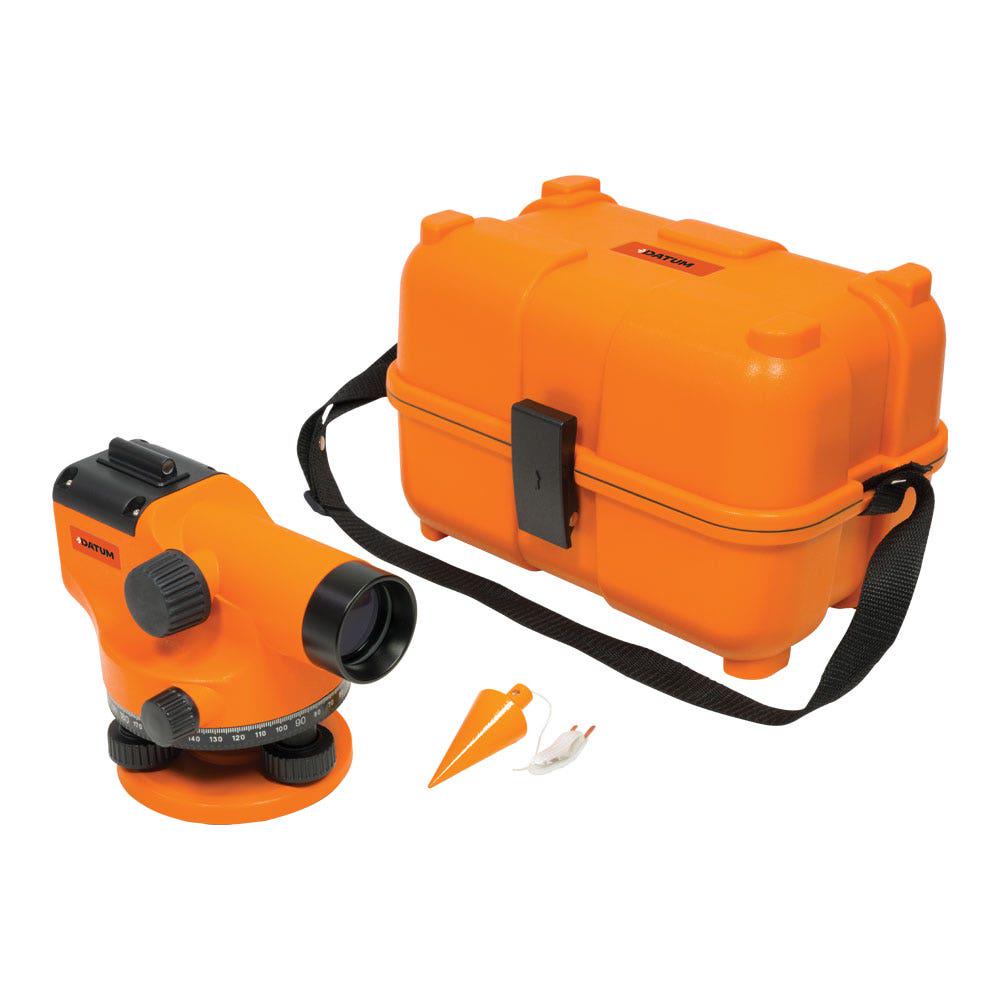

• Includes optical level, adjusting pin, hex key, plumb bob, owner's manual, and tool case

Specifications

• Part No: DL32X
• Barcode: 9328225049354
• Brand: DATUM
• Warranty: 1 Year
• Net Weight: 2.5 kg
• Product Length: 200 mm
• Product Width: 300 mm
• Product Height: 200 mm
