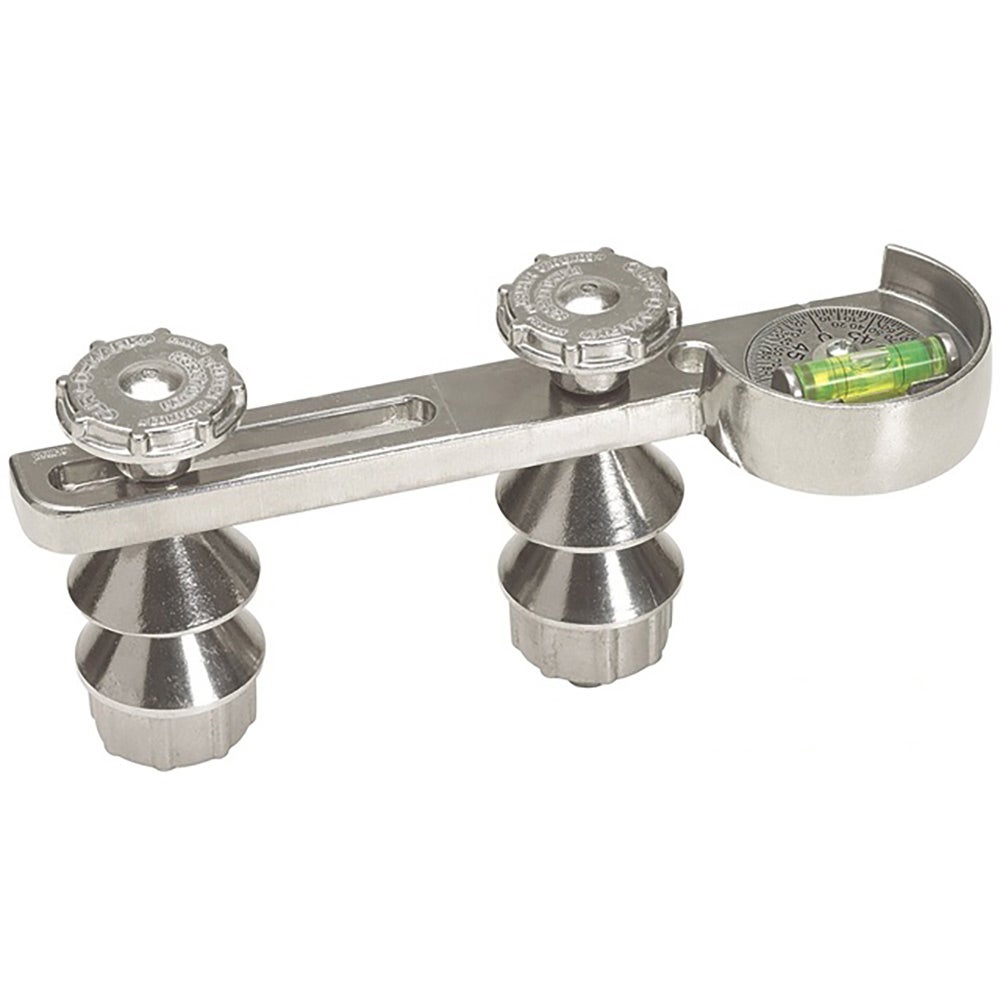

CURVOMARK Dial Angle Flange Level No 20 Contour KC-J1891

Features

• Versatile pipefitting tool for flange alignment and angle setting
• Includes flange pins for enhanced functionality
• Can be used as a dial degree utility level or for two-holing flange alignment with attachments
• Easy to use and time-saving
• Equipped with 2 threaded, self-aligning flange pins (conical spacer nut and bolts)
• One flange pin is stationary; the other slides up to 140mm (5-1/2 in) for various bolt hole spacings
• Flange pins fit bolt hole sizes from 15-44mm ID
• Constructed from cast aluminum with a protective housing and adjustable DSL
• Tool body thickness is 12mm (1/2 in) with a machined surface
• Level bubble protected from weld spatter and breakage by built-in housing

Specifications

• Part No: KC-J1891
• Barcode: 024886074238
• Brand: CURVOMARK
• Warranty: 1 Year
