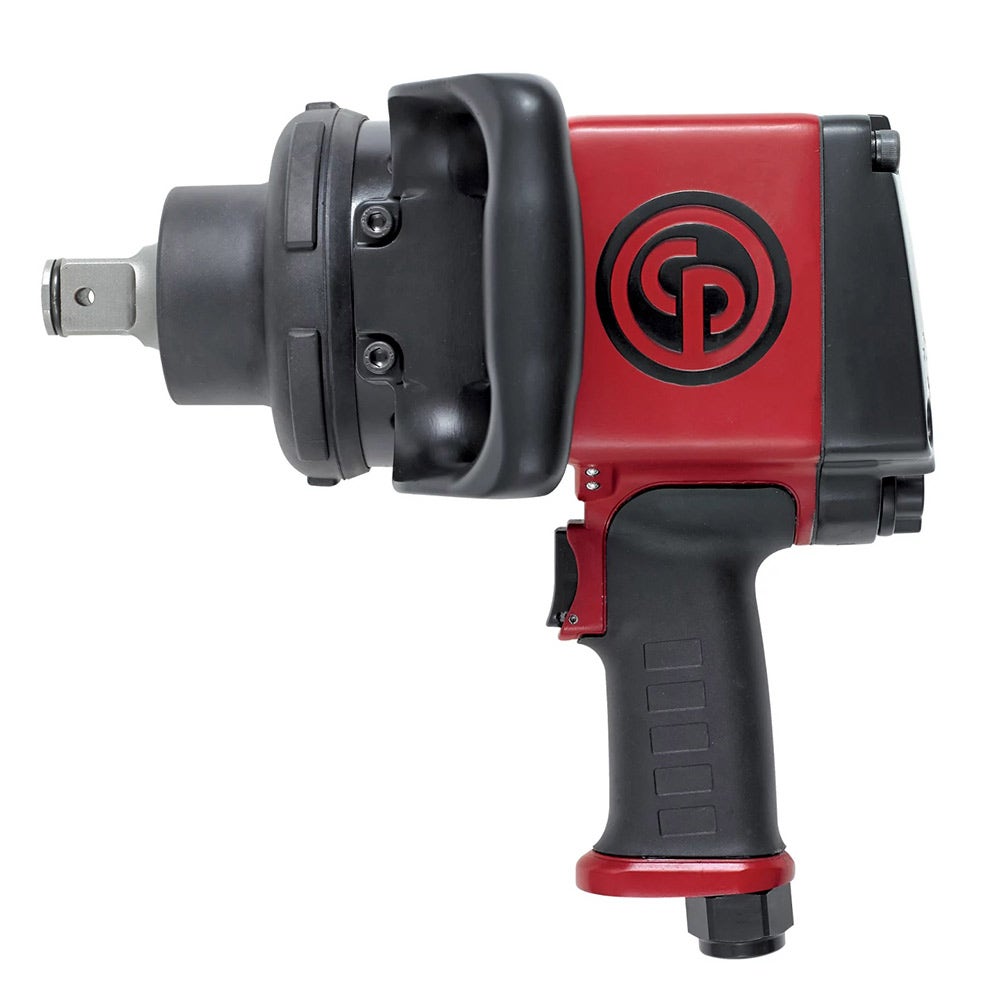

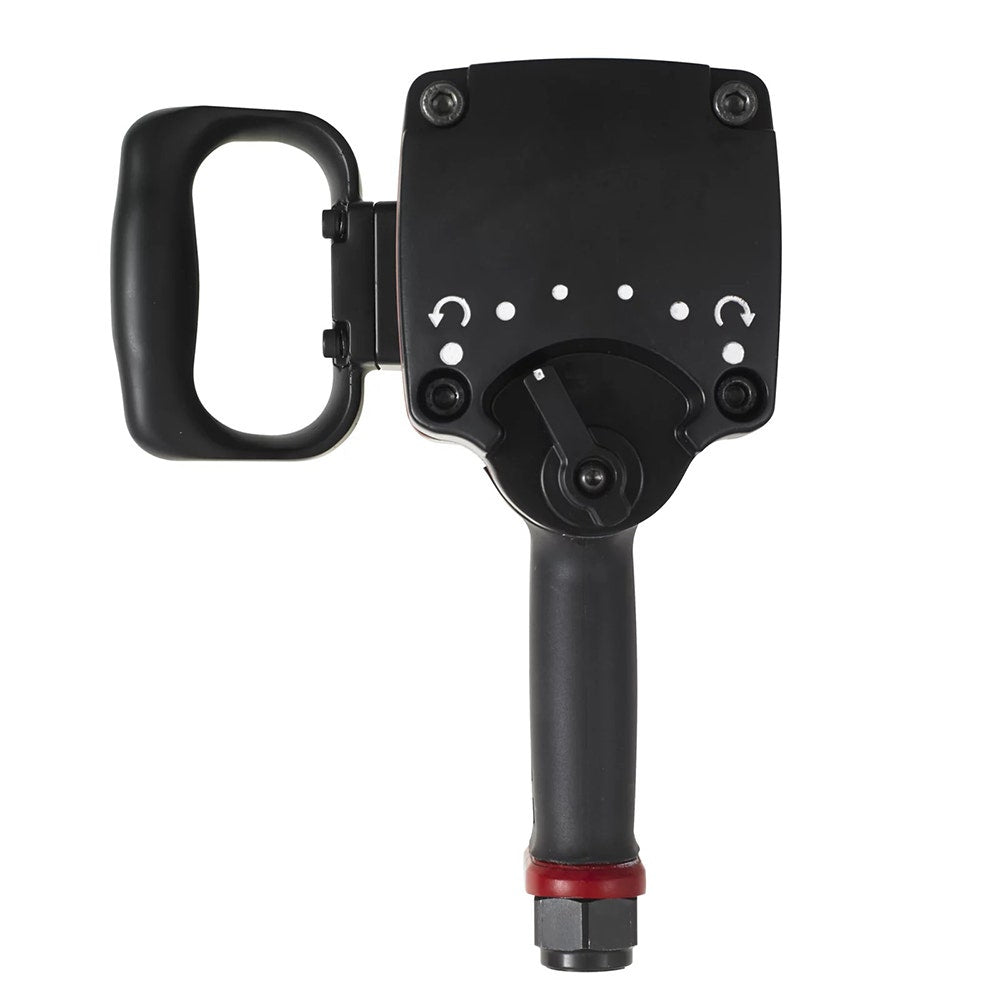

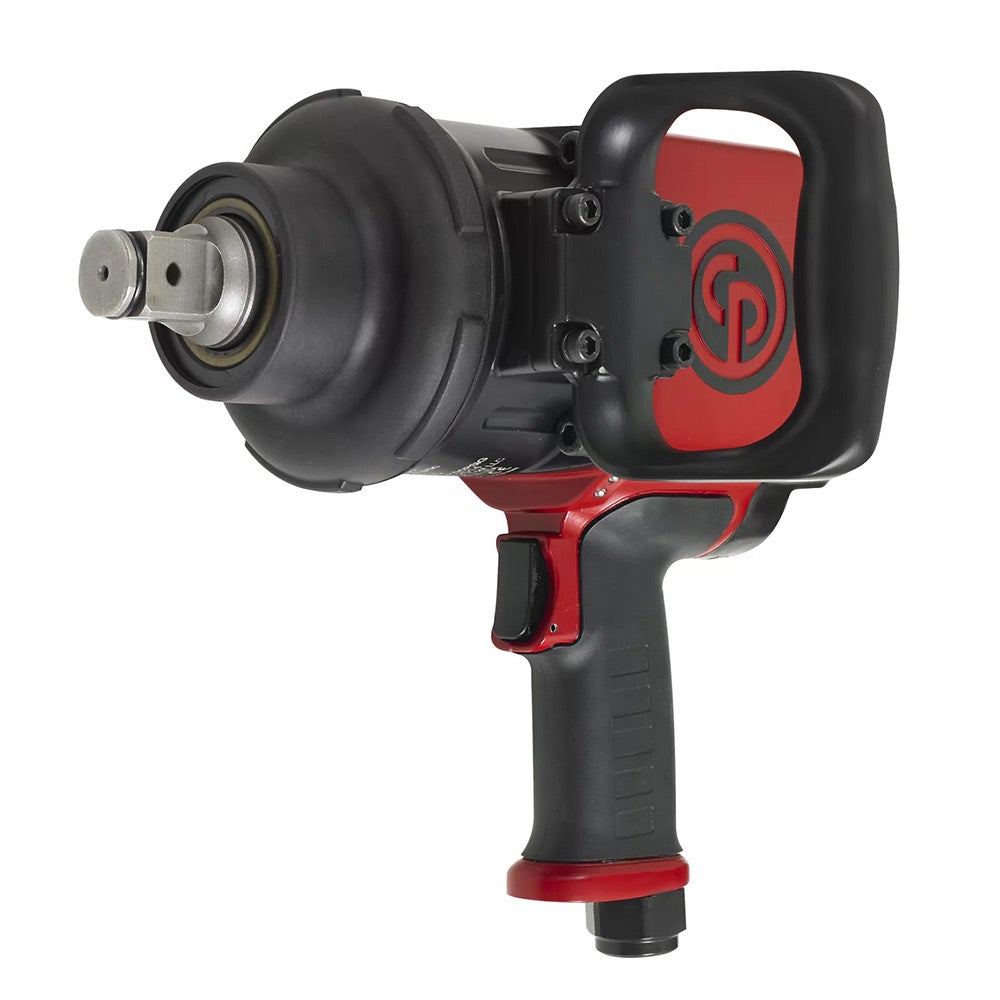

CHICAGO PNEUMATIC 1inch Drive Air Impact Wrench CP7776

Features

• Pinless closed reinforced rocking dog clutch mechanism
• TPR handle & side handle with 4-position rotation
• Integrated regulator in forward/reverse knob with 3 power settings
• Rubber bumper for tool and application protection
• Angled down exhaust directs air away from the workspace
• Ultimate operator comfort with 4-position handle rotation

Specifications

• Square drive: 1"
• Actual air consumption: 15.6 l/s (Metric) / 33 cfm (Imperial)
• Air inlet thread size: 1/2"
• Average air consumption: 3.9 l/s (Metric) / 8.2 cfm (Imperial)
• Bolt size: M32 mm
• Free speed: 5000 rpm
• Maximum Torque (reverse): 2400 Nm (Metric) / 1770 ft.lbs (Imperial)
• Working Torque Range (fwd): 955 - 2073 Nm (Metric) / 704 - 1530 ft.lbs (Imperial)
• Socket retainer: Dual (hole+friction)
• Clutch type: Pinless closed rocking dog
• Handle type: Pistol
• Part No: CP7776
• Barcode: 15451715359
• Brand: Chicago Pneumatic
• Warranty: 1 Year
