CARBITOOL 5 32inch TC Straight Down-Cut Finishing Spiral Router Bit for Wood - 1 4inch Shank TSLW 5
CARBITOOL 5 32inch TC Straight Down-Cut Finishing Spiral Router Bit for Wood - 1 4inch Shank TSLW 5
Couldn't load pickup availability
CARBITOOL has a long standing reputation for excellence in the manufacture of carbide tools for the woodworking, cabinetry, joinery, furniture, timber and panel industries.
CARBITOOL utilises the latest CNC (Computerised Numerical Controlled) technology ensuring their products are manufactured to the highest levels of quality and accuracy. CARBITOOL is committed to ongoing product development and quality improvement.
CARBITOOL Router Bits are an industrial-grade cutting solution. Thanks to their precision ground, sub-micrograin carbide, these bits not only cut extremely quickly and efficiently, they last longer.
Product Description

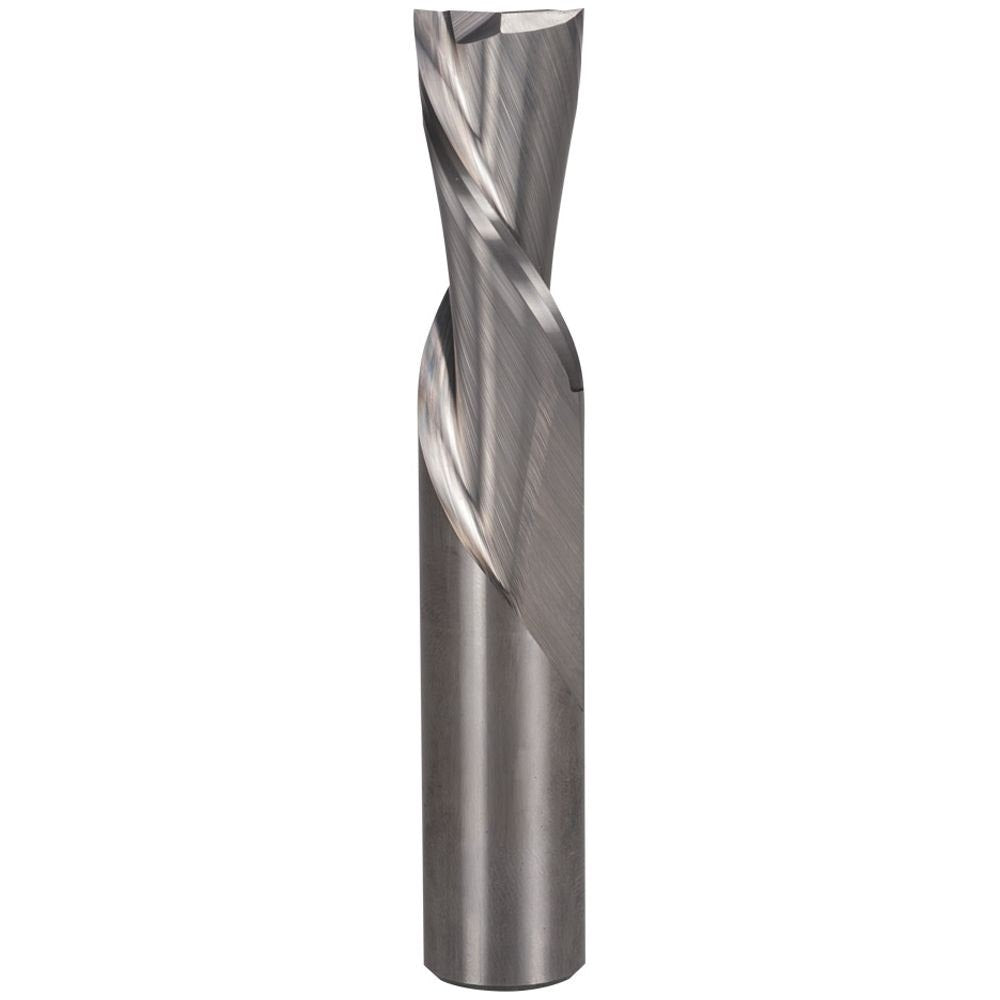

This is a Solid Carbide, Straight Down-Cut Finishing Spiral Router Bit for wood but can also be used on laminates and composites.
- For superior edge finish on hardwoods, softwoods, laminates, composites etc
- Down-cut drives the swarf downward and out of the cut
Specifications

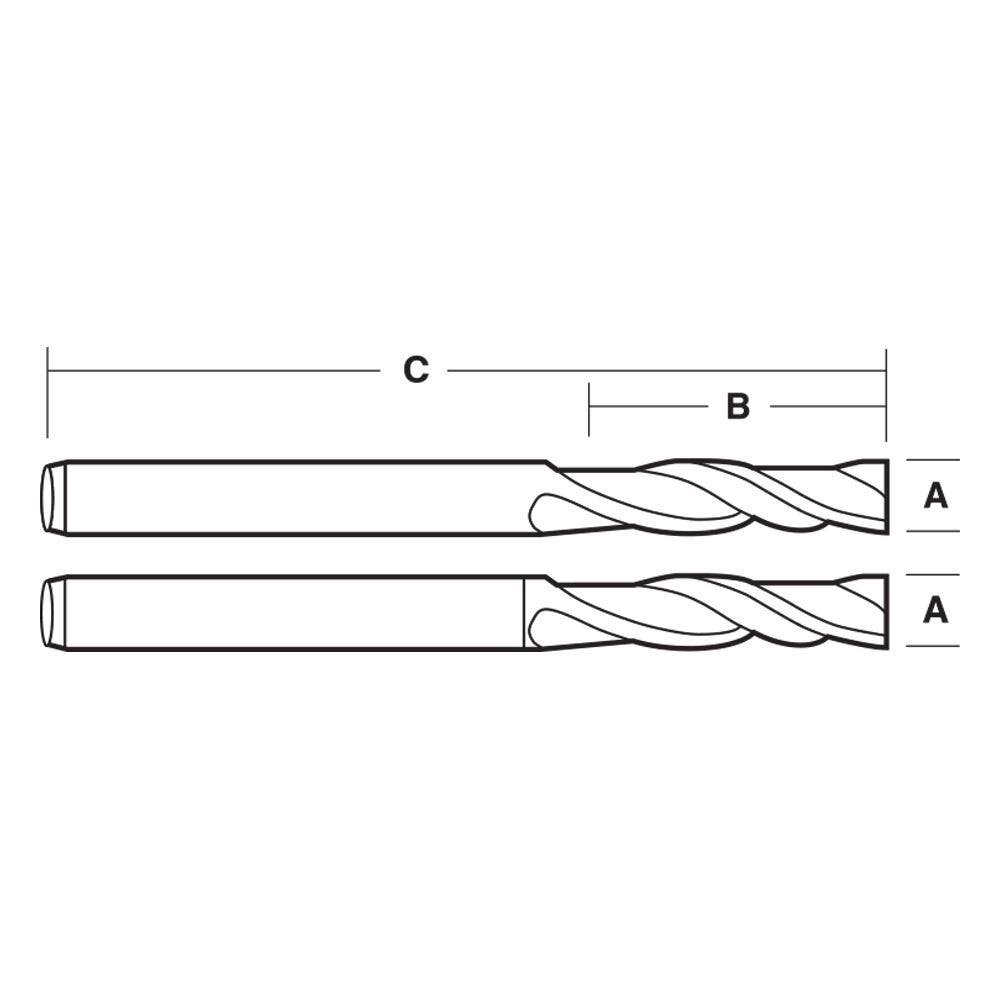

See specifications table and dimensional image (drawing) for details.
Safety Information
- Maximum RPM: 24,000
- Recommended PPE (Personal Protective Equipment):
- Safety Glasses
- Safety Gloves
- Hearing Protection
- Respiratory Protection
Specifications
- Brand: Carbitool
- Part No: TSLW 5
- Barcode: 9314350015340
- A: Cutting Diameter (mm) = 3.97
- B: Flute Length (mm) = 15.88
- C: Overall Length (mm) = 57.15
- SD: Shank Diameter (mm) = 6.35
- Cut Direction: Down
- No. Flutes: 2
