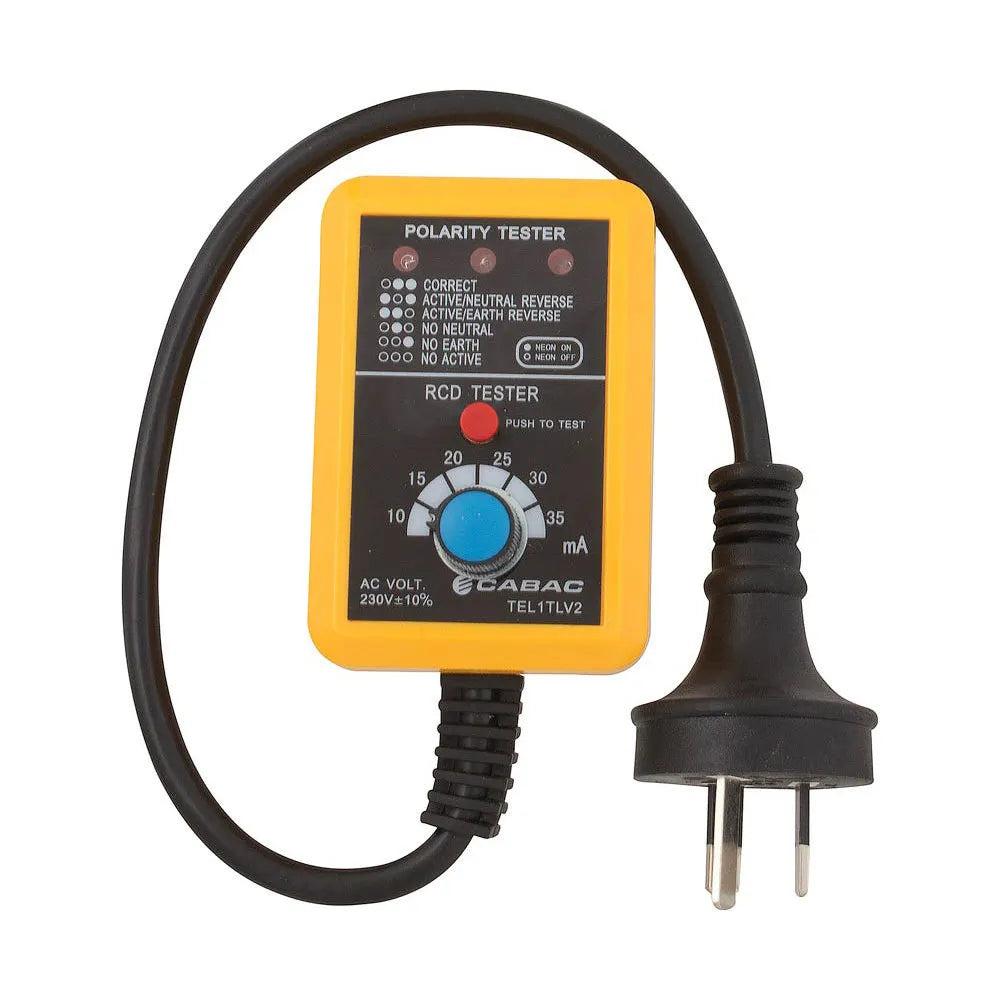

Cabac Socket Polarity Visual Tester - 230V

The Cabac Socket Polarity Visual Tester is an essential tool for electricians and DIY enthusiasts alike. This compact unit is designed to quickly and accurately test 230V Australian socket outlets for polarity, earth connections, wiring faults, and earth leakage circuit breakers. Its user-friendly interface makes it simple to operate, ensuring you can work with confidence and efficiency.

Key Features

• Socket polarity visual tester with clear indication
• Compatible with 230V 10A Australian socket outlets
• Integrated RCD trip tester with push button
• Live indication of socket outlet functionality
• Identifies active polarity compared to neutral and earth
• Compact and rugged design for durability
• Easy-to-read neon lights for quick assessments

Contents

• 1 x Cabac Socket Polarity Visual Tester
• Instruction Manual

Specifications

• Voltage Range: 230V ±10%
• Test Conditions:
  • Correct
  • Active/Neutral Reverse
  • Active/Earth Reverse
  • No Neutral
  • Live Earth
  • No Earth
  • No Active
• ELCB Test: 30mA Trip at 10, 15, 20, 25, 30, 35mA
• Quiescent Current: 1.75mA
• Part No: TEL1TLV2
• Barcode: 9318674939825
• Brand: Cabac

Usage Instructions

To use the Cabac Socket Polarity Visual Tester, simply plug the unit into the socket outlet. Compare the neon lights displayed on the front panel with the diagram provided on the instrument. This will help you determine the wiring condition of the power point. For testing an earth leakage circuit breaker (RCD), check the wiring first, then set the rotary switch to the mA range and press the test button to trip the RCD.

Conclusion

With its affordability and effectiveness, the Cabac Socket Polarity Visual Tester is a must-have tool for anyone working with electrical systems. Ensure the safety and reliability of your electrical installations with this invaluable device.
