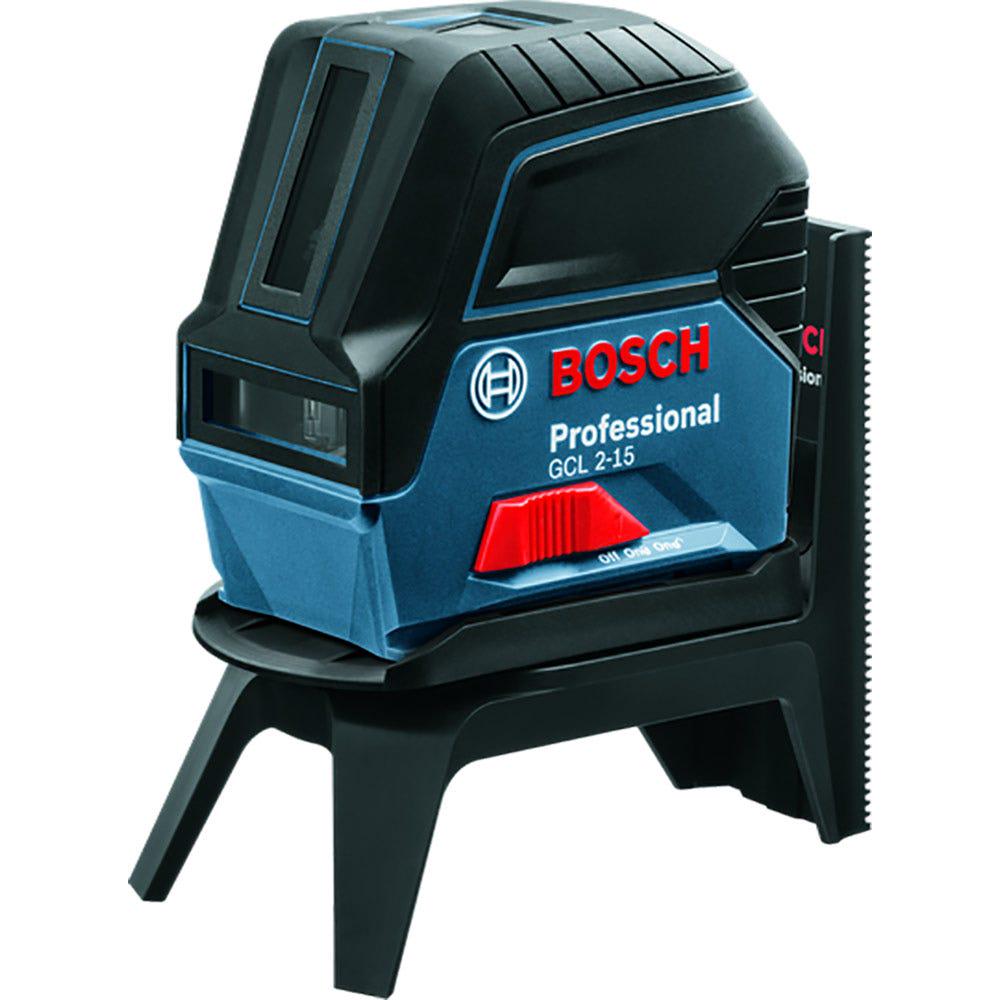

BOSCH Laser Measuring Red Crossline GCL215 0601066E02

Features

• Compact design ideal for short-distance levelling tasks
• Projects horizontal and vertical laser lines
• Two centred plumb points for precise transfer applications
• Easy alignment of laser lines with the rotating mount RM 1 Professional
• Working range of up to 15 m
• Self-levels in under 4 seconds
• Robust with IP54 dust and splash water protection
• Safe transportation with the pendulum lock-mechanism
• Suitable for various applications like mounting shelves and installing drainage pipes

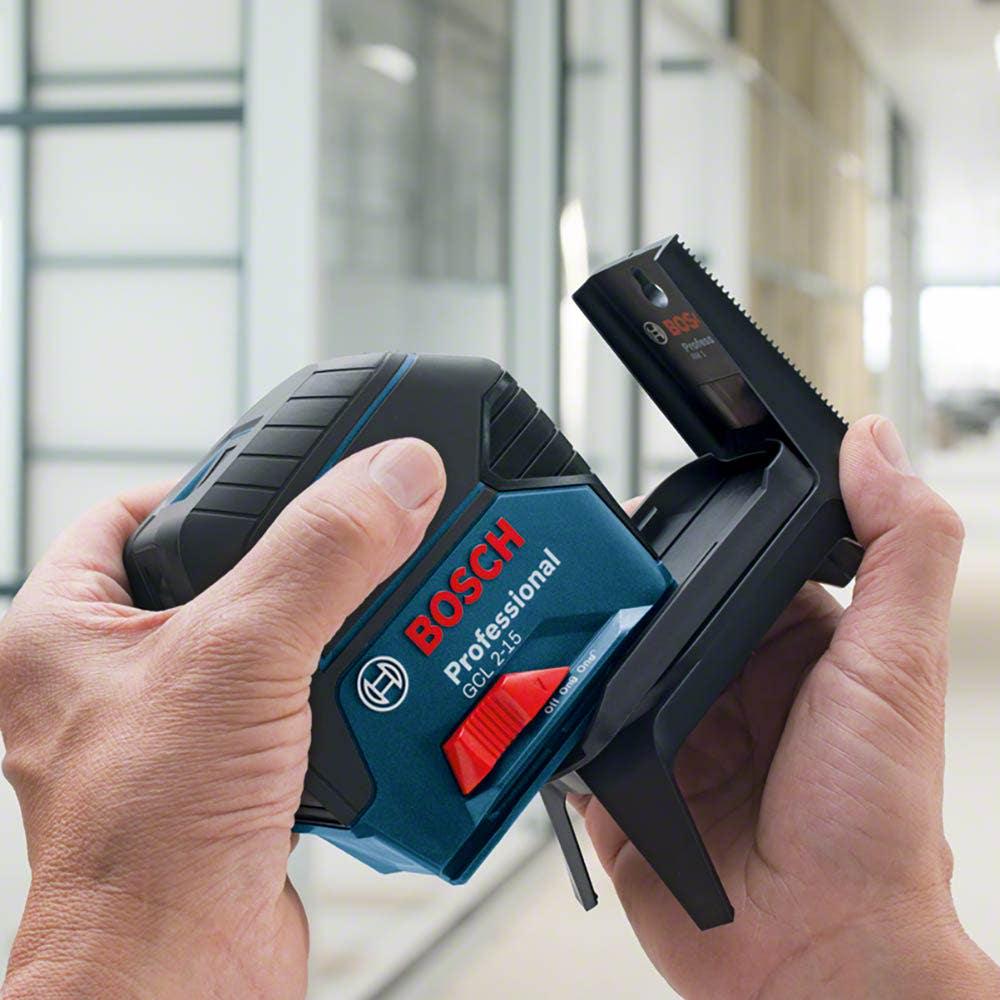

• Fast attachment with the RM 1 Professional via a simple slide mechanism

Specifications

• Laser diode: 630 - 650 nm
• Operating temperature: -10 to 50 °C
• Storage temperature: -20 to 70 °C
• Laser class: 2
• Accuracy: ± 0.3 mm/m* (*plus use-dependent deviation)
• Max working range of laser points: 10 m (top), 10 m (bottom)
• Self-levelling range: ± 4°
• Levelling time: 4 s
• Power supply: 3 x 1.5 V LR6 (AA)
• Operating time (max.): Up to 22 h in point mode
• Tripod thread: 1/4", 5/8"
• Weight: approx. 0.49 kg
• Colour of laser line: red
• Projection: 2 lines / 2 points
• Plumb point accuracy: ± 0.7 mm/m* (*plus use-dependent deviation)
