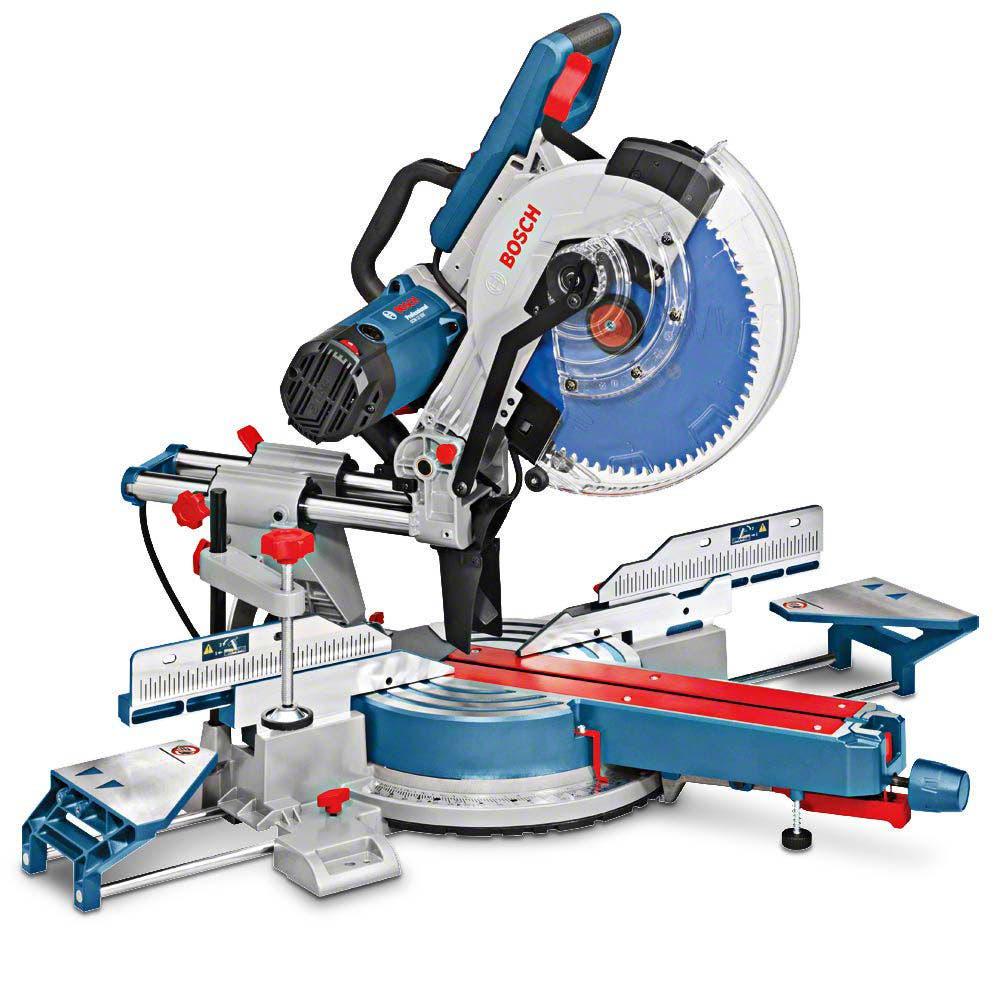

BOSCH 1800W 305mm Sliding Compound Mitre Saw GCM12SDE

Features

• High cutting capacity and variable speed for diverse applications
• Vertical cutting capacity of 120 mm
• Speed preselection of 3,100 to 4,000 rpm
• Intuitive bevel lock for easy adjustments
• Integrated table extensions for added material support
• Bevel setting of up to 47° on both sides
• SDS saw blade changes for quick blade replacement
• Easy saw blade changing process

Specifications

• Cutting capacity, 0°: 85 x 370 mm
• Cutting capacity 0° with spacer (max. vertical): 120 x 200 mm
• Cutting capacity 0° with spacer (max. horizontal): 70 x 400 mm
• Cutting capacity, 45° mitre: 85 x 250 mm
• Cutting capacity, 45° incline: 60 x 360 mm
• Mitre setting: 52° L / 60° R
• Bevel setting: 47° L / 47° R
• Tool dimensions (W x L x H): 860 x 600 x 530 mm
• No-load speed: 3,100 to 4,000 rpm
• Blade diameter: 305 mm
• Blade bore diameter: 30 mm
• Weight: 28.6 kg
• Rated input power: 1,800 W
• Sound pressure level: 92 dB(A)
• Sound power level: 105 dB(A)
• Vibration emission value ah: 2.5 m/s²
