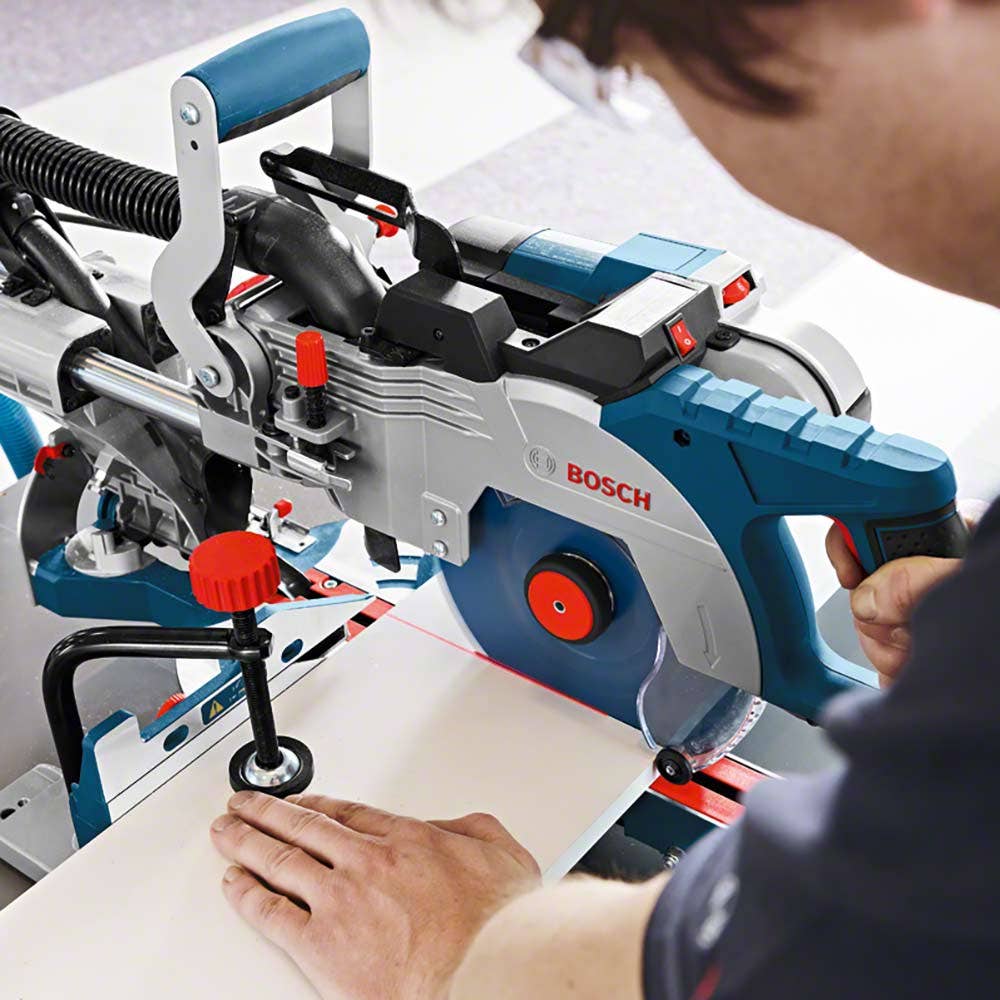

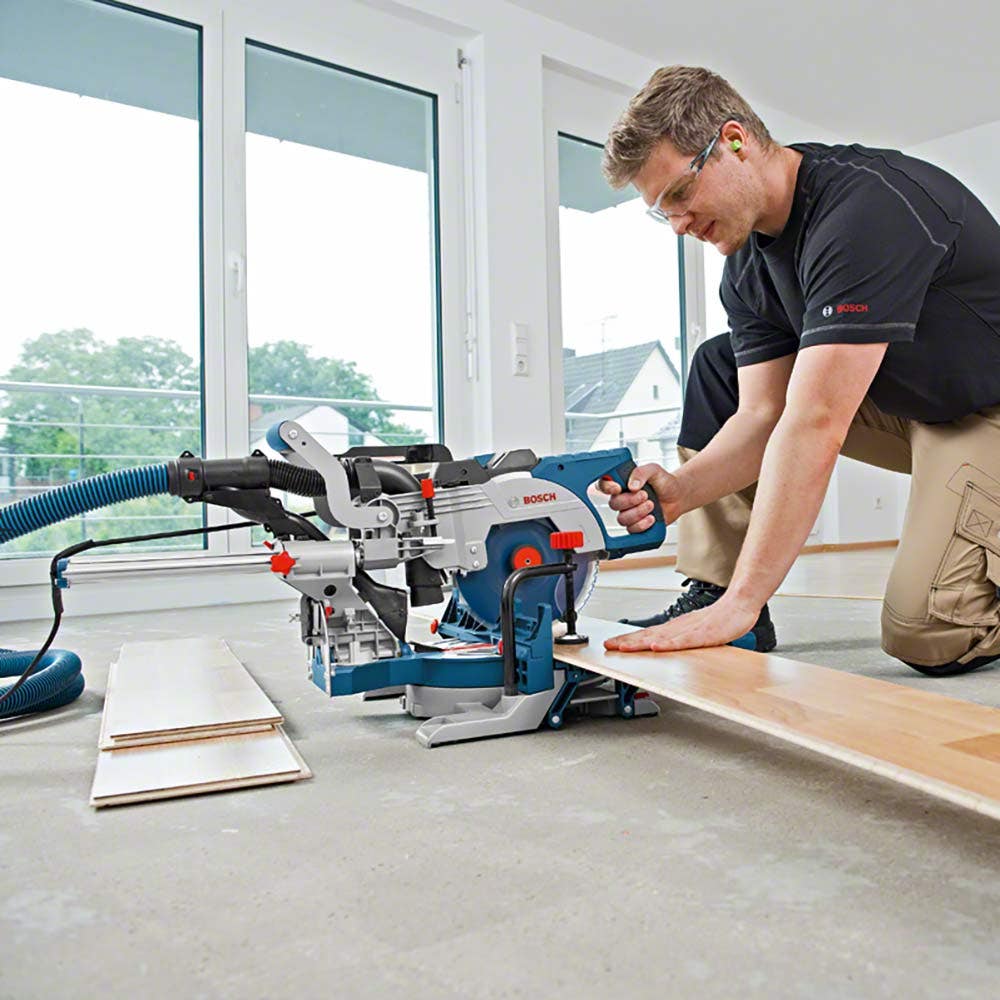

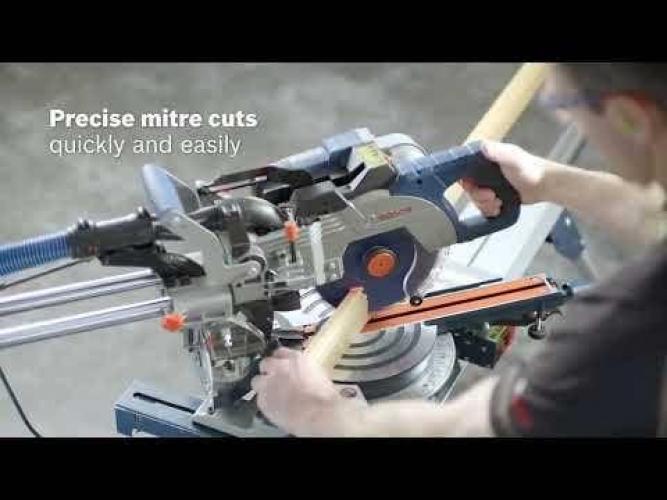

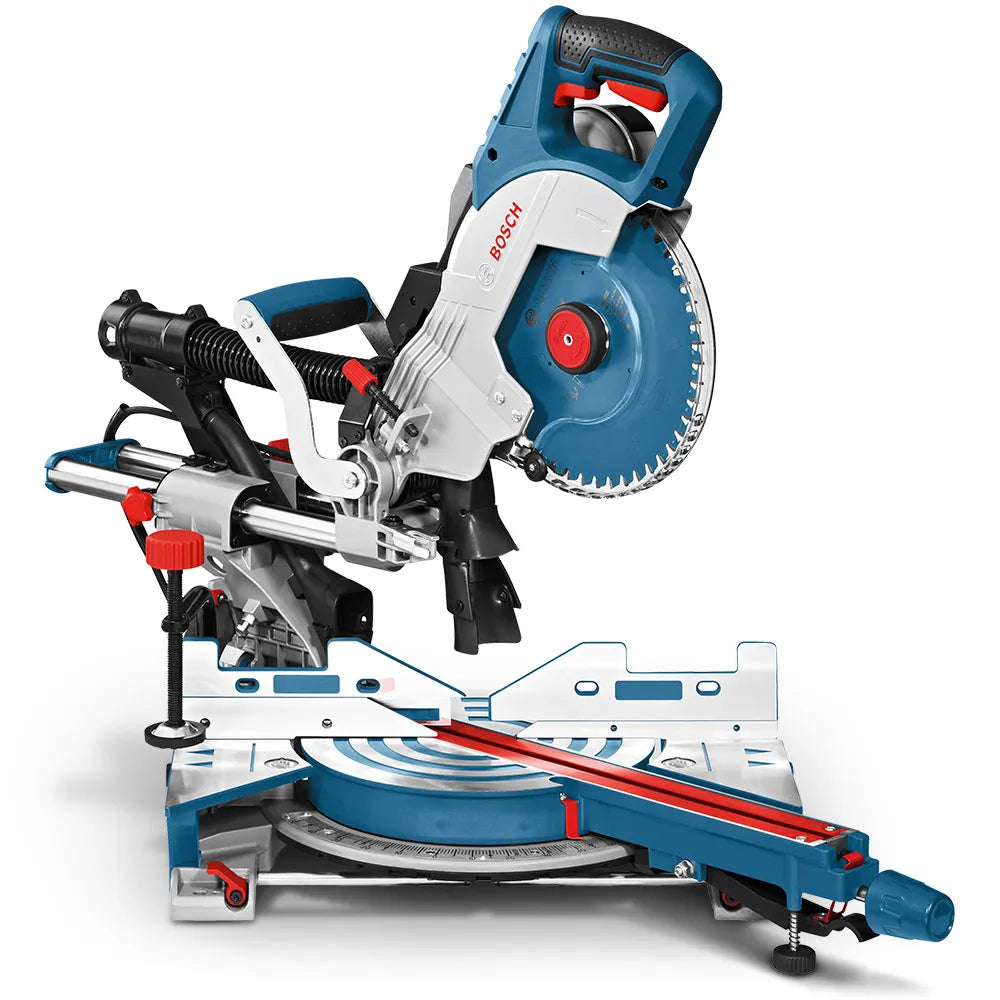

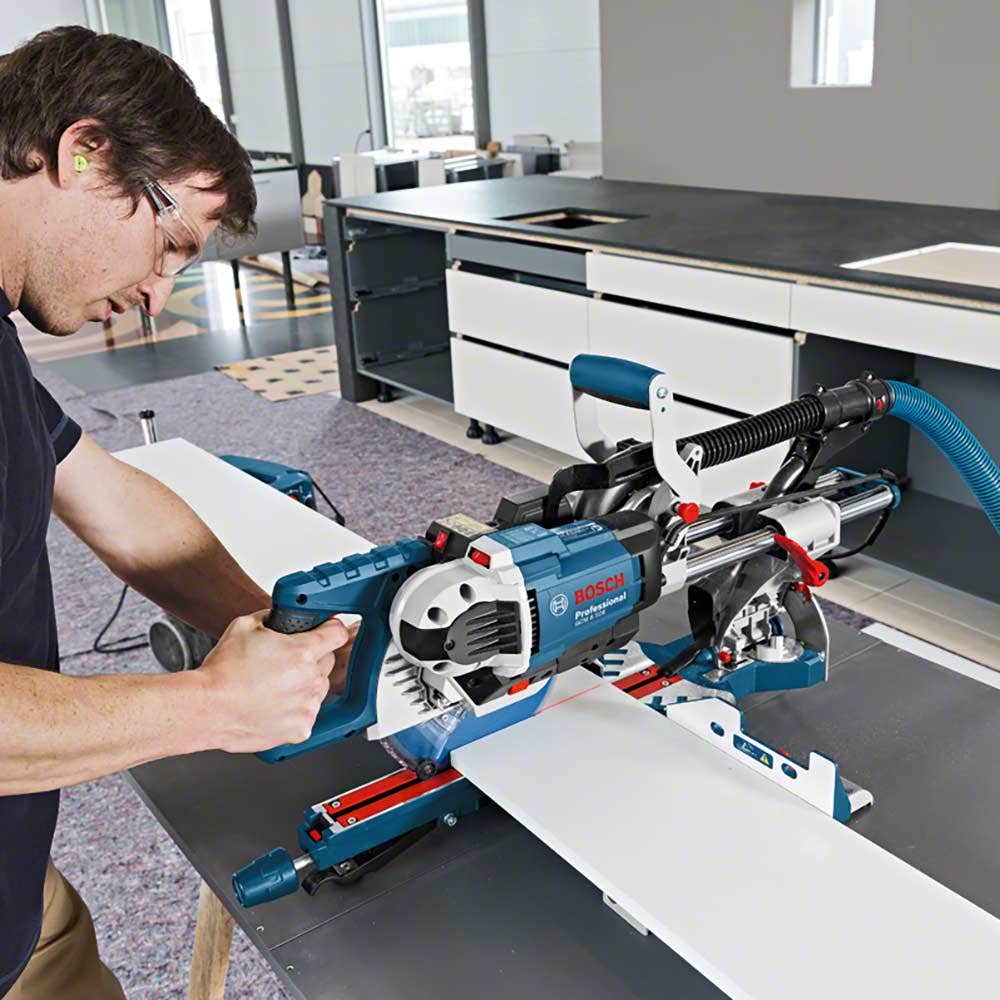

BOSCH 1600W 216mm Sliding Compound Mitre Saw GCM8SDE

Features

• Lightweight and compact design with a one-handed transport handle for easy mobility
• Variable cutting speed for versatility across different materials
• Quick, tool-less saw blade changes for user convenience
• Compatible with Bosch Click & Clean dust extraction system and various stands
• Intended for cross, mitre, bevel, and groove cuts in wood, aluminum, and plastic
• Includes 2-point dust extraction, precision laser, soft start, and double-sided tilt adjustment
• Mitre setting: 52° L / 60° R; Bevel setting: 47° L / 47° R

Specifications

• Cutting capacity, 0°: 70 x 312 mm
• Cutting capacity, 45° mitre: 70 x 225 mm
• Cutting capacity, 45° bevel: 45 x 312 mm
• No-load speed: 3,500 - 5,000 rpm
• Blade diameter: 216 mm
• Bore diameter: 30 mm
• Weight: 18.9 kg
• Rated input power: 1,600 W
• Packaging dimensions: 475 x 850 x 445 mm
• Sound pressure level: 98 dB(A)
• Sound power level: 108 dB(A)
